Highline

ID # 15498288

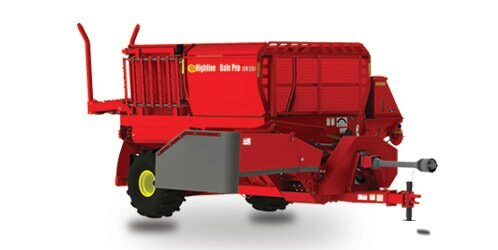

Highline Mfg. CFR1251 Bale Pro

Videos
Call for Price
Overview
Effectively Mix Forages without the cost of a TMR
Highline® takes precision ration delivery and flexibility to a higher level with the CFR 1251. This model represents the future utilizing dual chambers and independent settings allowing forage blending for optimal performance to achieve the highest economic benefit. Crop residues and hay are combined, chopped and mixed thoroughly with the grain portion to meet the animal’s requirements. Whether field or bunk feeding the CFR 1251 puts premium animal care in your hands.

The TMR MIXER that is not a TMR Mixer (with no extra mixing time).
The 1251 is a dual-chamber bale processor which offers many of the same benefits as a TMR Mixer. The 1251 provides the flexibility to process two bales at once, blending different types of forage into a healthy ration. With winter feed costs accounting for as much as 50% of total production costs, managing this variable can make or break the profitability of a cow/ calf operation. The ability to utilize lower quality forage, along with high quality forage maximizes the efficiency of a winter feeding program and is critical in extending feed supplies on years when good hay is in short supply. When equipped with the optional Grain Tank with MGITM and Feed ChopperTM, the CFR 1251 really is an all-purpose machine that rivals a TMR mixer in producing a mixed forage/grain ration. And, it does this with lower operational costs and less capital investment. The 1251 is also an excellent machine for bedding and that’s something that most TMR mixers can’t do. In many cattle operations the CFR 1251 may be a wiser investment than a TMR mixer.
  Features
CFR Capability - Expand your 1251 Bale Pro® into a CFR by adding the Grain Tank with MGI™

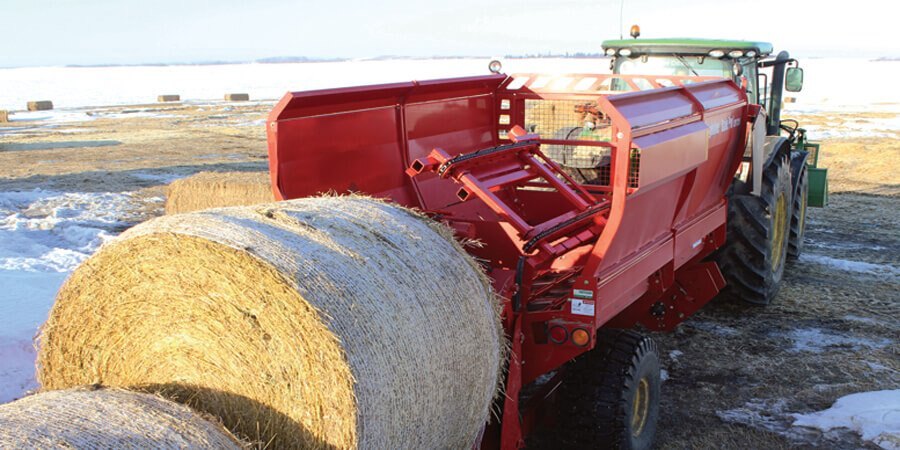

Retractable front bale loading conveyor allows the bale to gently shift to the front
Cameras Standard
Hydraulically Controlled Discharge Door
Adjustable Forks - easily adjust your fork width based on your requirements up to 6' (1.8 m)

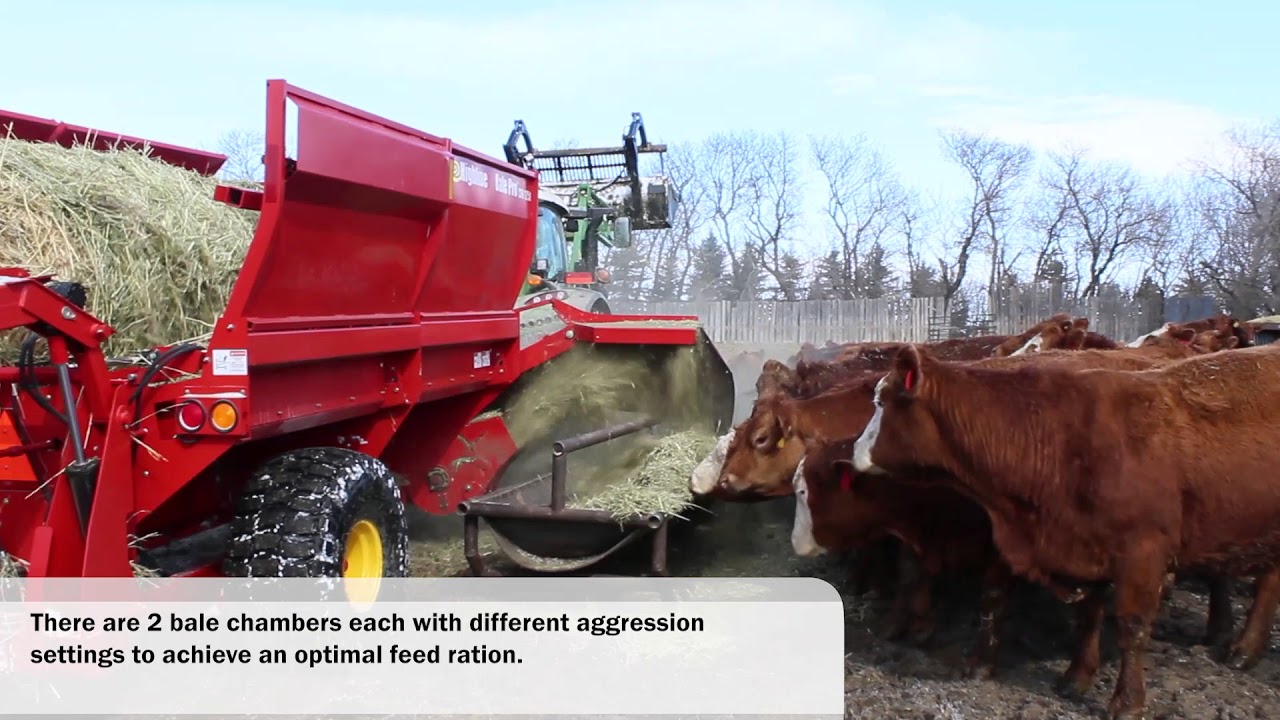

Independent aggression controls allows for blending of 2 forages at different rates.
The Slat & Chain Processing Chamber
Safety Chain Standard
Transport Lights Standard
The CFR 1251 maximizes your blended input ability; mixing the perfect balance of bales of varying quality with metered whole grain product; the result is optimized feed at a lower purchase point. Below are examples of how the CFR 1251 can positively affect your bottom line.

# Head Hay 100% Hay 50% Straw 50% Hay/Straw

Annual

        Blended Cost

Savings

200  $           30,000.00  $           15,000.00  $              6,750.00  $           21,750.00

 $          8,250.00

300  $           45,000.00  $           22,500.00  $           10,125.00  $           32,625.00

 $        12,375.00

400  $           60,000.00  $           30,000.00  $           13,500.00  $           43,500.00

 $        16,500.00

500  $           75,000.00  $           37,500.00  $           16,875.00  $           54,375.00

 $        20,625.00



Feed Hay Straw
Weight (lb) 1800 1200
Cost (c / lb)  $0.028  $0.013
Cost ($ / bale) 50 15
Feed lb/day 30
Feeding Days 180
  Specification

Specifications CFR 1251  CFR 1251 with Feed Chopper™ CFR 1251 with MGI™ CFR 1251 with Feed Chopper™ & MGI™
PTO Minimum Recommended  HP 120 (90 kw) 160 (119 kw) 120 (90 kw) 160 (119 kw)
PTO Recommended HP 135 (100 kw) 175 (130 kw) 135 (100 kw) 175 (130 kw)
Transport Width 123" (3124 mm) 123" (3124 mm) 140" (3556 mm) 140" (3556 mm)
Transport Height 116" (2946 mm) 116" (2946 mm) 116" (2946 mm) 116" (2946 mm)
Working Transport Height 116" (2946 mm) 116" (2946 mm) 116" (2946 mm) 116" (2946 mm)
Discharge *See Note Right Hand Right Hand Right Hand Right Hand
Hydraulics 2 or 3 Remote 2 or 3 Remote 2 or 3 Remote 2 or 3 Remote
Driveline Cat 6 1000 PTO -1 3/8" 21 Spline Cat 6 1000 PTO -1 3/8" 21 Spline Cat 6 1000 PTO -1 3/8" 21 Spline Cat 6 1000 PTO -1 3/8" 21 Spline
Weight 10343 lb (4,691 kg)* 10911 lb (4949 kg)* 11032 lb (5004 kg)* 11600 lbs (5262 kg)
Tongue Weight (Unloaded) 1662 lbs (754 kg)* 1987 lbs  (901 kg)* 1946 lbs (883 kg)* 2260 lbs (1025 kg)
Tires 21.5L x 16.1 21.5L x 16.1 21.5L x 16.1 21.5L x 16.1
Maximum Size of Bale 6' (1.8 m) 6' (1.8 m) 6' (1.8 m) 6' (1.8 m)
Rear Facing Lights Option Option Option Option
Discharge End Curtains Standard Standard Standard Standard
Rear View Cameras Standard Standard Standard Standard
Top Deflector & Rear Deflector Top deflector option Top deflector option Top deflector option Top deflector option
Safety Chain Standard Standard Standard Standard
Metered Grain Tank Capacity - - 30 bushels (1090 L) 30 bushels (1090 L)



Specifications
Model
CFR1251 Bale Pro
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
Highline Mfg
