Highline

ID # 15498285

Highline Mfg. CFR650 Bale Pro® TOP GUN®

Videos
Call for Price
Overview
Delivering Effective Coverage Solutions for Agriculture & Industry

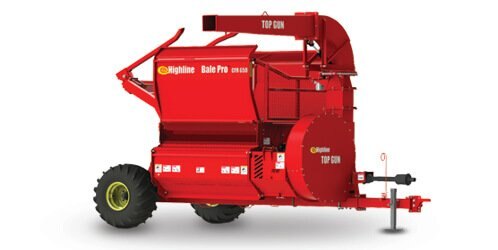

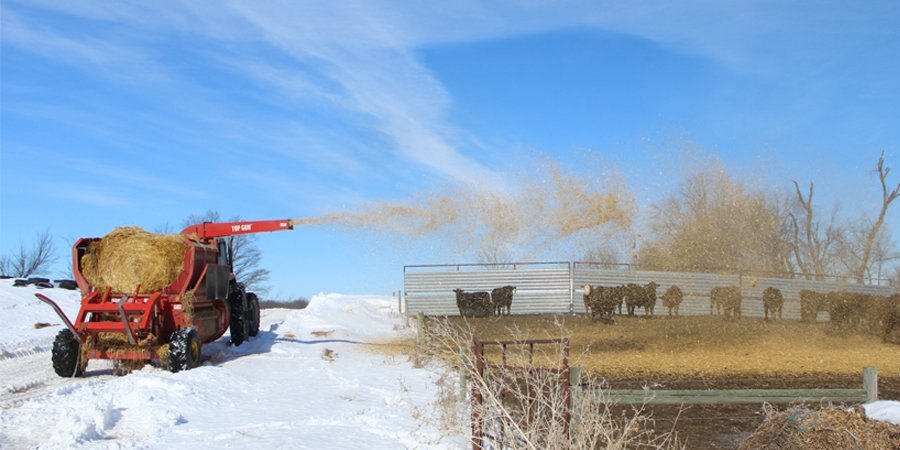

The Highline® CFR 650 TOP GUN® is a rugged, highly effective agricultural implement for bedding and feeding applications, as well as coverage solutions for construction. It provides uniform coverage as it throws material up to 80 feet (24.3 meters)*, or feeds by gently dropping a windrow from its side discharge.
Bed the Smart Way. Never Open a Gate Again.

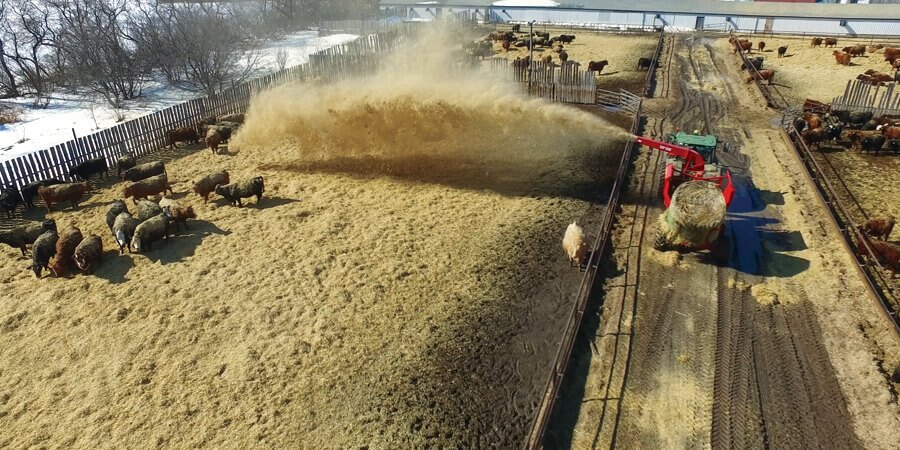

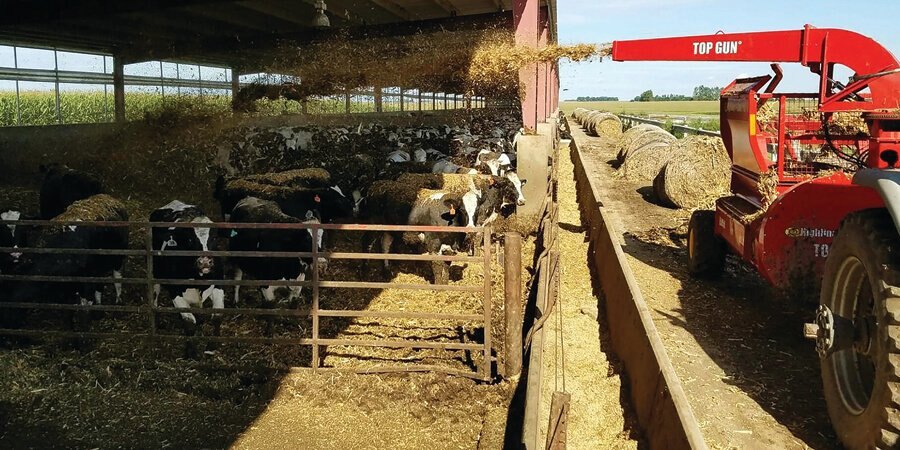

How many times has an open gate ended with chasing cattle back into the pen? Frustration, lost time and potentially dangerous situations are all something that producers want to avoid, and now can with the Highline® TOP GUN®. With the 11' high nozzle, the TOP GUN® can easily reach over the top of bunks and fences to blow straw into pens to bed cattle or use the optional hydraulic discharge door to feed into bunks.

The TOP GUN® makes feeding and bedding a quick and comfortable process for both the cattle and yourself.
Other Commercial and Industrial Applications.
The TOP GUN® is a valuable tool for a variety of applications such as: odor control for manure storage areas and landfills, temporary erosion control for sloped areas like newly seeded highway ditches, as well as soil remediation after forest fires and land reclamation in the oil and gas and mining industries. With the ability to shred and blow straw from large round bales, the TOP GUN® has far greater capacity than many of the commercial straw blowers on the market today.
(The CFR650 and CFR651 can also be used for industrial applications.)

  Features
Vertical Bale lift has the highest breakout force to easily remove frozen bales. Vertical lift also reduces “scrubbing” of the bale in the row. Standard adjustable forks allow you to lift bales from the smallest silage bales up to bales of 6 feet (1.8 m) from the row and load them into the processor.
Solid, continuous tube main frame to handle the loads.
Simple, robust design gives the fastest processing of feed and bedding.
Standard adjustable axles for stability.
Removing bale twine or netwrap is made easy with the patented TwineCutter.
Massive 51" fan blade and spout.
Expand your CFR with these options
  Specification

Specifications  CFR 650 TOP GUN®
PTO Minimum Recommended  HP 125 (93 kw)
PTO Recommended HP 160 (119 kw)
Transport Width 104 1/2" (2654 mm)
Transport Height 131  1/4" (3334 mm)
Discharge Left/Center/Right
Hydraulics 3 Remote
Driveline Cat 6 1000 PTO -1 3/8" 21 Spline
Weight 7246 lb (3278 kg)
Tires 16.5L x 16.1
Size of Bale (Diameter) 6' (1.8 m)
Safety Chain Standard



Specifications
Model
CFR650 Bale Pro® TOP GUN®
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
Highline Mfg
