Highline Mfg. Rock Picker NT78

  • Highline Mfg. Rock Picker NT78
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Anatomy of a Work Horse

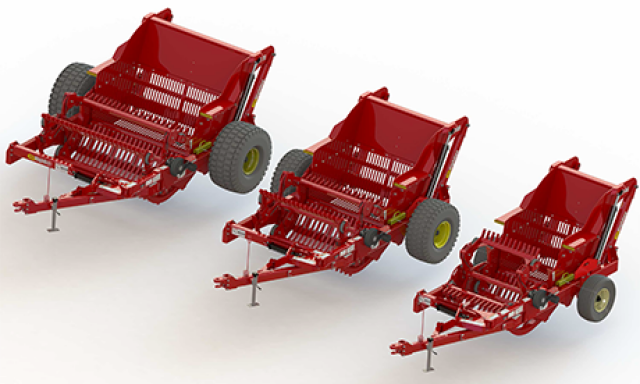

For over 20 years, the Highline Rock Picker has proven itself as a machine that delivers year in, year out. Designed with few moveable parts, as well as extremely durable components, the Highline Rock Picker remains rock solid. Highline offers the all new NT Rock Picker (available in 78", 60" and 44" sizes), an upgraded unit with a fresh focus on safety and design features that will make your life even easier when taking care of cleaning up your fields.

Highline is the only rock picker with the box frame construction. The front frame is built high to let rocks in yet ensure the structure is strong enough to withstand the most difficult rocks that are removed from the field.

The Highline Track and Reel Design

The benefits of the advanced track and reel design exclusive to the Highline Rock picker are:

  1. 1.Large, 8" diameter wheels follow the track which guides the reel arms parallel to the ground. This provides raking action in front of the apron rather than a momentary grab of dirt and rocks. With the raking action of the reel arms, there is time for dirt to settle out reducing the amount of soil that is loaded into the bucket.
  2. 2.The track and reel lifts rocks up in a near vertical path over the apron, sweeping rocks away while allowing dirt to drop back through the apron to the ground. The vertical section helps to separate dirt from the rocks.
  3. 3.Highline’s rock pickers push less dirt than conventional rock pickers because the guided reel collects and lifts the rocks. The conventional rock picker relies solely on the apron to push rocks and collect the combination of dirt and rock. Highline’s rock pickers are made to pick rocks and leave your soil in the field where it belongs.
 Features
Three Row Spike Drag Harrow   Three Row Spike Drag Harrow HITCH Redesign

Nt HitchThe Highline hitch moves the rock picker fully into view of the operator and out of the way of the tractor–even with duals. The hitch also advances the rock picker to a new level of operator convenience with a self-locking arm. The self-locking design doesn’t require any pins or wedges, when you get to the field the transport lock is opened, when going to back to transport the lock is automatic.
Three Row Spike Drag Harrow Three Row Spike Drag Harrow The Highline Raking Reel

Dump LocksTo ensure rocks are firmly picked out of the soil and placed into the bucket, a raking reel is a must. Without a reel and track system, rocks will sling shot past the bucket wasting time back tracking to pick rocks up a second time. Only Highline rock pickers come standard equipped with the advanced track and reel system making a tough job as gentle as possible on the equipment.
Three Row Spike Drag Harrow Three Row Spike Drag Harrow HI-LIFT Design

Hi Lift DesignThe Hi-Lift design feature provides options for operators to get rocks out of the way or off the field. The Hi-Lift minimizes wasted space from low flat rock piles by allowing taller more compact piles to be made. Or, rocks can be transferred directly to a truck for removal. For fast and convenient rock removal, Highline rock pickers (NT78, NT60 and NT44) have a standard dumping height of 84".
Specifications
Model
Rock Picker NT78
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Highline Mfg
Weight
7500 lbs. (3400 kg)
Picking Width:
78 in. (2.0 m)
Tongue Weight:
750 lbs. (340 kg)
Bucket Capacity:
3.35 cu. yd.
Dumping Height:
84 in. (2.1 m)
Tire Size:
21.5L-16.1
Required Horsepower:
90-150
Picking Style:
Reel
Number Of Bats:
3
Minimum Rock Diameter II:
2''
Maximum Rock Diameter II:
24''
Frame:
6'' x 4'' x ¼'' Rectangular Tubing
Replaceable Tynes:
Main Apron Tynes are replacable to allow for high acre usage.
Hard Surfacing:
Reel Arm Teeth and Apron Tynes (Standard)
Lift Cylinder:
3.5'' x 34''
