ID # 28706249

Highfield Patrol 500

  • Highfield Patrol 500
  • Video Button Maxresdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Whether you work hard or play hard

When safety, durability, and reliability really matter

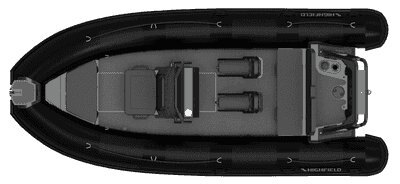

Patrol 500

Ideal for both family distance cruising and commercial or club use, including teaching, charter and harbor work. The Patrol 500 & 540 really are perfect all-rounders – quick, dry and economical.  With their super deep V, wide chines, and large diameter tubes, the Patrol series offers high maneuverability, high safety, and a soft dry ride even in the roughest conditions. They’re designed to carry large loads and plane quickly and easily with modest horsepower. For charter boat and commercial opera- tors, the modular set-up option means that we can build a layout that suits your requirements. The Patrol 500 is rated for 10 persons and 100hp.  When safety, toughness, and reliability really matter, the Patrol range should be at the top of your list of boats to consider.
Specifications
Model
Patrol 500
Category Name
Boat
Year
2021
Sale Type
New
Manufacturer
Highfield
Dead Rise
24 deg
Fuel Tank
90L / 23.7gal
Engine Shaft
Long
Maximum Load
1051 kg / 2317 lbs
Maximum Power
100 hp
Overall Width
2.28 m // 7'6"
Tube Diameter
52 cm / 20.5"
Internal Width
1.20 m / 3'11"
Maximum People
10
Overall Length
5.00 m / 16'5"
Design Category
C
Internal Length
4.16 m / 13'8"
Additional Notes
US boats have mandatory EPA fuel systems which reduces the published fuel capacity by 20-25% depending on the static filing level of the boat.
Boat Only Weight
441 kg / 972 lbs
Recommended Power
90 hp
Number Of Air Chambers
6
standard features

ORCA® Hypalon tube fabric – Flush mount non-return valves – High tensile chromated & powder coated aluminum hull – Integrated transom supports – Self-draining deck – Integrated under-deck fuel tank – Integrated rear seat with cushion – Engine well – Stand-up console – Bolster seat – Bow locker with seat cushion – Lifting points and towing eyes – Anti-slip deck – Heavy duty rub strake – Full length keel guard – Highfield dry bag – Foot pump, paddles, repair kit – Leaning post

color options
https://www.highfieldnorthamerica.com/static/dc6e683464fb65ed605d89b887066300/fa2b5/6.PA500-OR.2-1.jpg
https://www.highfieldnorthamerica.com/static/c12cfa7db31ba77d9b06b636be50e000/de23e/6.PA500-LG.2.jpg
https://www.highfieldnorthamerica.com/static/dc6e683464fb65ed605d89b887066300/fa2b5/6.PA500-OR.2.jpg
https://www.highfieldnorthamerica.com/static/331fd7c25379650147137e0ac97c6cfc/de23e/6.PA500-DG.2-1.jpg
https://www.highfieldnorthamerica.com/static/6d54440412b67bda5d19da25fc9bbbda/c4cb3/5.PA500-BL.2.jpg
literture
Download Brochure                                                                                                     Download
GA Drawing Download
GA Drawing Console                                                                                                     Download
Chock Drawing Download
Owners Manual                                                                                                              Download
Performance Report Download



features

Features

The Patrol 500 has more features and options than other RIBs in its Class.
Highfield Patrol 500Open layout with room for extra passengers to sit on the tubes
Highfield Patrol 500Upright console option with double seat or single set jockey style
Highfield Patrol 500Bow Locker for gear in front
Highfield Patrol 500Rear arch with upright console option
Highfield Patrol 500Bow seat with grab lines for passangers
Highfield Patrol 500Upright console with large windscreen and grab rail
Highfield Patrol 500Bow step with anchor roller and heavy duty cleat
Highfield Patrol 500Large heavy duty tubes with double rubrail
