ID # 15511407

Hardi N-SERIES

  • Hardi N SERIES
  • Hardi N SERIES
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Proven design and quality

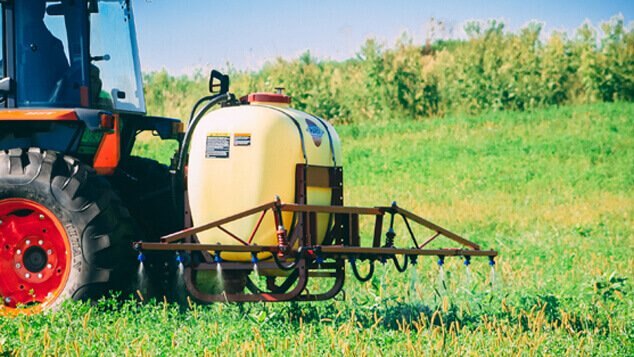

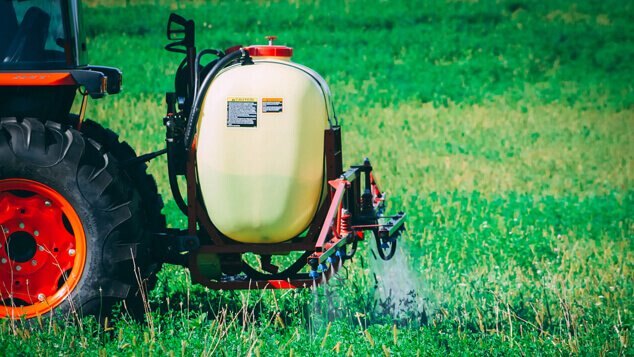

The HARDI N-SERIES sprayer is one of the most versatile sprayers ever built. The N-SERIES is used by professional plant growers all over the world. It finds its use in traditional farming, horticulture, orchards, vineyards and on grasslands.

The N-SERIES is a durable and well proven sprayer that offers far more features and options than you would expect from a sprayer in this class.
Break-away

All booms have an adjustable spring loaded break-away to protect the boom in case of accidental encounter with an obstacle in the field.





No dripping from nozzles

The single SNAP-FIT nozzle holders have a built-in non-drip diaphragm check valve. The non-drip valve ensures no dripping from the nozzles when the main on/off is closed. The SNAP-FIT system furthermore ensures that all nozzles are in the correct position. A large range of high quality HARDI nozzles is available to suit any spray task.



SB boom

The  SB booms are directly mounted to the frame. A mechanical and hydraulic boom lift makes the height adjustment easy and safe.



MB boom

The 40 ft. MB boom features a trapeze suspension for self-stabilisation and prolonged boom life. On the SB booms they trapeze suspension is an optional.


  specifications

Tank size, gal Boom model Width Pump model Pump capacity Size, L x W x H Weight
105 (400 ltrs) SB 14 ft. (4 m) 603 / 1203 / 1303 10/20/30 gpm (42/99/114 l/min) 55x75x80 in. (140 x 190 x 170 cm) 320 lbs (145 kg)
105 (400 ltrs) SB 20 ft. (6 m) 603 / 1203 / 1303 10/20/30 gpm (42/99/114 l/min) 55x75x80 in. (140 x 190 x 170 cm) 331 lbs (150 kg)
105 (400 ltrs) SB 26 ft. (8 m) 603 / 1203 / 1303 10/20/30 gpm (42/99/114 l/min) 55x75x83 in. (140x190x210 cm) 334 lbs (151.5 kg)
155 (600 ltrs) SB 14 ft. (4 m) 603 / 1203 / 1303 10/20/30 gpm (42/99/114 l/min) 55x75x80 in. (140 x 190 x 170 cm) 350 lbs (159 kg)
155 (600 ltrs) SB 20 ft. (6 m) 603 / 1203 / 1303 10/20/30 gpm (42/99/114 l/min) 55x75x80 in. (140 x 190 x 170 cm) 362 lbs (164 kg)
155 (600 ltrs) SB 26 ft. (8 m) 603 / 1203 / 1303 10/20/30 gpm (42/99/114 l/min) 55x75x83 in. (140x190x210 cm)   375 lbs (170 kg)
155 (600 ltrs) SB 33 ft. (10 m) 1203 / 1303 20/30 gpm (99/114 l/min) 55x75x83 in. (140x190x210 cm) 415 lbs (188 kg)
155 (600 ltrs) MB 40 ft. (12 m) 1203 / 1303 20/30 gpm (99/114 l/min) 59x82x87 in. (140x190x220 cm) 520 lbs (235 kg)
210 (800 ltrs) SB 14 ft. (4 m) 603 / 1203 / 1303 10/20/30 gpm (42/99/114 l/min) 55x75x80 in. (140 x 190 x 170 cm) 390 lbs (177 kg)
210 (800 ltrs) SB 20 ft. (6 m) 603 / 1203 / 1303 10/20/30 gpm (42/99/114 l/min) 55x75x80 in. (140 x 190 x 170 cm) 400 (181 kg)
210 (800 ltrs) SB 26 ft. (8 m) 603 / 1203 / 1303 10/20/30 gpm (42/99/114 l/min) 55x75x83 in. (140x190x210 cm) 419 (190 kg)
210 (800 ltrs) SB 33 ft. (10 m) 1203 / 1303 20/30 gpm (99/114 l/min) 55x75x83 in. (140x190x210 cm) 459 (208 kg)
210 (800 ltrs) MB 40 ft. (12 m) 1203 / 1303 20/30 gpm (99/114 l/min) 59x82x87 in. (140x190x220 cm) 576 (261 kg)



Specifications
Model
N-SERIES
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
Hardi
