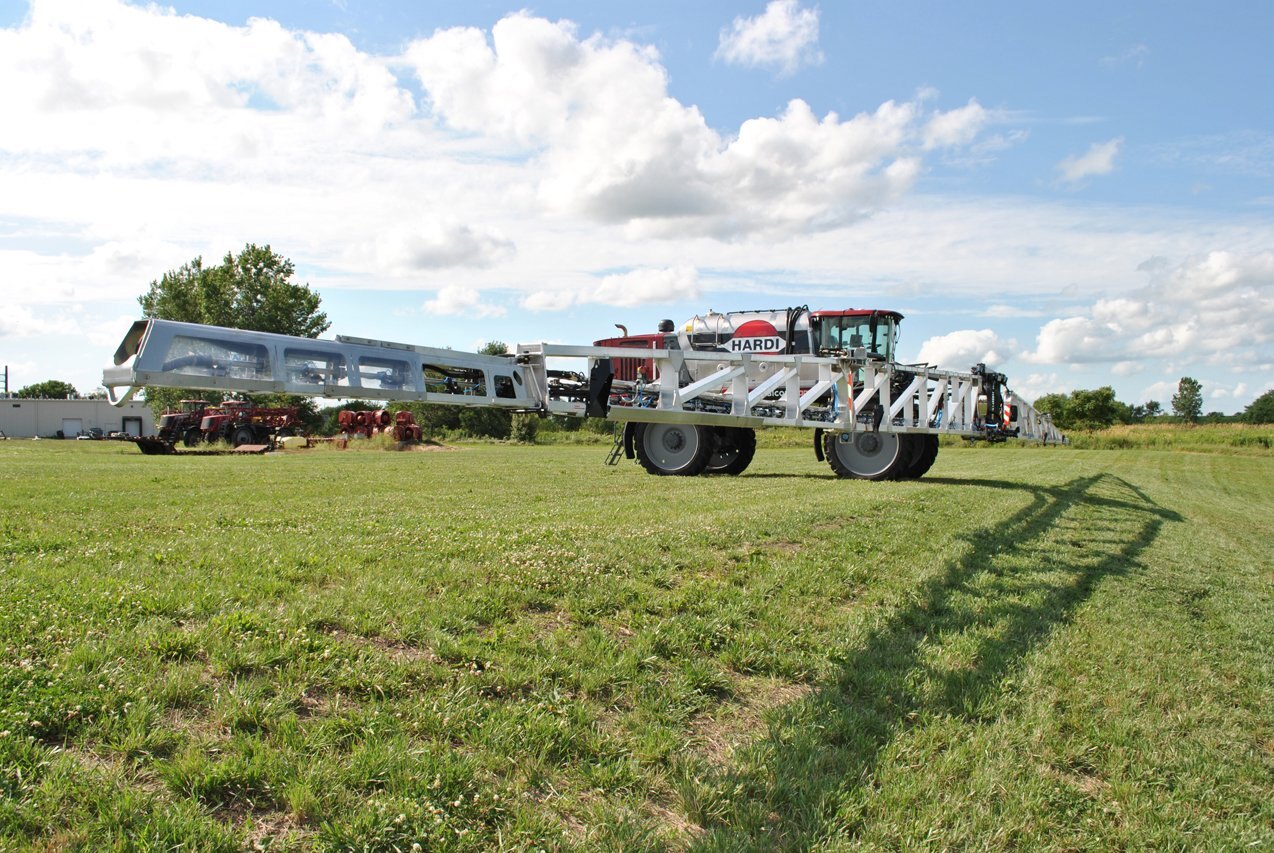

Hardi Rubicon

  • Hardi Rubicon
  • Hardi Rubicon
  • Hardi Rubicon
  • Hardi Rubicon
  • Hardi Rubicon
  • Hardi Rubicon
  • Hardi Rubicon
  • Hardi Rubicon

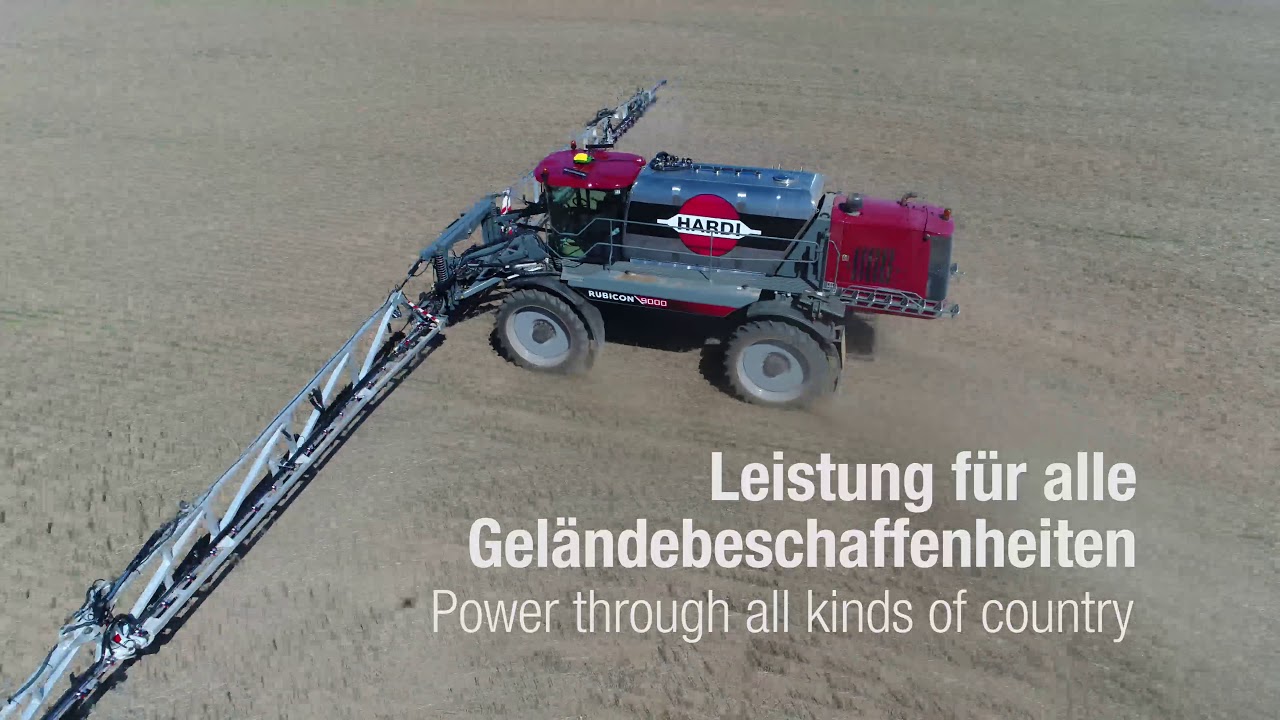

  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

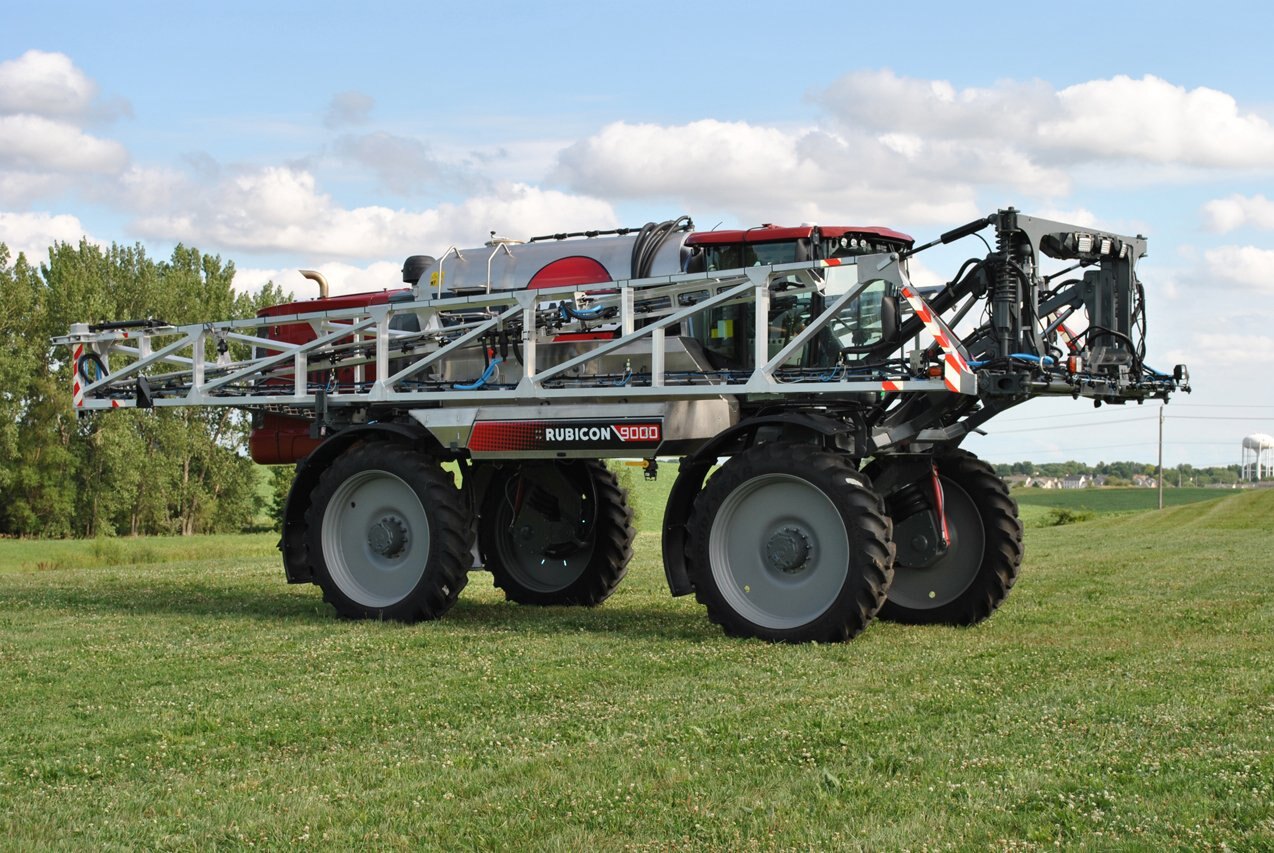

RUBICON – Innovation and evolution

 The RUBICON establishes a new class in self-propelled sprayers, designed to meet the productivity demands of large scale farmers. The seamless integration of capacity and ease of operation delivers acre eating performance to conquer everyday spraying tasks with ease and ahead of time.

The RUBICON 9000 will take productivity and ease of operation to a whole new level. Increased tank capacity will not only improve productivity, but will improve the timeliness of applications. When timing one of the most critical factors, why waste it filling when you can keep spraying? Capacity keeps you spraying for longer, by reducing travelling and filling down time. When timing is everything – don’t waste time filling.
 RUBICON Features

Over 2,400 Acres Per Day

Likewise by increasing the boom width you improve the work rate, which is what matters most when timing is all important.  A 150 ft boom width represents a 25% increase in work rate over a comparable 120 ft boom.  RUBICON with a 150 ft boom at 20mph can deliver a work rate of 309 acres per hour, or 2,781 acres per day.
Engine Power

RUBICON is powered by Cummins - the most advanced engine technology to deliver power and reliability when you need it.  Cummins engines run quieter, burn leaner and cleaner, and they are the industry leader in providing power to hydrostatic transmissions.  The Cummins QSL 9 Tier 4F engine delivers up to 380 HP (276kW)  and features fully Integrated Electronic Controls, providing seamless integration of all components to optimize engine performance.

RUBICON FEATURE VIEW 1060x596 A Commanding View

A better view of the boom from the cab not only contributes to comfort, but to the quality of the productivity.  The operator has a commanding view over the boom from the driver’s seat which makes spraying easier and safer.  The RUBICON cab is a special workplace and every detail counts: including the synchronised movement of the arm rest console to provide improved ergonomics, to unsurpassed visibility of the boom, clean air and responsible sound and vibration levels. With superior comfort and the best view in the business, RUBICON makes spraying enjoyable and efficient.

7f110ccb1bb446b797c8ae3efdfba6b7 F14008 Boom Centre


RUBICON redefines boom stability: Revolutionary boom suspension system allows independent stiffness control settings on the springs and rams fixed to either side of the centre frame.  The boom remains stable under the harshest operating conditions. The wide centre frame provides excellent on-road visibility. Spring tension holds the centre frame in the middle position while the hydraulic damper absorbs energy from the boom movement. A hydraulic actuator operated from the cab exerts more or less pressure on the spring to change the resistance.
Chassis
OverRide suspension

OverRide Suspension is designed for heavy duty applications, for greater load carrying capacity and for incredibly smooth running.

The suspension is fully independent, is integrated into each wheel console, and moves in and out with the wheel track width.

Heavy duty shocks absorb impulses from the suspension to improve the performance and ride.

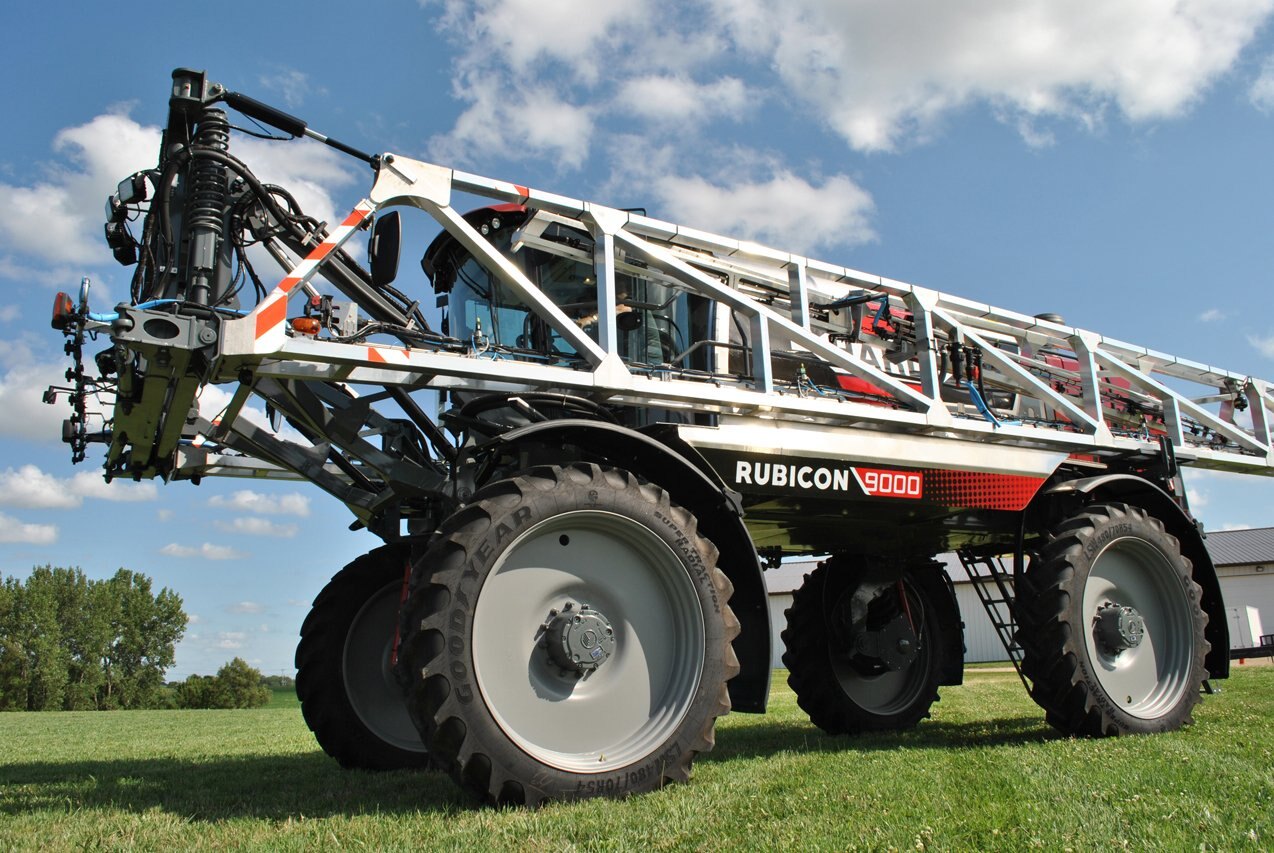

High clearance

The RUBICON provides a high 6 ft. clearance in a clean and unobstructed under-body. This high clearance with its stream-lined design prevents damage to tall crops when performing late season application.

Comfort is important to the operator who has to spend long hours behind the wheel. RUBICON’s large tires and triple support airbag suspension combination is the key to its superb ride and driver comfort, which is paramount to keeping fatigue at bay. The high clearance chasis also has available the All-Wheel Steering option to prevent addition crop damage on headlands when turning.

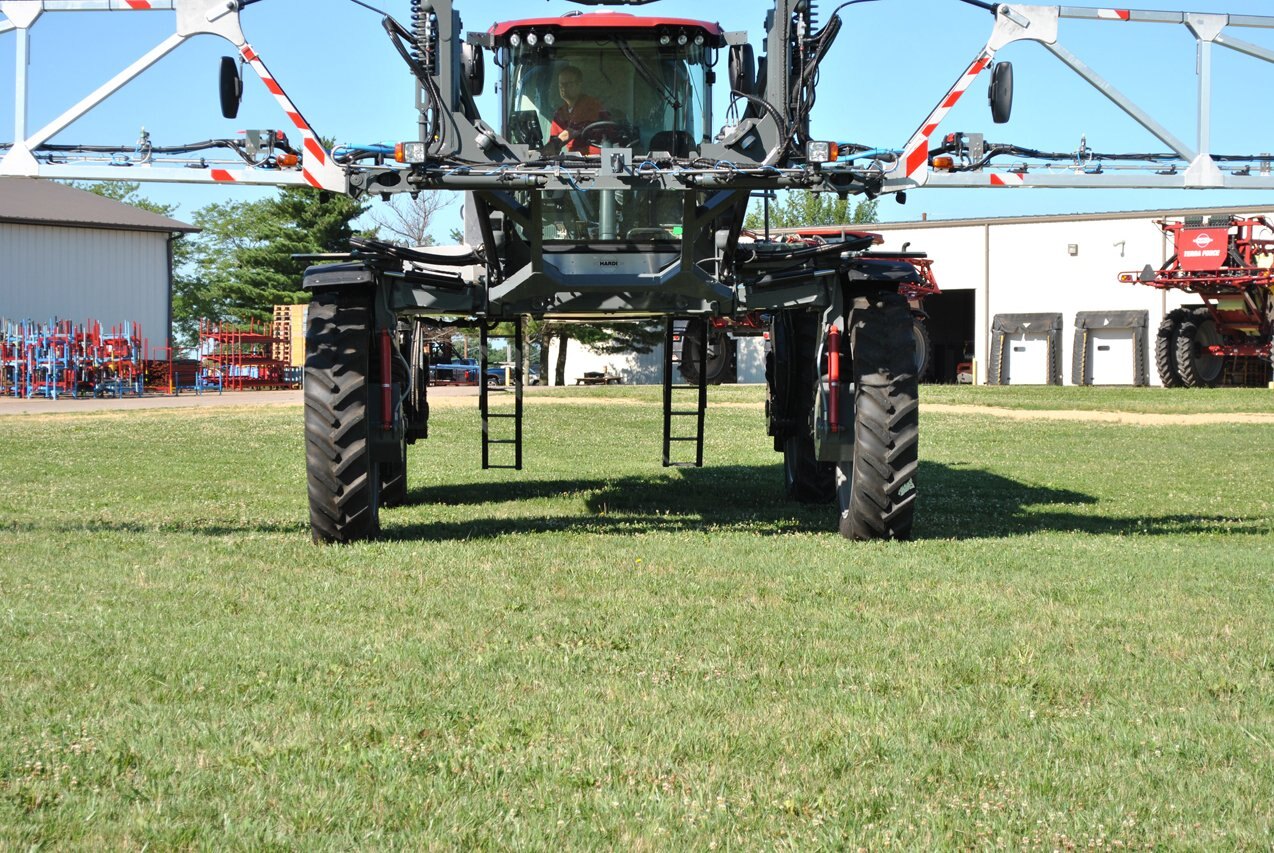

Track width adjustment

The RUBICON axle track width can be infinitely adjusted, on-the-run, from 118 in. to 157 in. providing the ultimate flexibility for different applications and improved productivity.

   - On road transport and spraying
   - To suit varying field conditions
   - To match the track width of other machinery
   - Set up for control traffic farming
   - To match row crop row spacing

The OverRide suspension is integrated into each wheel console and moves in and out with the wheel track width. Externally accessed PUKS are easily adjusted to take up play that may develop over time through changing the axle track.


Steering

The RUBICON has a powerful load sensing hydraulic steering system which controls two large phasing cylinders, and is ideally suited to challenging operating conditions. The steering is precise, smooth and quiet with no vibration which makes spraying easy, safe and reduces operator fatigue.
Main tank / Rinse tank

2200 gallon baffled stainless steel tank is integrated into the RUBICON chassis and is designed for capacity spraying
Baffles not only enhance the integrity of the tank structure but improve the handling and directional stability of the sprayer. Suppressing the magnitudes of fluid slosh by controlling its flow and movement improves braking performance and yaw stability, making spraying comfortable and safe.

Three rotational tank rinse nozzles are fitted standard and provide consistent tank flushing. A deep sump running the full length of the tank ensures total draining, easy cleaning and minimal residue.

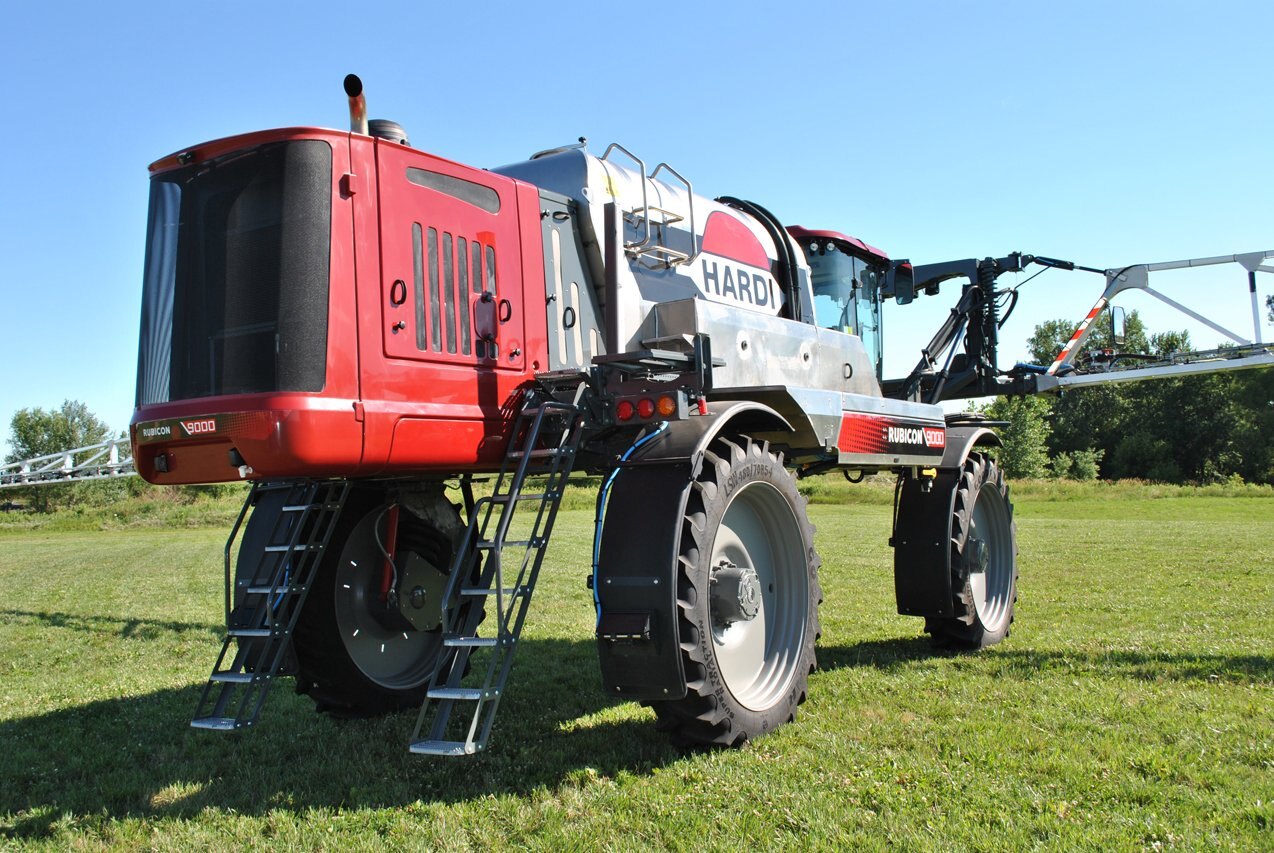

There is a sturdy ladder on the right hand side of the Main Tank which allows easy access to the lid.

RUBICON’s 265 gal. Diesel tank provides enough fuel for a whole day or night of spraying.
Engine / transmission
4WD Hydrostatic transmission

RUBICON 4WD hydrostatic transmission is the latest intelligent self-propelled sprayer drive management system from Danfoss, which delivers highest level of performance with reduced fuel consumption, and high operator comfort

A Danfoss 250 cc variable displacement axial piston pump minimises control and charge pump losses to maximise available engine power. In addition the Danfoss H1 bent axis axial piston wheel motors are variable displacement and offer significant overall efficiency gains.

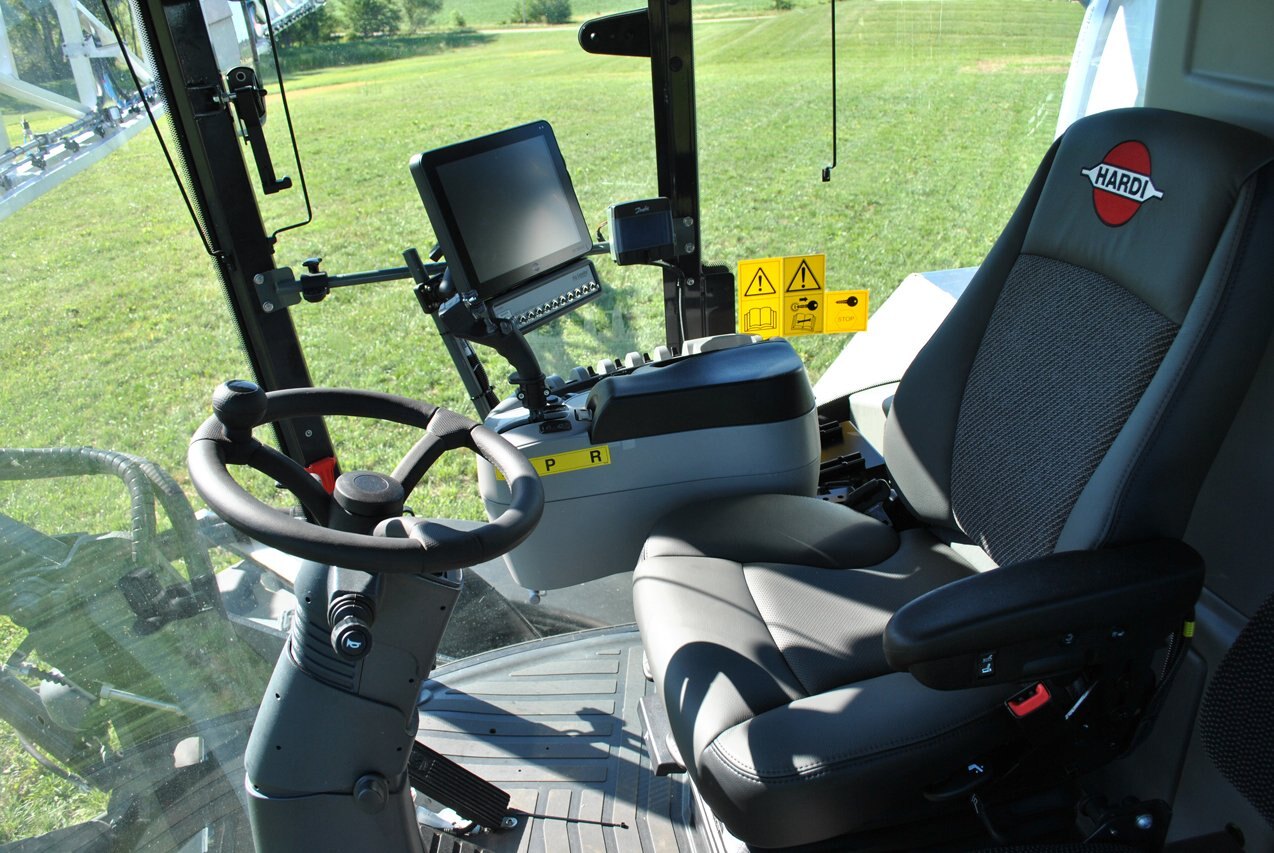

Cabin

A better view of the boom from the cab not only contributes to the comfort but to the quality of the productivity The operator has a commanding view over the boom from the driver’s seat which makes spraying easier and safer.

The RUBICON cab is a special workplace and every detail counts: including the synchronized movement of the arm rest console to provide improved ergonomics, to unsurpassed visibility of the boom, clean air and responsible sound and vibration levels.

With superior comfort and the best view in the business, RUBICON makes spraying enjoyable and efficient.


HC 9600

The HARDI HC 9600 control center can be used to display up to five precision farming functions simultaneously in a range of layouts and user interfaces. No other terminal currently offers this versatility! It is also one of the first to feature a capacitive touch screen. The touch-film is protected beneath the glass pane, making the technology ideal for tough, everyday usage.

The terminal is fitted with an integral Tractor-ECU (TECU) to receive information from the RUBICON which is essential for precision farming applications.

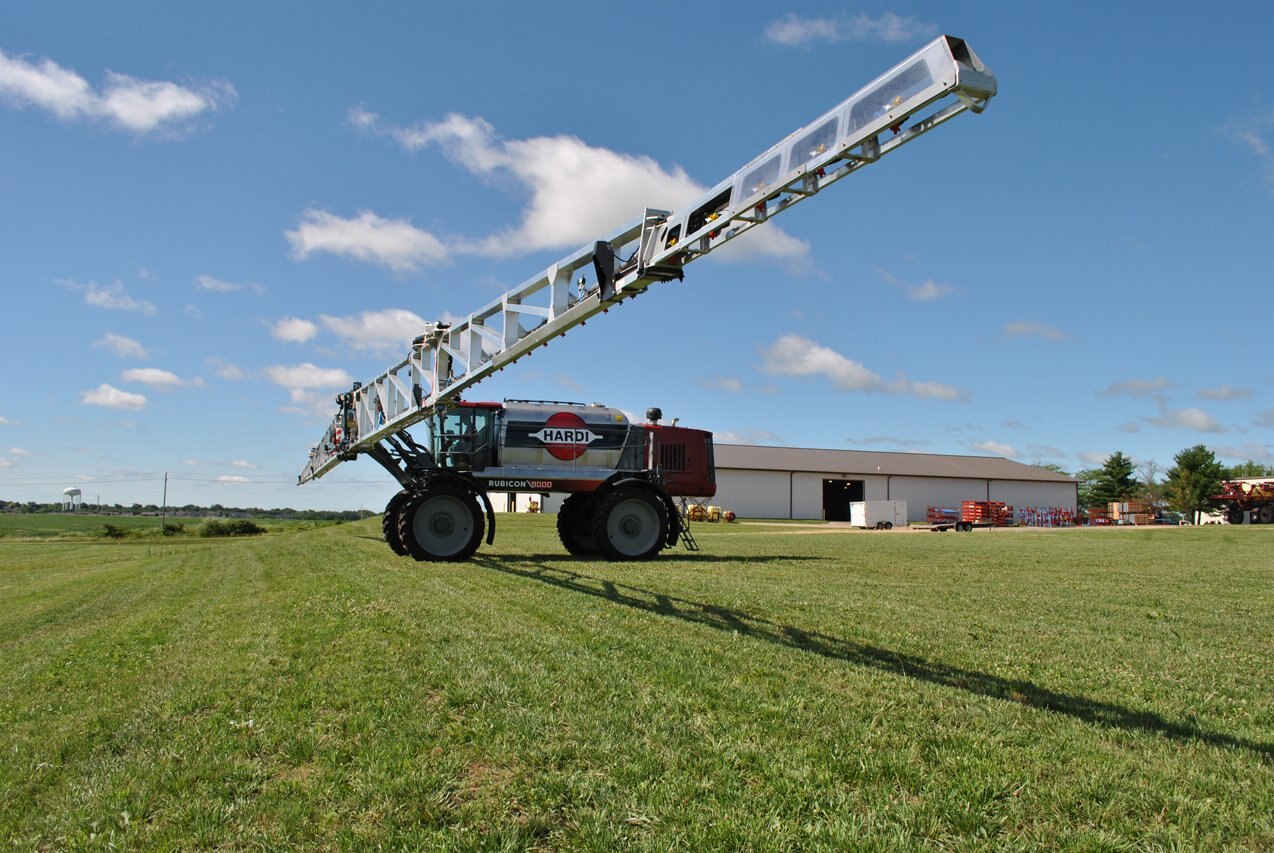

booms
Pommier aluminium booms

When it comes to wide boom innovation and design POMMIER is the market leader.

Their accumulated 30 years’ experience provides real benefits for farmers considering a lighter, stronger and wider boom option.

The RA bi-fold 120 to 160 ft. booms are well proven in field performance and reliability, and the weight reduction benefits over steel cannot be underestimated.

Optional AutoHeight control sets a new benchmark in wide boom performance, maintaining a lower boom height which provides better drift control.

With the RA boom wings at half the weight of equivalent steel structures and when combined with POMMIER patented Yaw dampening, load and forces transferred to the centre during spraying are significantly reduced.

POMMIER soft close feature protects the boom when folding.
Lighting

The under boom lighting kit allows the spraying to go on long after the sun has set.

If the opportunity to spray comes at night, it is so much easier with the RUBICON’s extensive lighting package.

The rear access stairway light is activated from cabin roof to show the way along the platform.

The forward facing LED lightbar mounted on the boom center, and sidewards orientated lights will illuminate the route to and around the field to a distance of 492 ft.

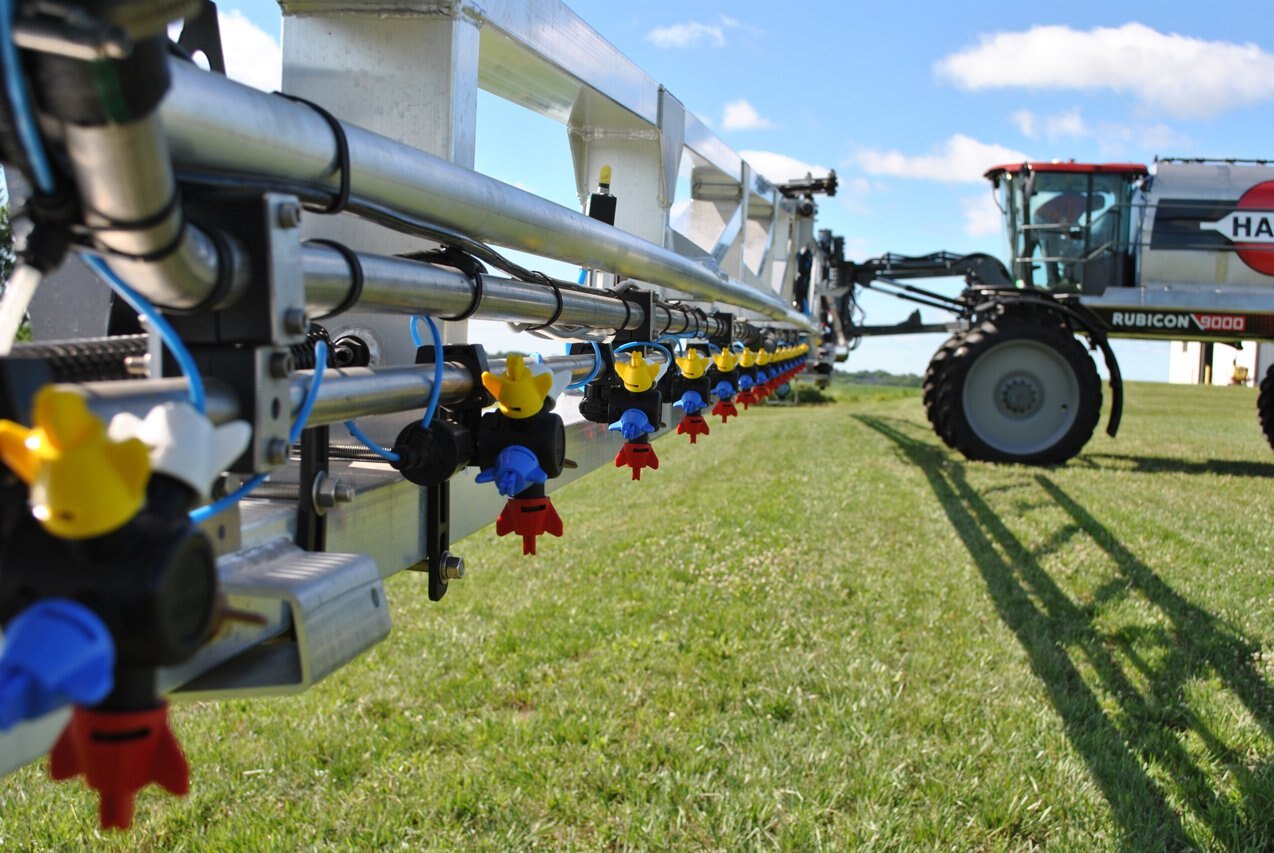

The under-boom blue cast lights provides a clear and non-invasive view to the end of the boom, and for visual conformation of functioning nozzles.
Boom center

RUBICON redefines boom stability: A revolutionary boom suspension system allows independent stiffness control settings on the springs and rams fixed to either side of the center frame. The boom remains stable under the harshest operating conditions.

The wide center frame provides excellent on road visibility.

Spring tension holds the centre frame in the middle position while the hydraulic damper absorbs energy from booms movement. A hydraulic actuator operated from the cab exerts more or less pressure on the spring to change the
 Technical specifications

Tank 2,200 gal. (9,000 ltrs)
Pump, type  Ace 650 run-dry centrifugal
Boom  AluForce 120 up to 160 ft. (24 up to 52 m)
Control Type Mueller/HC 9600/ISOBUS
Section distribution standard 6 to 10 sections
Rinse tank 165 gal. (625 ltrs)
Engine Cummins QSL 9 Tier 4 final 380 hp (276 kW)
Fuel Tank 265 gal. (1000 ltrs.)
Transmission Sauer-Danfoss H1
Hydraulic Oil 53 gallons (200 liters)
Suspension OverRide Airbag + hydraulic Koni's
Steering 2 wheel
Track width 118 to 157 in. (2.99 to 3.99 m) hydraulic adjustment
Turning circle (m) 59 ft (17.88 m)
Weight empty, (150ft) boom 34,474 lbs. (15,670 kg)
Weight full, (150ft) boom 58,200 lbs. with 2,200 gal., diesel + 165 gal rinse (26,400 kg)
Total length 34 ft.-120 ft. boom, 40 ft.-160 ft. boom (10.2 - 36.5 m boom, 12.3 - 48.5 m boom)
Total height (ft) 168 in. (4.27 m)
Width with boom folded 144 in. (3.66 m)
Track adjustment 39 in. (0.99 m)
Wheel base 180 in. (4.57 m)
Under axle clearance 72 in (1.83 m)
Wheels / Tires 480/70-R54 or 380/90-R54 as an option
Brakes 4 wheel dynamic



Specifications
Model
Rubicon
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
Hardi
