ID # 13528645

Hardi Liftmounted N-Series

  • Hardi Liftmounted N Series
  • Hardi Liftmounted N Series
  • Hardi Liftmounted N Series
  • Hardi Liftmounted N Series
  • Hardi Liftmounted N Series
  • Hardi Liftmounted N Series

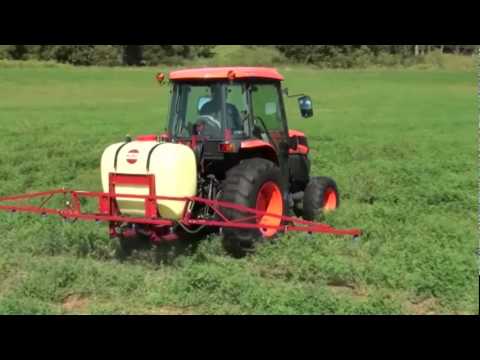

  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  Features
D9e4b7b692834499959ab627aa9a9be3Booms

Rigid mount MB boomsfrom 20 to 33 ft and Self Stabilizing MB booms in 40 ft.

All booms have an adjustable spring loaded break-away to protect the boom in case of accidental encounter with an obstacle in the field. The single SNAP-FIT nozzle holders have a built-in non-drip diaphragm check valve.

booms
The 20, 26 & 33 ft MB booms are directly mounted to the frame. The position of the boom can be altered to accommodate for various crop heights.
A heavier boom alternative in a 40 ft width. Bolts directly to the NK tank frame.

General features:

  • Heavy duty cross fold design
  • Outer wing lockouts
  • With center or contour lock positions
  • Grease lubricated bushings
  • Trapeze suspension
Chassis
71bd2d3d1efc71919d38f301516b0f7d
The chassis is the base of a long lasting sprayer and the design of the N-Series provides for a center of gravity that is both low and close to the tractor.
The chassis is zinc-phosphate treated before being coated with polyester powder, ensuring outstanding weather and chemical resistance on all chassis.
The N-Series design furthermore offers easy service accessibility.

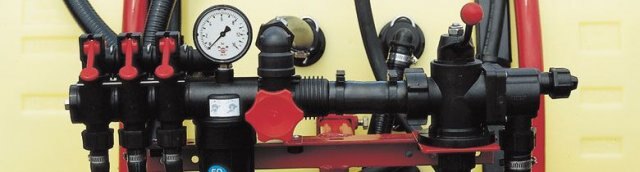

D04e07f362e421a9005dc019046dfb32Controls

HARDI manual or electric control: A long list of standard features which ensure accurate and reliable application of all plant protection chemicals
  • Main on/off that diverts all liquid back into the tank
  • Safety valve
  • Pressure gauge
  • Valve for pressure agitation
  • Minimum of 3 distribution valves
Tanks Aff9018b07504bf02eed133adea8b9b4

Available in tank sizes 105, 155, & 210 gal.

The high-impact polyethylene tank has a deep sump that ensures complete emptying of the tank. The tank design maximises liquid agitation

The top mounted suction filter on the  tanks makes it safe and easy for the operator to perform routine maintenance of the filter screen.

The tanks come standard with pressurised agitation, that ensures consistent agitation of even the most difficult mixtures.
Pumps 063e2ed6893163fd6436ea0183fc64ca

HARDI pumps are designed for the application of chemicals and liquid fertilizer.
The diaphragms separate the liquid from the vital parts of the pump such as its bearings and crankshaft, ensuring reliable and durable operation.

HARDI diaphragm pump features:

  • Self-priming
  • Able to run dry without damage
  • Easy to service without special tools
  • Grease lubricated crankcase
  • Chemical resistant diaphragms and valves
  Specifications
Tank
size, l		 Boom
model, width		 Pump model Pump capacity,gpm Size, L × W × H Weight, lb
105 MB, 20 ft 603/ 1203/ 1303  10/20/30 55" x 75" x 67" 331
105 MB, 26 ft 603/ 1203/ 1303  10/20/30 55" x 75" x 83" 334
155 MB, 20 ft 603/ 1203/ 1303  10/20/30 55" x 75" x 67" 362
155 MB, 26 ft 603/ 1203/ 1303  10/20/30 55" x 75" x 83" 375
155 MB, 33 ft 603/ 1203/ 1303  10/20/30 55" x 75" x 83" 415
155 MB, 40 ft 1203/ 1303  20/30 59" x 75" x 87" 520
210 MB, 20 ft 603/ 1203/ 1303 10/20/30 55" x 101" x 96" 400
210 MB, 26 ft 603/ 1203/ 1303  10/20/30 55" x 101" x 102" 419
210 MB, 33 ft 1203/ 1303  20/30 55" x 101" x 102" 459
210 MB, 40 ft 1203/ 1303  20/30 59" x 89" x 87" 576





Specifications
Model
N-Series
Category Name
Agriculture
Year
2016
Sale Type
New
Manufacturer
Hardi
