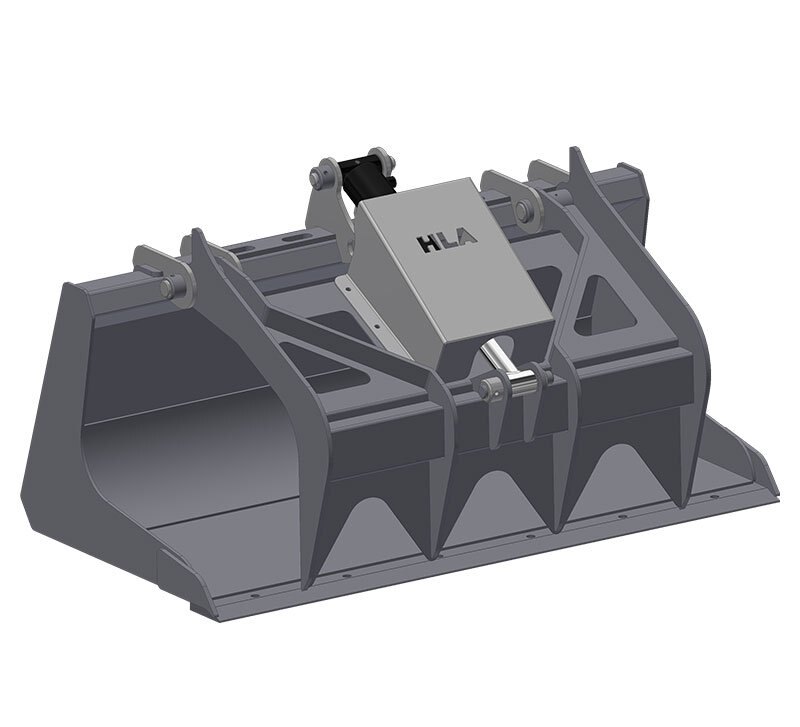

HLA Compact Scrapple Grapple Bucket (Skidsteer)

  • HLA Compact Scrapple Grapple Bucket (Skidsteer)
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Compact Scrapple Grapple Bucket (Skidsteer)

  • 3/16" material, 1/4" end plates
  • 3/4 X 4 bevelled cutting edge
  • Single grapple arm
  • 26" overall height
  • 26" overall depth
  • Opens to 36"
  • Comes with 2-1/2" x 8" cylinder
  • Drilled for standard bolt on cutting edge
  • Add 2" to Inside Width column to calculate Outside Width of bucket
Part Number Description INSIDE WIDTH (INCHES) STRUCK CAP.
CU. FT.		 SAE
HEAPED CAP.
CU. FT.		 APPROX. WEIGHT
LBS.
SGBC36 36" Compact Scrapple Grapple Bucket 36 5.4 6.9 440
SGBC48 48" Compact Scrapple Grapple Bucket 48 7.2 9.2 450
SGBC54 54" Compact Scrapple Grapple Bucket 54 8.1 10.4 465
SGBC60 60" Compact Scrapple Grapple Bucket 60 9.0 11.6 480
HK90 Optional 90" Hose Kit c/w Flat Faced Couplers
HK9090 Optional 90" Hose Kit c/w 90° Flat Faced Couplers



Specifications
Model
Compact Scrapple Grapple Bucket (Skidsteer)
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
HLA
