HLA - Side Discharge Sawdust Bucket

  • HLA Side Discharge Sawdust Bucket
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

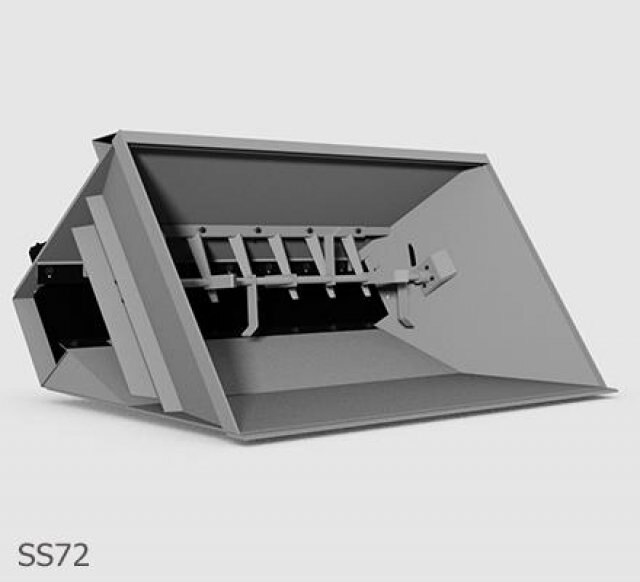

Side Discharge Sawdust Bucket

  • Minimum 12 GPM required
  • Hydraulic drive (coupled direct)
  • Beater to prevent bridging
  • 12” wide belt c/w ¾” cleat
  • Discharge from both sides of machine
  • Guide on belt for true tracking
  • 10 ga material
  • 42” high
  • Two hydraulic motors on discharge belt (72”, 84”, and 96" only)
  • OPTIONAL: 3 Point Hitch Mounting c/w Tilting Cylinder
  • NOTE: For outside width add 1” to inside width column.
PART# NAME APPROX. WEIGHT
LBS.		 HEAPED CAP.
CU. YD.		 INSIDE WIDTH
INCHES
SSB60 60" SIDE DISCHARGE - SAND 1000 2/3 60
SSB72 72" SIDE DISCHARGE - SAND 1085 1 72
SSB84 84" SIDE DISCHARGE - SAND 1175 1 1/3 84
SSB96 96" SIDE DISCHARGE - SAND 1510 1 2/3 96
HK90 OPTIONAL 90" HOSE KIT C/W FLAT FACED COUPLERS



Specifications
Model
Side Discharge Sawdust Bucket
Category Name
Equipment
Year
2016
Sale Type
New
Manufacturer
HLA
