HLA Snow

ID # 19813120

HLA-1000 Series

Call for Price
Overview

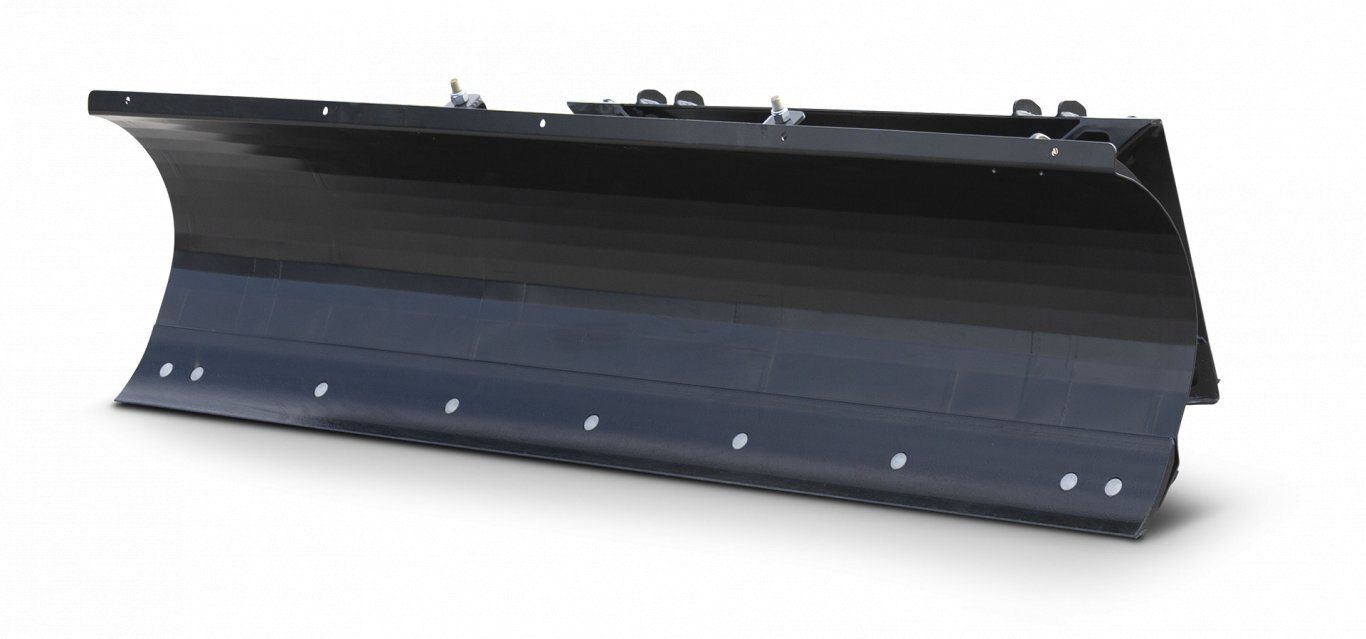

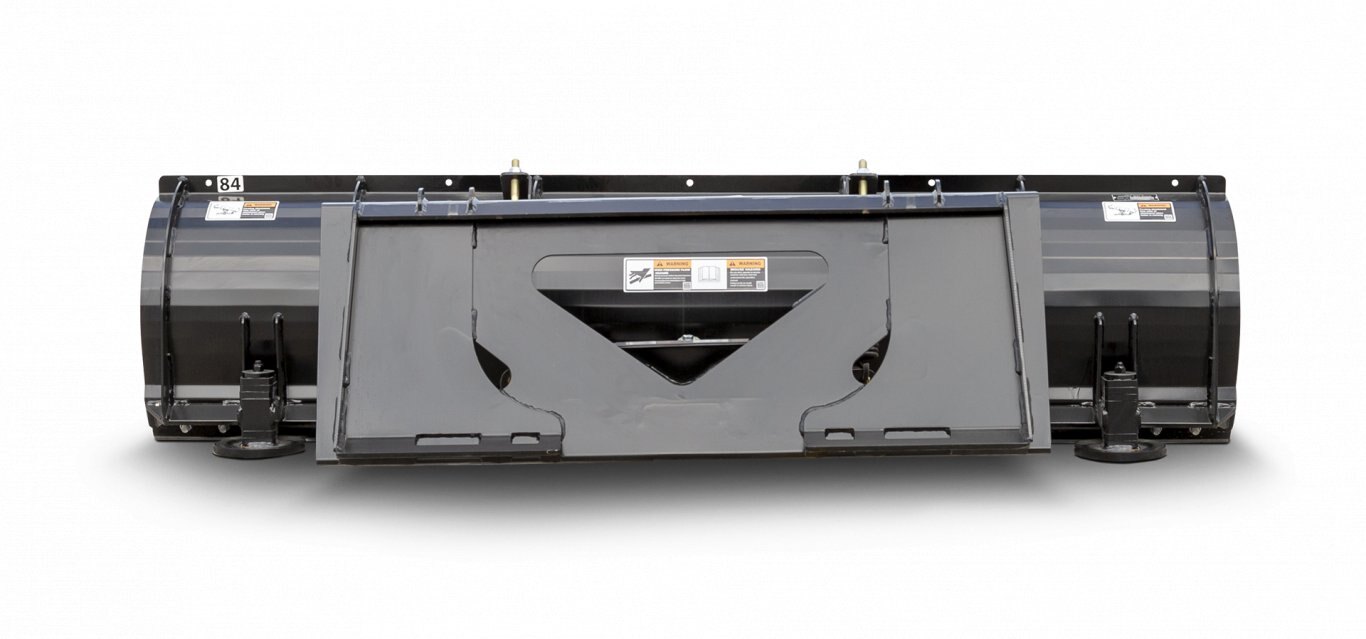

The HLA SnowBlade puts you in the driver seat when it comes to clearing snow. The SnowBlade robust mouldboard has a precision engineered curve construction that folds and rolls the snow, limiting unwanted sticking, side tracking, and spill over. Equipped with a spring-trip feature, the mouldboard trips back if the blade hits a hidden object, limiting any damage so you can continue clearing. With other features such as the crossover relief valve, lateral float, and replaceable and reversible cutting edge, the HLA SnowBlade gets the job done right, every time.

Specifications
Model
1000 Series
Category Name
Attachments
Year
2022
Sale Type
New
Manufacturer
HLA Snow
part number
Part # Approx. Weight (LBS.) Length (in.) Overall Road Width (Angled) (in.) Snow Clearing Width (Angled) (in.) Mouldboard Height Max Operating Weight (LBS.)
SB100048 365 48 44.5 40 20" 3,000
SB100054 375 54 50 45 20" 3,000
SB100060 385 60 56 50 20" 3,000
SB100066 400 66 59.5 55 20" 3,000
SB100072 410 72 65.5 60 20" 3,000
SB100078 420 78 69.5 65 20" 3,000
SB100084 440 84 74.5 70 20" 3,000
SB100090 450 90 79.5 75 20" 3,000
SB100096 465 96 84.5 80 20" 3,000
features

HLA 1000 Series Lateral Float

Allows blade to follow ground contours for better clearing performance.

HLA 1000 Series

Mouldboard Profile

Precision engineered curve rolls and folds snow. This reduces sticking, side tracking and spill over.

HLA 1000 Series

Replaceable, Reversible Cutting Edge

Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.

HLA 1000 Series Adjustable Skid Shoes

Allows you to set cutting depth for optimum performance and prolonged cutting edge life.

HLA 1000 Series Spring Trip Mouldboard

Allows blade to trip back if struck by hidden object limiting damage.

HLA 1000 Series 35° Manual Angle Either Direction (hydraulic optional)

options

HLA 1000 Series Rubber Cutting Edge

Allows blade to trip back if struck by hidden object limiting damage. Standard on SB1000R models.

HLA 1000 Series Snowblade Marker

Add this to your blade for better visibility and blade position awareness.
