ID # 15690404

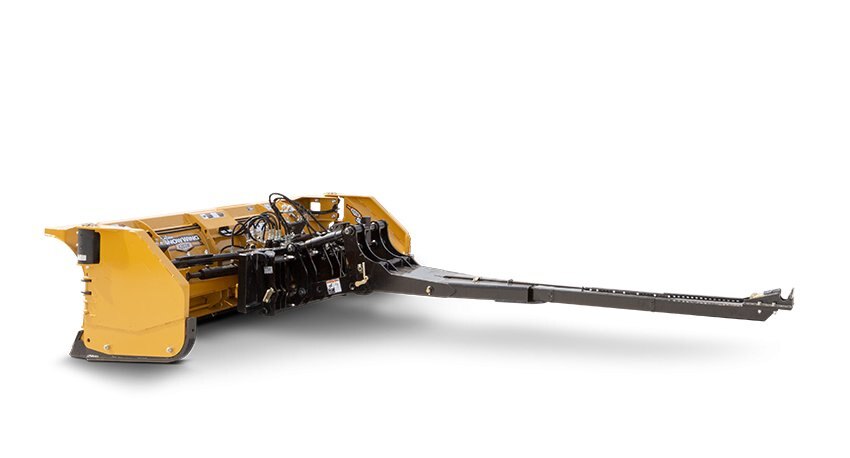

HLA Snow SB4QDM Quick Attach Snow Blade Mount

  • HLA Snow SB4QDM Quick Attach Snow Blade Mount
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The HLA Quick Attach Snow Blade Mount is securely connected to both the front and rear of your tractor. Relying on the rear of the mount, the force is pushed through the drawbar from the front of the mount providing incredible pushing strength. Also using parallel linkage, you can rest assured that the blade will always remain parallel to the ground whether it's raised for stacking snow or at full angle.

The quick release design relies on front and rear adapters fitted to the tractors chassis. With the hydraulics connected down pressure on the blade allows you to raise the SB3QDM aligning it with the front bracket. Once engaged reversing the pressure raises the rear of the SB3QDM locking it into the rear bracket.

Available for most makes, the quick attach mount includes all hardware, hose kits and electro - hydraulic wire kit allowing for easy installation.
  Features

Power and Control

  • Heavy duty parallel linkage for optimum lifting height
  • AO600 Euro quik fit plate for attachments is standard
  • Package includes all mounting hardware and hose kits
  • Electro-hydraulic harness kit is standard.
  • Adapter kits available for most makes, call dealer for details
  • Soft ride accumulator standard
  • Recommended Tractor size: 10,000 to 25,000 lbs.

Parallel Vertical Lift

  • Blade remains parallel to ground even at full angle and raised
  • Extra height for piling snow

Quick Release System

  • Quick Release system allows for removal of the complete mount and snowblade in minutes

  Specifications

Model Part # Weight (lbs.)
SB4QDM Quick Attach Snow Blade Mount less Adapter SB4QDMQF 1,210
SB4QDM Quick Attach Snow Blade Mount Adapter Contact HLA for Tractor Listing    135
Optional Factory Blade Installation - SB4QDM Series - SB4000IN

Specifications
Model
SB4QDM
Category Name
Snow Removal Attachments
Year
2020
Sale Type
New
Manufacturer
HLA Snow
