ID # 15690399

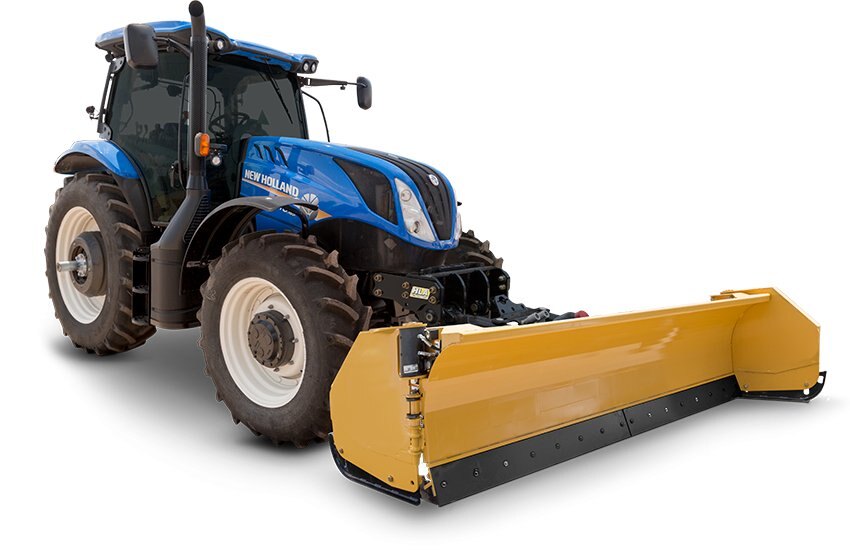

HLA Snow 4203W Max Op
Overview
| |
|
Features |
- Quick attach frame kits available for most makes. Call dealer for details
- Double Selector Valve
- Tire Protection System - PATENTED
- 2 Year Warranty
- 180° Rotation
- 35° Angle with Crossover Relief Valve Protection
- Floating End Plate Edge
- Lateral Float
- Mouldboard Profile
- Replaceable, Reversible Cutting Edge
- Nitrate Rods on Angle Cylinders
- Rotary Actuators - PATENTED
- Skid Shoes
- Spring Trip Cutting Edge
|
|
Specifications |
| |
| PART# |
Approx. Weight (LBS.) |
Clearing Width Closed (in.) |
Clearing Width Open (in.) |
Overall Road Width (Angled) (in.) |
Snow Clearing Width (Angled) (in.) |
Mouldboard Height |
Max Operating Weight (lbs.) |
|
SB4203W814 |
2,720 |
96 |
168 |
92 |
136 |
34" |
25,000 |
|
SB4203W915 |
2,880 |
108 |
180 |
102 |
146 |
34" |
25,000 |
|
SB4203W1016 |
2,985 |
120 |
192 |
112 |
156 |
34" |
25,000 |
|
SB4203W1218 |
3,185 |
144 |
216 |
132 |
176 |
34" |
25,000 |
|
SB4203W1420 |
3,440 |
340 |
240 |
152 |
196 |
34" |
25,000 | |
| |
