ID # 15690395

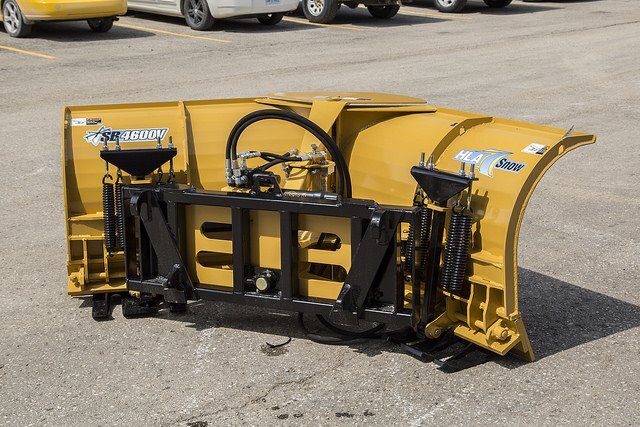

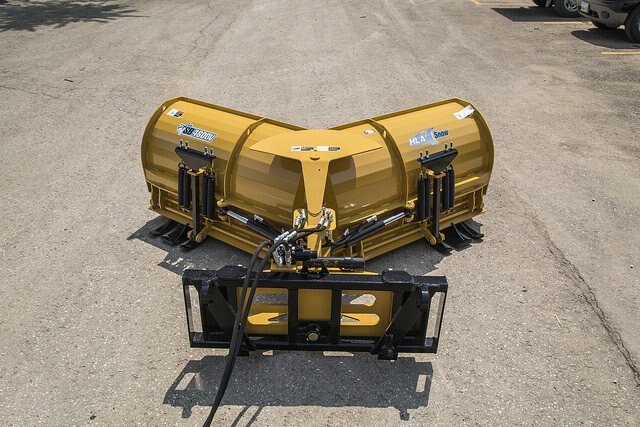

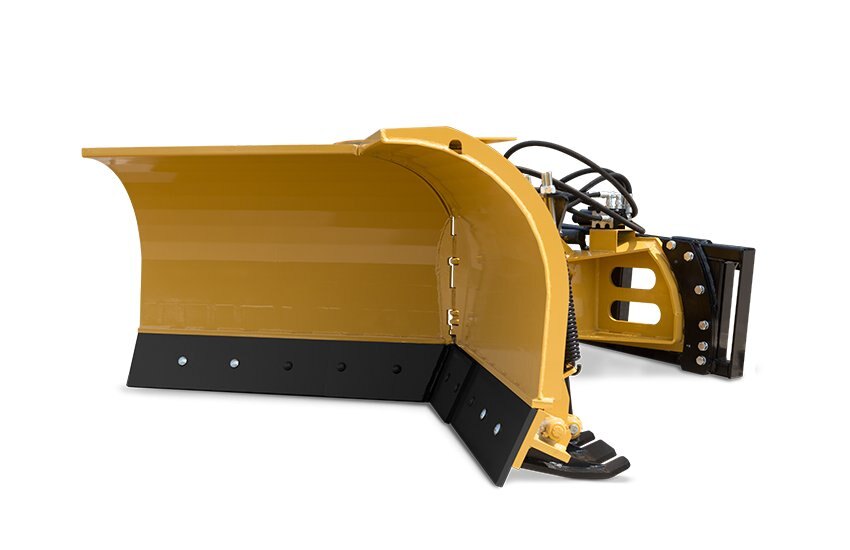

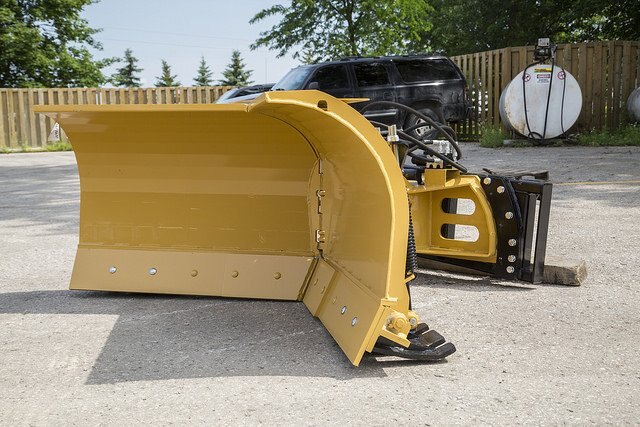

HLA Snow SB4600V
Overview
| |
|
Features |
- 2 Year Warranty
- Replaceable, Reversible Steel Cutting Edge
- Spring Trip Cutting Edge
- 35° Angle with Cross Over Relief Valve Protection
- Lateral Float
- Single Electric Selector Valve
- High Tensile AR400 Skid Shoes
- Quick attach frame kits available for most makes. Call dealer for details.
|
|
Specifications |
| |
| Part # |
Approx. Weight (LBS.) |
Clearing Width Straight |
Clearing Width Veed |
Clearing Width Scooped |
Road Clearance Angled |
Mould-Board Height |
Max Operating Weight (LBS.) |
|
SB4600V08 |
1,635 |
96" |
85" |
75" |
83" |
34" |
25,000 |
|
SB4600V09 |
1,720 |
108" |
94" |
85" |
93" |
34" |
25,000 |
|
SB4600V10 |
1,805 |
120" |
103" |
95" |
103" |
34" |
25,000 |
|
SB4600V12 |
1,975 |
144" |
123" |
114" |
123" |
34" |
25,000 | |
| |
Specifications
Category Name
Snow Removal Attachments
