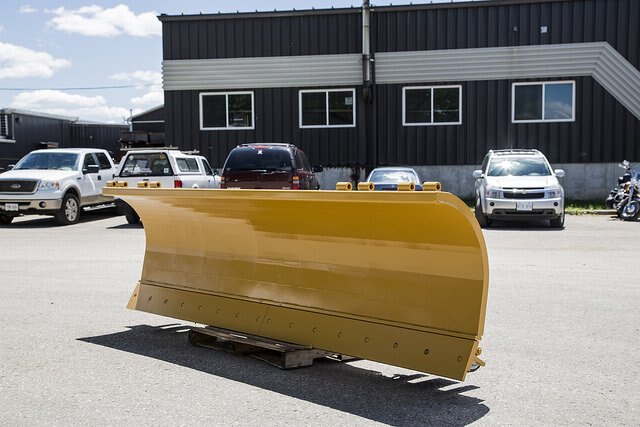

HLA Snow 4000 Series
Overview
| |
|
Features |
- 2 Year Warranty
- 35° Angle with Crossover Relief Valve Protection
- Lateral Float
- Mouldboard Profile
- Replaceable, Reversible Cutting Edge
- Skid Shoes
- Spring Trip Cutting Edge
|
|
Specifications |
| |
| Part # |
Approx. Weight (LBS.) |
Length (in.) |
Overall Road Width (Angled) (in.) |
Snow Clearing Width (Angled) (in.) |
Mouldboard Height |
Max Operating Weight (LBS.) |
|
SB400009 |
1,935 |
108 |
100 |
88.5 |
34" |
25,000 |
|
SB400010 |
2,035 |
120 |
110 |
98.5 |
34" |
25,000 |
|
SB400012 |
2,225 |
144 |
130 |
118 |
34" |
25,000 |
|
SB400014 |
2,505 |
168 |
150 |
138 |
34" |
25,000 | |
