ID # 13869621

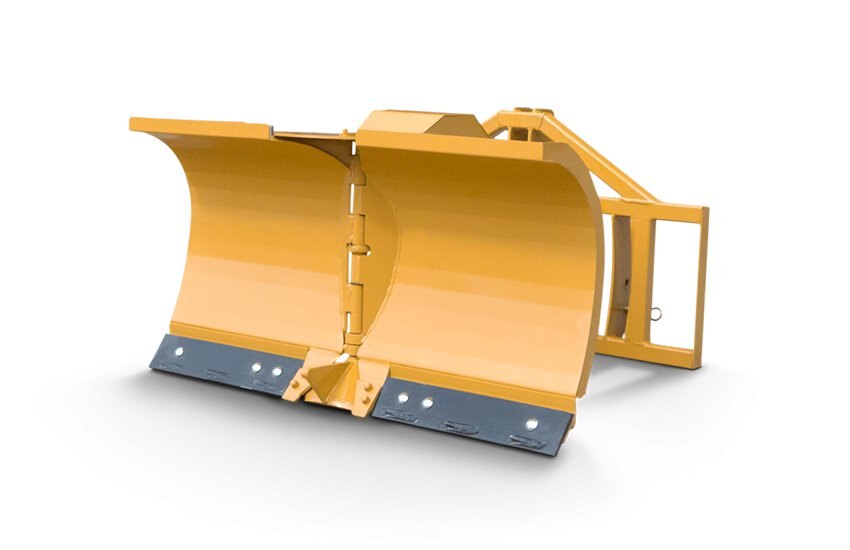

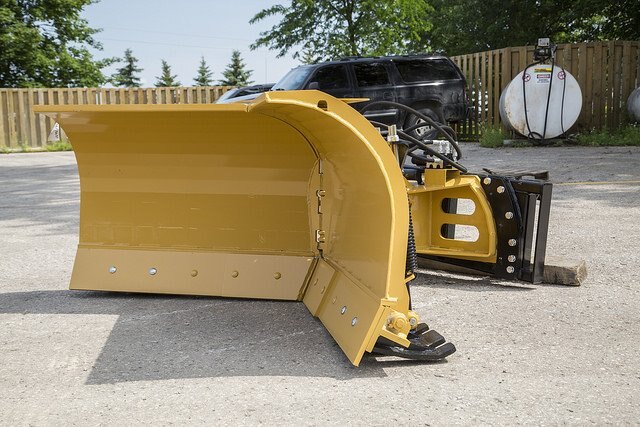

HLA Snow SB3600V
Overview
| |
|
Features |
- 2 Year Warranty
- Replaceable, Reversible Steel Cutting Edge
- Spring Trip Cutting Edge
- 35° Angle with Cross Over Relief Valve Protection
- Lateral Float
- 5/8" AR600 Cutting Edge
- High Tensile AR400 Skid Shoes
- Quick attach frame kits available for most makes. Call dealer for details.
- Single Electric Selector Valve
|
|
Specifications |
| |
| Part # |
Approx. Weight (LBS.) |
Clearing Width Straight |
Clearing Width Veed |
Clearing Width Scooped |
Road Clearance Angled |
Mould-Board Height |
Max Operating Weight (LBS.) |
|
SB3600V54 |
695 |
54" |
51" |
39" |
48" |
30" |
10,000 |
|
SB3600V60 |
720 |
60" |
55" |
43" |
53" |
30" |
10,000 |
|
SB3600V66 |
740 |
66" |
60" |
48" |
58" |
30" |
10,000 |
|
SB3600V72 |
765 |
72" |
65" |
53" |
63" |
30" |
10,000 |
|
SB3600V78 |
785 |
78" |
70" |
58" |
68" |
30" |
10,000 |
|
SB3600V84 |
805 |
84" |
75" |
63" |
73" |
30" |
10,000 | |
| |
