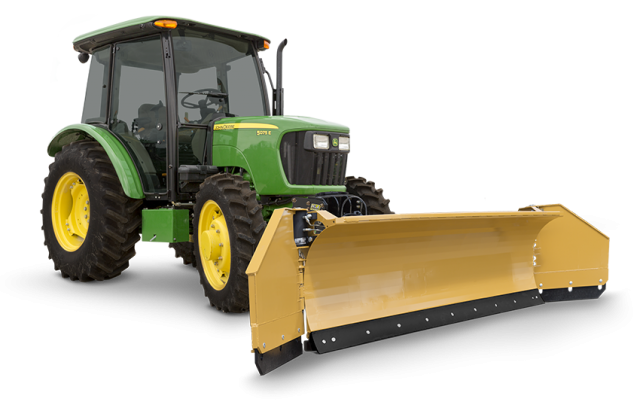

HLA Snow 3200W Series
Videos
Overview
| |
|
Features |
- 2 Year Warranty
- 180° Rotation
- 35° Angle with Crossover Relief Valve Protection
- Floating End Plate Edge
- Lateral Float
- Mouldboard Profile
- Replaceable, Reversible Cutting Edge
- Rotary Actuators - PATENTED
- Skid Shoes
- Spring Trip Cutting Edge
- Tire Protection System - PATENTED
- Double Selector Valve
- Quick attach frame kits available for most makes. Call dealer for details.
|
|
Specifications |
| |
| Part # |
Approx. Weight (LBS.) |
Clearing Width Closed (in.) |
Clearing Width Open (in.) |
Overall Road Width (Angled) (in.) |
Snow Clearing Width (Angled) (in.) |
Mouldboard Height |
Max Operating Weight (lbs.) |
|
SB3200W611 |
1,640 |
72 |
132 |
70 |
107 |
30" |
10,000 |
|
SB3200W712 |
1,705 |
84 |
144 |
80 |
117 |
30" |
10,000 |
|
SB3200W813 |
1,765 |
96 |
156 |
90 |
127 |
30" |
10,000 |
|
SB3200W914 |
1,820 |
108 |
168 |
100 |
137 |
30" |
10,000 |
|
SB3200W1015 |
1,880 |
120 |
180 |
110 |
147 |
30" |
10,000 | |
