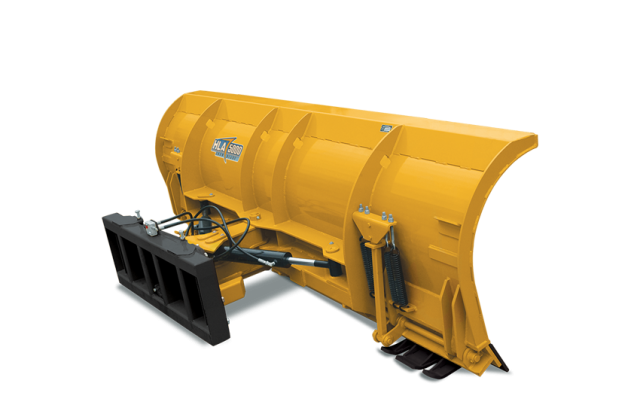

HLA Snow 5000 Series
Overview
| |
|
Features |
- 2 Year Warranty
- 35° Angle with Crossover Relief Valve Protection
- Lateral Float
- Mouldboard Profile
- Nitrate Rods on Angle Cylinders
- Replaceable, Reversible Cutting Edge
- Skid Shoes
- Spring Trip Cutting Edge
|
|
Specifications |
| |
| Part # |
Approx. Weight (LBS.) |
Length (in.) |
Overall Road Width (Angled) (in.) |
Snow Clearing Width (Angled) (in.) |
Mouldboard Height |
Max Operating Weight (LBS.) |
|
SB500009 |
2,445 |
108 |
90 |
78.5 |
42" |
40,000 |
|
SB500010 |
2,550 |
120 |
110 |
98.5 |
42" |
40,000 |
|
SB500012 |
2,815 |
144 |
130 |
118 |
42" |
40,000 |
|
SB500014 |
3,095 |
168 |
150 |
138 |
42" |
40,000 |
|
SB500016 |
3,405 |
192 |
170 |
158 |
42" |
40,000 |
|
SB500018 |
3,700 |
216 |
190 |
178 |
42" |
40,000 | |
