ID # 13335943

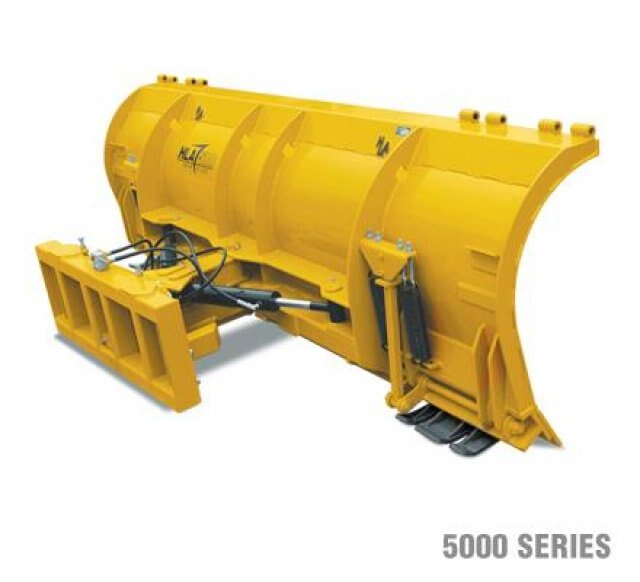

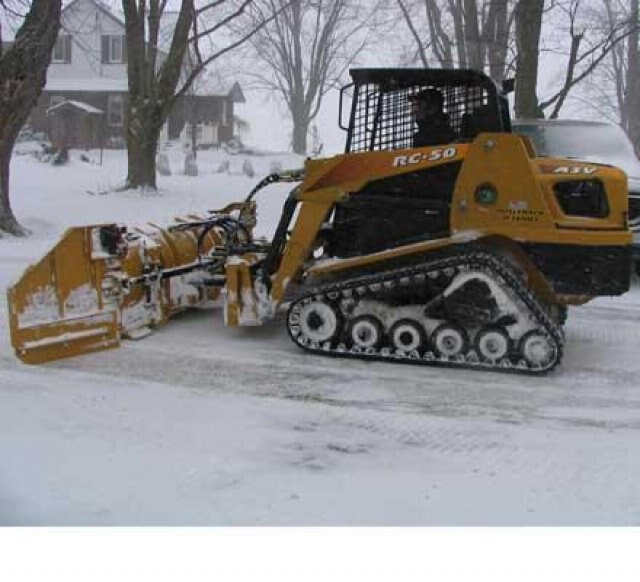

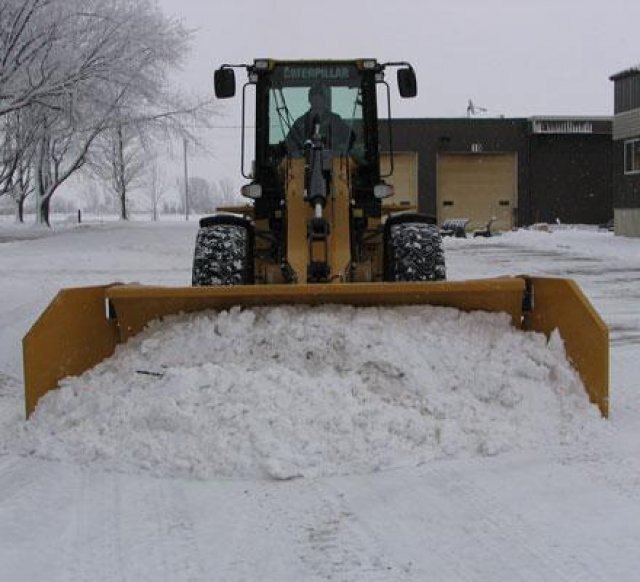

HLA Snow 5000 Series

  • HLA Snow 5000 Series
  • HLA Snow 5000 Series
  • HLA Snow 5000 Series
  • HLA Snow 5000 Series
  • HLA Snow 5000 Series
  • HLA Snow 5000 Series
  • HLA Snow 5000 Series
  • HLA Snow 5000 Series
  • HLA Snow 5000 Series
  • HLA Snow 5000 Series
  • HLA Snow 5000 Series
  • HLA Snow 5000 Series
  • HLA Snow 5000 Series
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
MAX OPERATING WEIGHT: 40000 lbs
  Features:
Spring Trip Cutting Edge Spring Trip Cutting Edge
Allows cutting edge to trip back if struck by hidden object limiting damage.
Skid Shoes Skid Shoes
AR400 high tensile skid shoes for optimum performance and prolonged cutting edge life.
Mould Board Profile Mould Board Profile
Precision engineered curve rolls and folds snow. This reduces, sticking, side tracking and spill over.
Crossover Relief Valve Crossover Relief Valve
Provides protection against hidden obstacles by redirecting hydraulic pressure, swinging the blade around hazards.
Lateral Float Lateral Float
Allows blade to follow ground contours for better clearing performance.
Replaceable, Reversible Cutting Edge Replaceable, Reversible Cutting Edge
Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.
Nitrate Rods on Angle Cylinders Nitrate Rods on Angle Cylinders
Nitrate rods on angle cylinders.
SPECIFICATIONS
PART
APPROX.
WEIGHT LBS.
LENGTH (IN)
MOULD-
BOARD
HEIGHT (IN)
MAX
OPERATING
WEIGHT (LBS)
SB500009
2100
108
 42 40000
SB500010
2175
120
 42 40000
SB500012
2450
144
 42 40000
SB500014
2720
168
 42 40000
SB500016
2960
192
 42 40000
SB500018
3280
216
 42 40000



Specifications
Model
5000 Series
Category Name
Equipment
Year
2015
Sale Type
New
Manufacturer
HLA Snow
