ID # 13335440

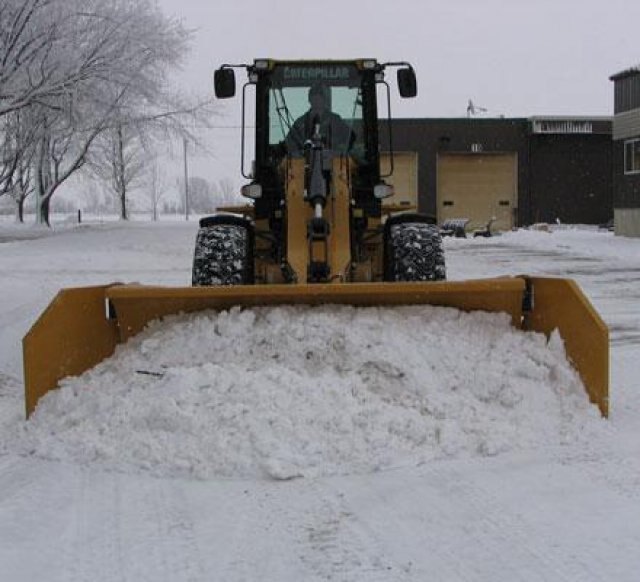

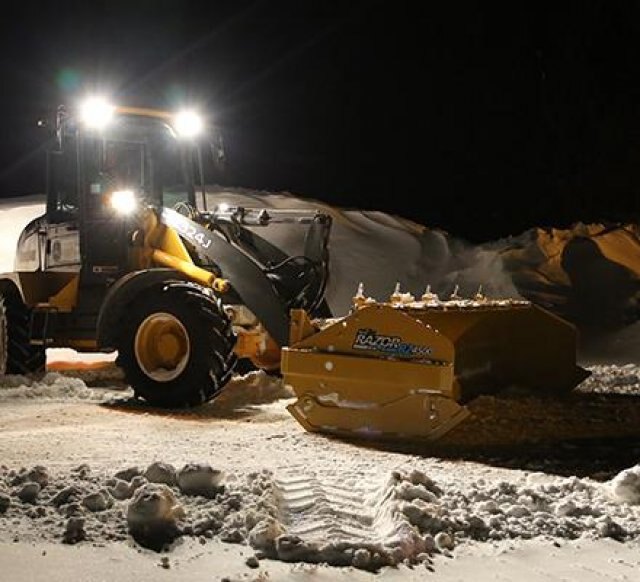

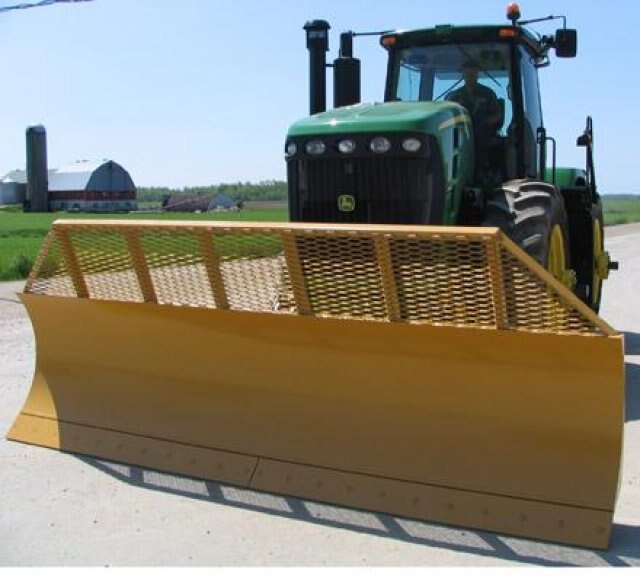

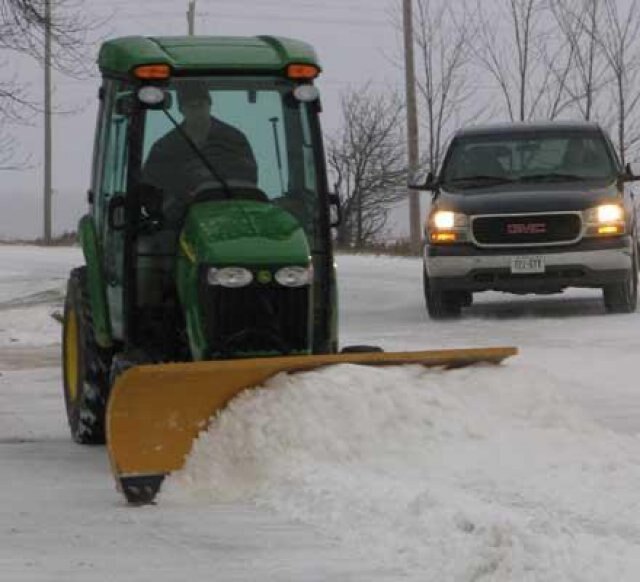

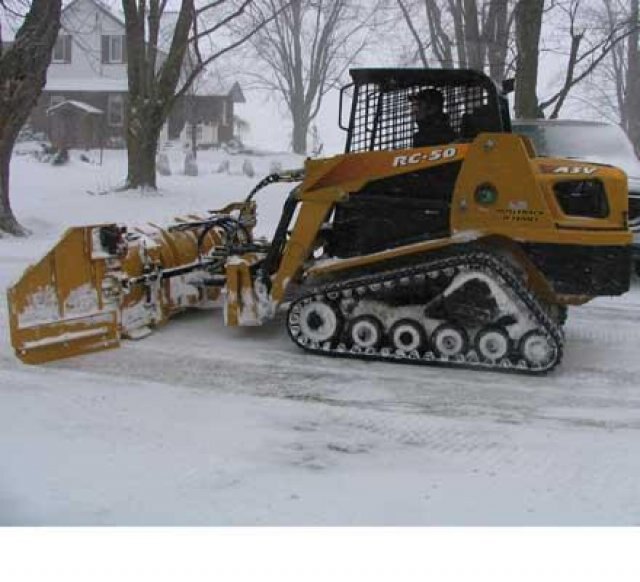

HLA Snow 3200W Series

  • HLA Snow 3200W Series
  • HLA Snow 3200W Series
  • HLA Snow 3200W Series
  • HLA Snow 3200W Series
  • HLA Snow 3200W Series
  • HLA Snow 3200W Series
  • HLA Snow 3200W Series
  • HLA Snow 3200W Series
  • HLA Snow 3200W Series
  • HLA Snow 3200W Series
  • HLA Snow 3200W Series
  • HLA Snow 3200W Series
  • HLA Snow 3200W Series
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
MAX OPERATING WEIGHT: 10000 lbs.
  Features:
Replaceable, Reversible Cutting Edge
Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.Replaceable, Reversible Cutting Edge
Spring Trip Cutting Edge Spring Trip Cutting Edge
Allows cutting edge to trip back if struck by hidden object limiting damage.
Tire Protection System - PATENTED Tire Protection System - PATENTED
Our Tire Protection System means that you get the most out of your Snow Wing while keeping the air in your tires. The system automatically protects from unintended damaging collisions between your front tires and end plates. The end plates are automatically rotated away from the tires so the operator can focus on clearing snow and worry less about damaging equipment.
180° Rotation 180° Rotation
Infinitely and independently adjustable, our wings are rugged enough to stay put and give you control of any situation.
Rotary Actuators - PATENTED Rotary Actuators - PATENTED
These rugged units come from the construction industry, and deliver high torque amounts to hold the wings in place.
Floating End Plate Edge Floating End Plate Edge
Floating end-plate edges follow surface contour for confident snow clearing.
Adjustable Skid Shoes Adjustable Skid Shoes
Allow you to set cutting depth for optimum performance and prolonged cutting edge life.
Mould Board Profile Mould Board Profile
Precision engineered curve rolls and folds snow. This reduces, sticking, side tracking and spill over.
Crossover Relief Valve Crossover Relief Valve
Provides protection against hidden obstacles by redirecting hydraulic pressure, swinging the blade around hazards.
Lateral Float Lateral Float
Allows blade to follow ground contours for better clearing performance.
Boron Cutting Edges Boron Cutting Edges
Boron long wearing reversible upgrades provide excellent cutting performance for use in mixed gravel, concrete and asphalt situations.
SPECIFICATIONS
PART
APPROX.
WEIGHT
LBS.
CLEARING
WIDTH
CLOSED
CLEARING
WIDTH
OPEN
ROAD
CLEARANCE
ANGLED
INCHES
LENGTH (IN)
MOULD-
BOARD
HEIGHT (IN)
MAX
OPERATING
WEIGHT (LBS)
SB3200W611
1300
6'
11'
70
72
 30 10000
SB3200W712
1360
7'
12'
80
84
 30 10000
SB3200W813
1420
8'
13'
90
96
 30 10000
SB3200W914
1480
9'
14'
100
108
 30 10000
SB3200W1015
1550
10
15
110
120
 30 10000



Specifications
Model
3200W Series
Category Name
Equipment
Year
2015
Sale Type
New
Manufacturer
HLA Snow
