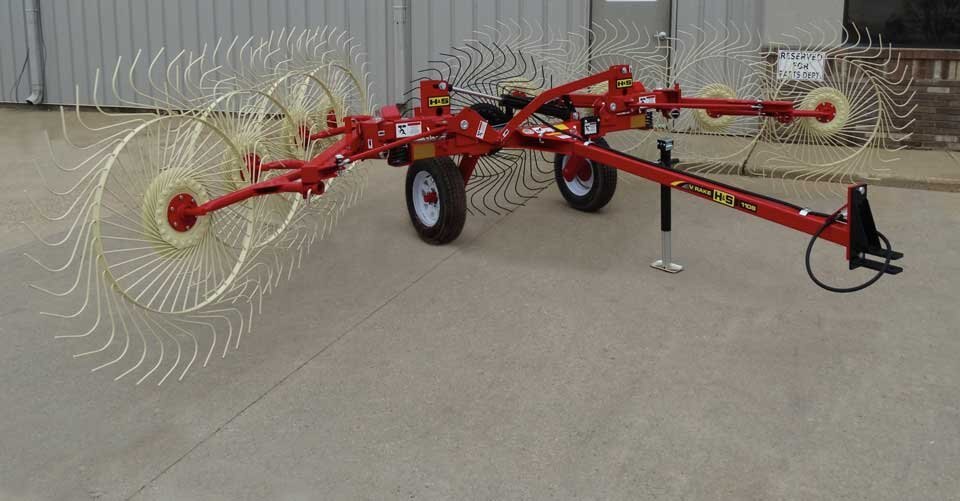

H&S Carted V-Rakes 1100 Series

  • H&S Carted V Rakes 1100 Series
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  Features

  • The Rake Arm Pivot Joint provides flexibility for the rake beam in uneven ground conditions unlike most competitors.
  • The Rake Wheel Pivots also provides additional ground flexibility.
  • Raking width on the 1100 series rakes can be adjusted to 3 different positions with the pin and fine-tuned by adjusting the turnbuckle screw. The hitch jack is used to adjust the windrow width.
  • A single acting cylinder coupled with a simple linkage system allows for easy raising and lowering of rake wings.


 Specifications

1108
NUMBER OF RAKE WHEELS 8
WHEEL DIAMETER 55″
TEETH PER WHEEL 40
TOOTH DIAMETER 7mm
TRANSPORT WIDTH 8′ 6″
TRANSPORT LENGTH 13′
WINDROW WIDTH ADJUSTMENT 3′ - 5′
RAKING WIDTH 15′ - 19′ — 3 Settings
RAKING WHEEL HUBS Tapered Bearings
WING FLEX Limited
2ND HOSE KIT Optional
HITCH JACK Standard
CENTER KICKER WHEEL N/A
TRANSPORT WHEELS 2 - ST175/80D13
WEIGHT 1125 lbs.

1110
NUMBER OF RAKE WHEELS 10
WHEEL DIAMETER 55″
TEETH PER WHEEL 40
TOOTH DIAMETER 7mm
TRANSPORT WIDTH 9′ 6″
TRANSPORT LENGTH 15′ 6″
WINDROW WIDTH ADJUSTMENT 4′ - 6′
RAKING WIDTH 18′ - 22′ — 3 Settings
RAKING WHEEL HUBS Tapered Bearings
WING FLEX Limited
2ND HOSE KIT Optional
HITCH JACK Standard
CENTER KICKER WHEEL Optional
TRANSPORT WHEELS 2 - ST175/80D13
WEIGHT 1275 lbs.

1112
NUMBER OF RAKE WHEELS 12
WHEEL DIAMETER 55″
TEETH PER WHEEL 40
TOOTH DIAMETER 7mm
TRANSPORT WIDTH 9′ 6″
TRANSPORT LENGTH 18′
WINDROW WIDTH ADJUSTMENT 4′ - 6′
RAKING WIDTH 20′ - 24′ — 3 Settings
RAKING WHEEL HUBS Tapered Bearings
WING FLEX Limited
2ND HOSE KIT Optional
HITCH JACK Standard
CENTER KICKER WHEEL Optional
TRANSPORT WHEELS 2 - ST175/80D13
WEIGHT 1440 lbs.



Specifications
Model
1100 Series
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
