ID # 14029185

H&S 7 + 4 FEEDER BOX

  • H&S 7 + 4 FEEDER BOX
  • H&S 7 + 4 FEEDER BOX
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

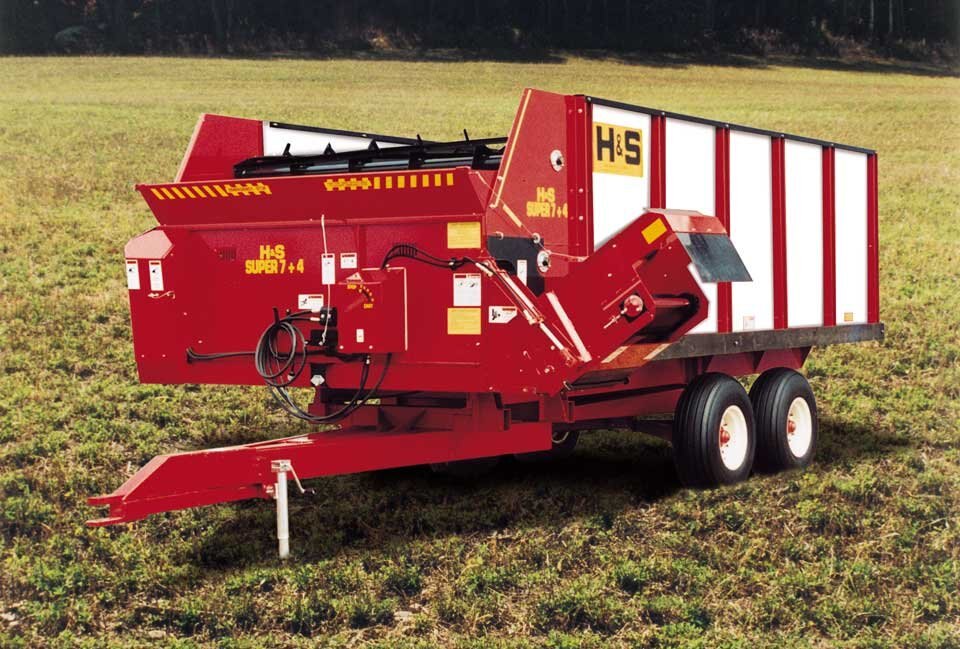

  • The H&S Feeder Box is available in a 16′ Front Unload model

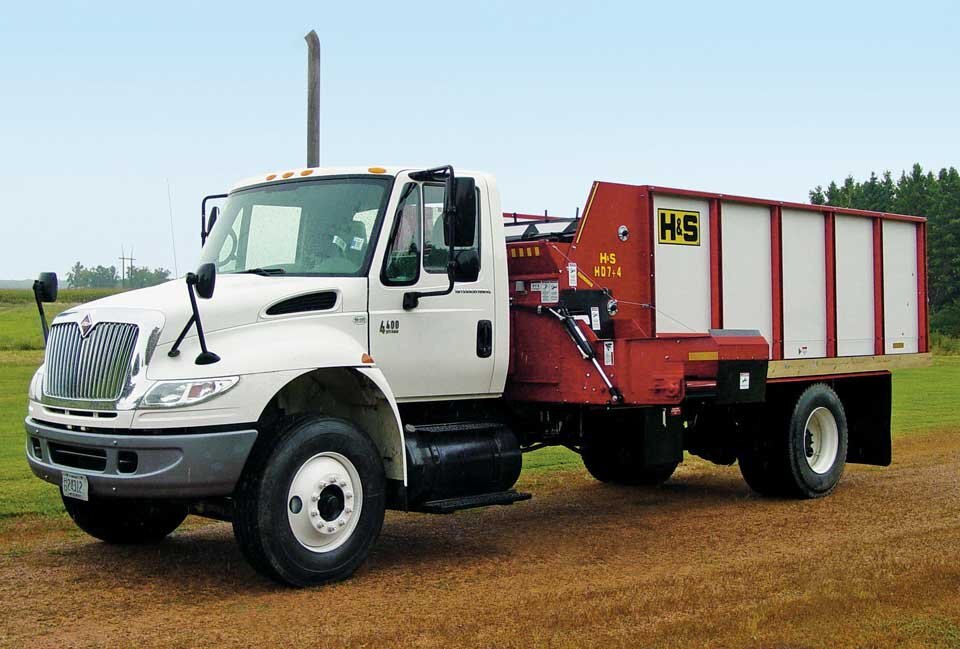

  • Feeder Box can be mounted on a 12 ton tandem chassis with 12.5L x 15 tires, truck mounted, or running gear mounted.
  • A very simple, easy to operate electric-over-hydraulic control box mounts on the tractor or in the truck cab.
  • Available with an optional scale system for truck or chassis mount.
Specifications
Model
7 + 4 FEEDER BOX
Category Name
Agriculture
Year
2021
Sale Type
New
Manufacturer
H&S
CROSS CONVEYOR WIDTH
22''
options

Available with an optional scale system for truck mount or chassis mount.

models
7-4 FEEDER BOX
POWER HYDRAULIC DRIVE
HYDRAULIC REQUIREMENTS (2000 PSI, 10 GPM.)
FEEDER APRON DRIVE WORM GEAR (BRONZE)
SPEEDS INFINITE VARIABLE
MAIN APRONS 4 CHAINS – 667H PINTLE
BEATERS 2-18″ DIAMETER, 4 SPIRAL BAR
BEATER DRIVE #50 ROLLER CHAIN
CROSS CONVEYOR #550 ROLLER CHAIN OR ANGLE CROSS SLATS
CROSS CONVEYOR DRIVE SPROCKET AND #50 ROLLER CHAIN
CROSS CONVEYOR WIDTH 22″
DISCHARGE LEFT SIDE UNLOADING ELEVATOR
DISCHARGE OPENING LEFT SIDE UNLOADING ELEVATOR
DISCHARGE HEIGHT
  • MINIMUM (45 DEGREE ANGLE) 33″
  • MAXIMUM (0 DEGREE ANGLE) 39″
INSIDE LENGTH 16′
INSIDE WIDTH 7′ 4″
INSIDE HEIGHT 48″
CAPACITY BY VOLUME, STRUCK LEVEL 454 CU. FT.
BY WEIGHT 20,000 LBS.
OVERALL LENGTH 23′ 7″
OVERALL WIDTH
  • CONVEYOR UP 9′ 8″
  • CONVEYOR DOWN 12′ 4″
OVERALL HEIGHT (LOADING HEIGHT) 8′ 2″
WEIGHT 5570 LBS.
SIDES ½″ FIBERGLASS REINFORCED PLYWOOD (FRP)
FLOORS ½″ POLY BONDED PLYWOOD
TIRES 12.5L X 15, TANDEM
RUB RAIL – WOOD STD
EMERGENCY STOP MECHANISM STD
HIGHWAY LIGHT PKG. STD
ELECT. CONTROLS STD
TRUCK MOUNTED VERSION OPTIONAL
HEIGHT FROM BOTTOM OF FRAME TO TOP OF BOX 69″
RECOMMENDED TRUCK CAB TO CENTER OF AXLE MINIMUM 150″

WARRANTY: SEE OERATORS MANUAL FOR WARRANTY DETAILS AND LIMITATIONS. H&S RESERVES THE RIGHT TO CHANGE ITS PRODUCTS OR THE DESCRIPTION AT ANY TIME WITHOUT NOTICE OR OBLIGATION. MODELS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
