ID # 14029176

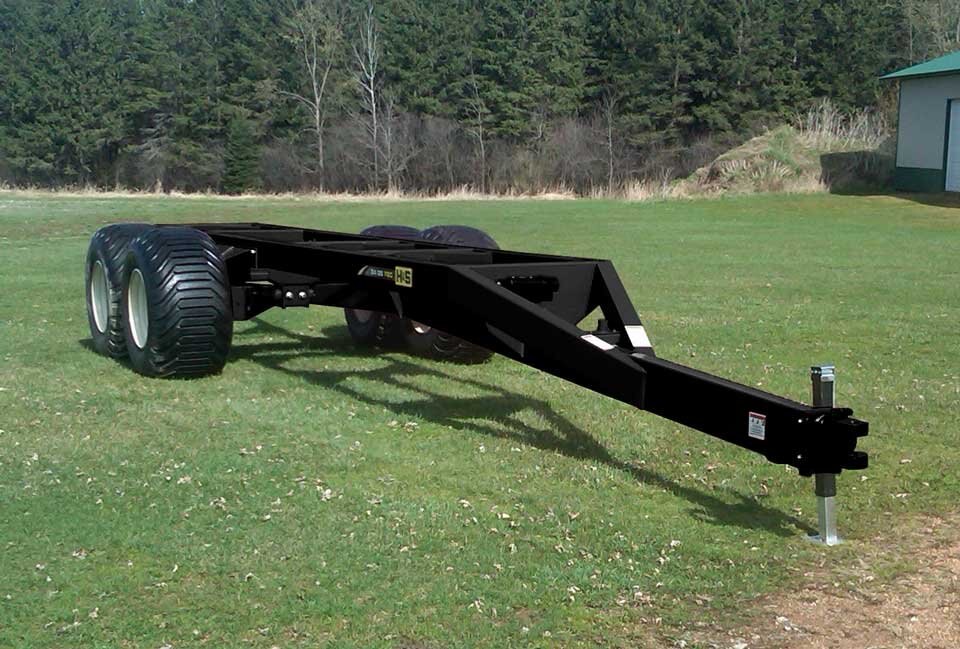

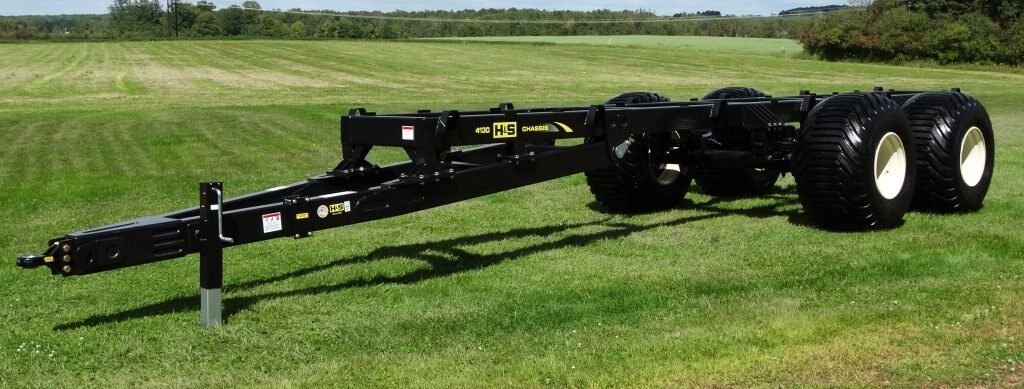

H&S Chassis

  • H&S Chassis
  • H&S Chassis
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

WBOC-18/20 WALKING BEAM CHASSIS

  • Accommodates 18’ – 20’ TOTAL LENGTH (including the unit if applicable) Forage Boxes
  • 32,000# Capacity
  • 34” Wide Heavy Gusseted Box Style Frame for superior strength
  • Oscillating Tandem Axles for flexibility w/3” Stress Proof Spindles & 8 Bolt Hubs
  • Clevis Hitch

CH4124 WALKING BEAM CHASSIS

  • Accommodates 22’ – 25’ TOTAL LENGTH (including the unit if applicable) Forage Boxes
  • 44,000# Capacity
  • 42” Wide Heavy Gusseted Box Style Frame for superior strength
  • Oscillating Tandem Axles for flexibility w/3” Stress Proof Spindles & 10 Bolt Hubs
  • Adjustable Tandem Axles to weight balance forage boxes

WBOC- 24/26 WALKING BEAM CHASSIS

  • Accommodates 23’ – 26’ TOTAL LENGTH (including the unit if applicable) Forage Boxes
  • 48,000# Capacity
  • 42” Wide Heavy Gusseted Box Style Frame for superior strength
  • Oscillating Tandem Axles for flexibility w/3” Stress Proof Spindles & 10 Bolt Hubs
  • 425 x 22.5 10 Bolt Used Truck Tires/New Rims
  • Greaseable Clevis Swivel Hitch

CH4126 SUSPENSION CHASSIS

  • Accommodates 24’ – 28’ TOTAL LENGTH (including the unit if applicable) Forage Boxes
  • 26 Ton Spring Suspension System w/13 Ton per Axle Rating
  • 34” Wide Heavy Gusseted Box-Style Frame
  • Bull Nose Hitch w/Jack

CH4130 SUSPENSION CHASSIS

  • Accommodates 30’ TOTAL LENGTH (including the unit if applicable) Forage Boxes
  • 32 Ton Spring Suspension System w/15 Ton per Axle Rating
  • 34” Wide Heavy Gusseted Box-Style Frame
  • Bull Nose Hitch w/Jack
Specifications
Model
Chassis
Category Name
Agriculture
Year
2021
Sale Type
New
Manufacturer
H&S
options

WBOC-18/20 WALKING BEAM CHASSIS OPTIONS

  • (4) 22.5 x 13.5 8 Bolt Rims w/425 x 22.5 Used Truck Tires
  • 4 Wheel Electrically Activated Brake System
  • 6-Point Scale System w/Monitor

CH4124 WALKING BEAM CHASSIS OPTIONS

  • (4) 21.5L x 16.1 18 Ply Tires/Wheels
  • (4) 550/45 x 22.5 16 Ply Tires on 20 x 22.5 10 Bolt Wheels
  • (4) 600/50 x 22.5 16 ply Tires on 20 x 22.5 10 Bolt Wheels
  • 4 Wheel Electrically Activated Brake System
  • 6-Point Scale System w/Monitor
  • Clevis Hitch or Bullnose Hitch

WBOC-24/26 WALKING BEAM CHASSIS OPTIONS

  • (4) 425 x 22.5 10 Bolt Used Truck Tires/Wheels
  • (4) 21.5L x 16.1 18 Ply Tires/Wheels
  • (4) 550/45 x 22.5 16 Ply Tires/Wheels
  • 4 Wheel Electrically Activated Brake System
  • 8-Point Scale System w/Monitor

CH4126 SUSPENSION CHASSIS OPTIONS

  • (4) 600/50 x 22.5 Flotation Tires/Rims
  • (4) 700/50 x 22.5 Flotation Tires/Rims
  • Hydraulic Brake Cylinder Package

CH4130 SUSPENSION CHASSIS OPTIONS

  • (4) 700/50 x 22.5 Flotation Tires/Rims
  • (4) 710/45R22.5 Flotation Tires/Rims
  • Hydraulic Brake Cylinder Package
models
4124
OVERALL LENGTH 29′ 5″
CAPACITY 44,000#
WEIGHT W/TIRES N/A
TIRE SIZE 425 x 22.5 TRUCK TIRES
TREAD WIDTH 90″
SPINDLES 3″ STRESS PROOF
HUBS 10 BOLT
STANDARD WHEEL 22.5 x 13
BRAKES ELEC. ACTIVATED OVER HYD. BRAKE SYSTEM W/CAB CONTROL BOX
BACK HITCH N/A
JACK STANDARD
24/26
OVERALL LENGTH 31′ 4″
CAPACITY 48,000#
WEIGHT W/TIRES 7150#
TIRE SIZE 425 x 22.5 TRUCK TIRES – 600/50 x 22.5 FLOATION TIRES
TREAD WIDTH 100″
SPINDLES 3″ STRESS PROOF
HUBS 10 BOLT – 12,000#
STANDARD WHEEL 22.5 x 13
BRAKES ELEC. ACTIVATED OVER HYD. BRAKE SYSTEM W/CAB CONTROL BOX
BACK HITCH N/A
JACK STANDARD

WARRANTY: SEE OERATORS MANUAL FOR WARRANTY DETAILS AND LIMITATIONS. H&S RESERVES THE RIGHT TO CHANGE ITS PRODUCTS OR THE DESCRIPTION AT ANY TIME WITHOUT NOTICE OR OBLIGATION. MODELS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
