ID # 14029175

H&S BALE TRANSPORTS

  • H&S BALE TRANSPORTS
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  Features

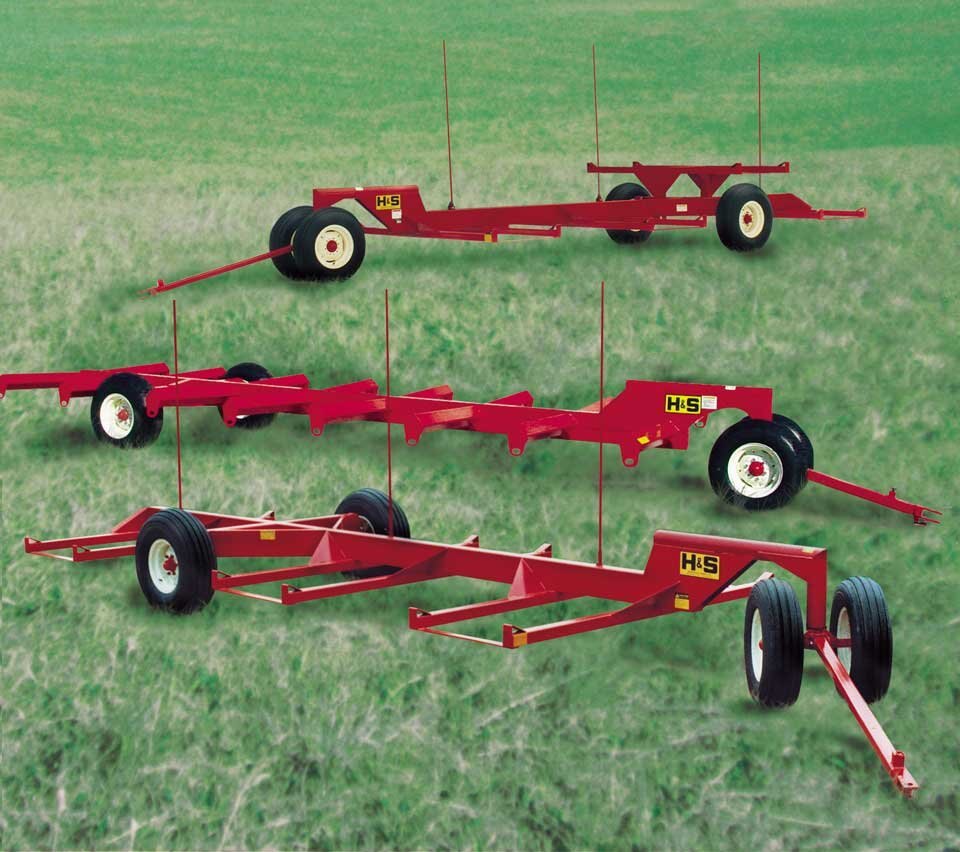

ROUND BALE TRANSPORTS
6 AND 8 BALE CAPACITIES

  • Uprights keep the bales from slipping off the bale cradle. (BT6/BT8)
  • 6′ high guide rods allow the operator to see for ease of loading. (BT6/BT8)
  • The center beam is made of strong 4″ x 8″ x 3/16″ steel tubing.
  • The optional bale cradle for over the rear axle will convert a 6 bale transport to an 8 bale transport. (BT6/BT8)
  • Bale cradle arms are 3/16″ square tubing, reinforced with gussets, and tied together with a flat metal strap to keep them from spreading. (BT6/BT8)
  • Tricycle design front wheels for short turning radius.
  • Tele-Pole with spring loaded locking pin.
  • Anchor points on bale arm endcaps for tying down bales. (BT814)
  • The BT814 has a 14,000# GVW Capacity.
  Features


Bale Cradle

The optional bale cradle for over the rear axle will convert a 6 bale transport to an 8 bale transport.

Guide Rods

6′ high guide rods allow the operator to see for ease of loading. The center beam is made of strong 4″ x 8″ x 3/16″ steel tubing. Bale cradle arms are 3/16″ square tubing, reinforced with gussets, and tied together with a flat metal strap to keep them from spreading.

Tricycle Design Wheels

Tricycle design front wheels for short turning radius. Tele-Pole with spring loaded locking pin. Anchor points on bale arm endcaps for tying down bales.


Uprights

Uprights keep the bales from slipping off the bale cradle.

 Specifications
BT814
OVERALL LENGTH (INCLUDING 6' TONGUE BT6 - BT8) 28′ 10″
OVERALL WIDTH 102″
BALE CRADLE Width - 41 ½″, Length - 49″
WEIGHT W/TIRES 2080#
TIRES Rear - 12.5 x 15, Front - 11 x 15
FRAME-MAIN BEAM 10″ x 4″ x 5/16″ Wall
BALE ARMS 5″ x 5″ x 3/16″ Wall
G.V.W. CAPACITY 14,000#
BT6 & BT8
OVERALL LENGTH (INCLUDING 6' TONGUE BT6 - BT8) 29′ 3″
OVERALL WIDTH 102″
BALE CRADLE Width - 29″, Length - 49″
WEIGHT W/TIRES 1570#
TIRES Rear - 12.5 x 15, Front - 9.5 x 15
FRAME-MAIN BEAM N/A
BALE ARMS N/A
G.V.W. CAPACITY N/A







Specifications
Model
BALE TRANSPORTS
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
H&S
