Overview
 FEATURES/OPTIONS

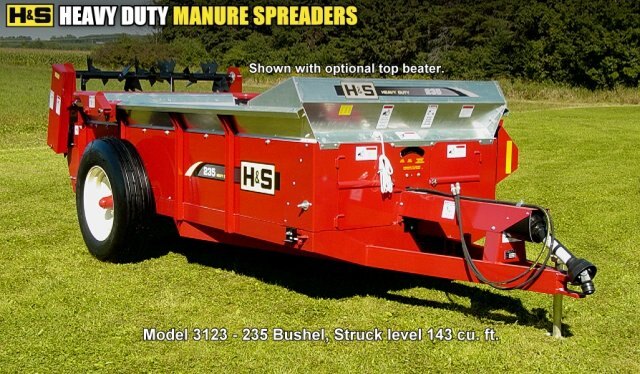

Model 3123 - 235 Bushel/Model 3127 - 270 Bushel

  • A massive unitized welded frame with heavy floor supports and side stakes, wrap around steel front corners. Strong rear main beater side panels are slanted for clearance and wider spread, and then welded to the strong 5" U channel side members compare with any on the market.
  • The side flares on all H&S "Heavy Duty" manure spreaders are made of 10 gauge g210 culvert grade galvanized steel.
  • Sides, front panel and both sides of the rear hydraulic end gate use fiberglass reinforced plywood to provide for easy cleaning and minimal freeze up. It also features a plastic coated plywood floor. Considerably less torque is needed to move a heavy load.
  • A front splash guard is standard equipment.
  • Greaseable bearings.
  • The drive utilizes the patented H&S 2 speed gear box. Shifting is all done in the enclosed two speed/beater shutoff gear box.
  • An optional variable speed hydraulic drive is also available.
  • A 29" diameter beater with 14 replaceable beater paddles. The beater has two types of paddles, blunt for widespread and sharp ripper type for cutting and shredding. The beater side wiper blades are also standard equipment.
  • An optional second hydraulic end gate cylinder is available. The hydraulic lines are run through a 3x3 tube under the floor. The upright position of the hydraulic cylinder stroke allows the gate to lift with the least strain at pivot points.
  • Adjustment for the main apron is easy, by simply loosening the two side bolts and drawing up the long bolt.
  • Unloading Speed for 3123 and 3127 - (2 speed gear box) High Speed: PTO speed 540 rpm's 8'9" per minute Low Speed: PTO speed 540 rpm's 4'9" per minute.
  • An optional top beater is available to provide load leveling and spreading of high heaped loads.
 FEATURES/OPTIONS

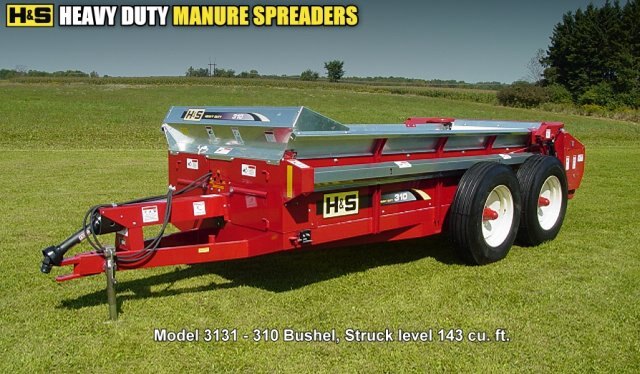

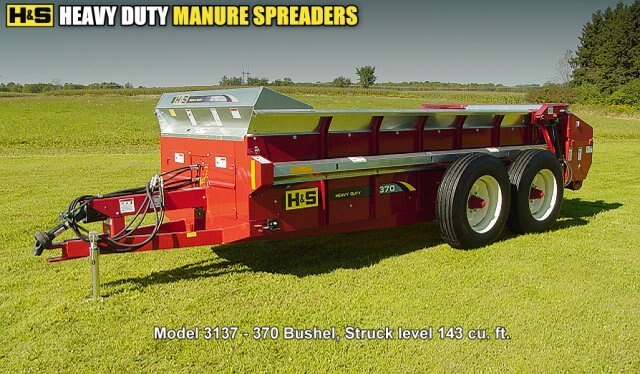

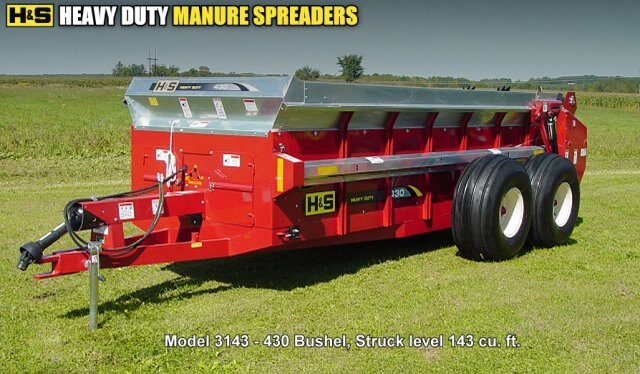

Model 3131 - 310 Bushel/Model 3137 - 370 Bushel/Model 3143 - 430 Bushel/Model W3143 - 430 Bushel

  • A massive unitized welded frame with heavy floor supports and side stakes, wrap around steel front corners. Strong rear main beater side panels are slanted for clearance and wider spread, and then welded to the strong 5" U channel side members compare with any on the market.
  • The side flares on all H&S "Heavy Duty" manure spreaders are made of 10 gauge g210 culvert grade galvanized steel.
  • Sides, front panel and both sides of the rear hydraulic end gate use fiberglass reinforced plywood to provide for easy cleaning and minimal freeze up. It also features a solid virgin grade poly floor. Considerably less torque is needed to move a heavy load.
  • A front splash guard is standard equipment.
  • Greaseable bearings.
  • The two-speed apron drive is standard equipment. An optional variable speed hydraulic drive is also available. As is an optional electric control for the hydraulic drive.
  • A 29" diameter beater with 14 replaceable beater paddles. The beater has two types of paddles, blunt for widespread and sharp ripper type for cutting and shredding. The beater side wiper blades are also standard equipment.
  • The hydraulic endgate features 2 cylinders as standard (optional on the 3131). The hydraulic lines are run through a 3x3 tube under the floor. The upright position of the hydraulic cylinder stroke allows the gate to lift with the least strain at pivot points.
  • H&S uses cast special steel alloy apron idler slides instead of idler sprockets making for years of dependable service.
  • Adjustment for the main apron is easy, by simply loosening the two side bolts and drawing up the long bolt.
  • Gear box mechanisms and drive for the beater and apron are Timken tapered roller bearing equipped. The beater drive gear box is 1-1/2" bevel gear oil bath equipped with a 4-jaw over running clutch for beater shut off. The apron drive is a 50:1 bronze worm gear with shear bolt protection.
  • The strong oil bath bevel gear box that powers the beater is tapered Timken roller bearing equipped. The gear box utilizes a 4-jaw beater shut off clutch and tractor sized spline shaft.
  • Unloading Speed for 3131, 3137, 3143, and W3143 - (2 speed chain drive) High Speed: PTO speed 540 rpm's 8'8.5" per minute Low Speed: PTO speed 540 rpm's 4'8.5" per minute.
  • An optional top beater is available to provide load leveling and spreading of high heaped loads. (Standard in models 3143 & W3143)

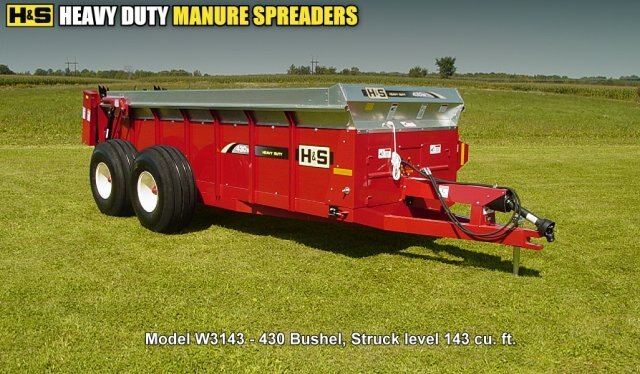

  • The W3143 (western) has all the same features as above with additional features such as double main frame channels, additional floor supports, 1045 hardened drive shaft, #80 drive chain and a heavy duty main gear box.
 FEATURES/OPTIONS

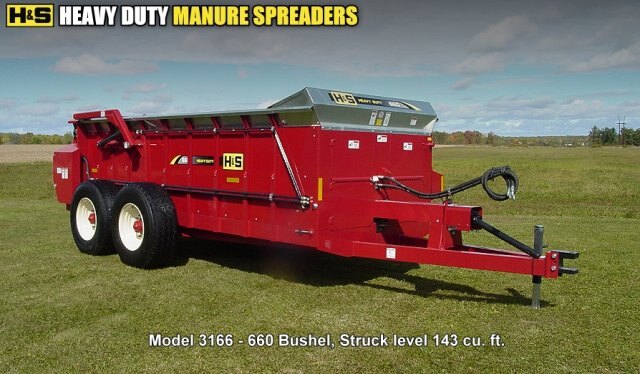

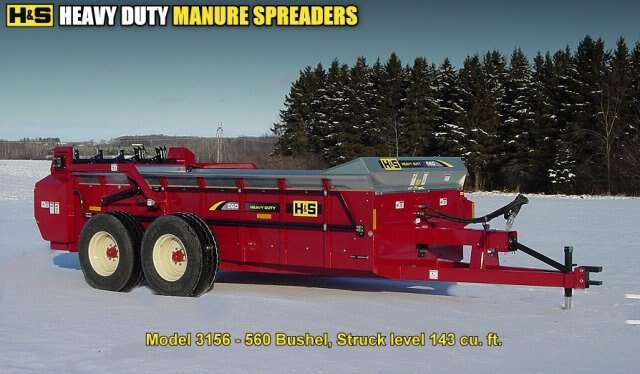

Model 3156 - 560 Bushel/Model 3166 - 660 Bushel

  • The 3156 and 3166 manure spreaders feature a heavy duty 7" structural Heavy Duty Manure Spreaders steel channel iron frame with a double channel iron pole for superior strength.
  • The box of the 3156 and 3166 spreaders consist of solid virgin grade poly floor, T-bar chain for a strong double main apron and plastic coated plywood sides, front, and endgate.
  • The 3166 running gear consists of stress proof 3" diameter spindles w/12000# hubs and a 4.5" stress proof axle pivot.
  • The 3156 features 425x22.5 used truck tires with 8000 lb. hubs.
  • The side flares on all H&S "Heavy Duty" manure spreaders are made of 10 gauge g210 culvert grade galvanized steel.
  • Variable speed hydraulic drive
  • Constant velocity PTO.
  • A rear side hinged door on the beater drive allows easy access for servicing and adjustment of the spring loaded tighteners. A heavy duty worm drive gear box, chain reduction, and a four jaw override beater clutch are H&S TOUGH!
  • A front splash guard is standard equipment.
  • Greaseable bearings.
  • The beater top is standard equipment and both beaters have 18 replaceable blades.
  • H&S uses cast special steel alloy apron idler slides instead of idler sprockets making for years of dependable service.
  • Adjustment for the main apron is easy, by simply loosening the two side bolts and drawing up the long bolt.
  • A second hydraulic endgate cylinder is standard.
 Features

Gearbox Gear Box


The drive for the 3123 spreader utilizes the patented H&S 2 speed gear box. Shifting is all done in the enclosed two speed/beater shutoff gear box. The sturdy hydraulic cylinder mount tube extends all the way through the frame to the other side.

Beaters Beaters


H&S Spreader model 3123 has a 29" diameter beater with 14 replaceable beater paddles. The beater has two types of paddles, blunt for widespread and sharp ripper type for cutting and shredding. The beater side wiper blades are also standard equipment on Model 3123.

Optionaltopbeater Optional Top Beater


Model 3123 can be equipped with the optional top beater to provide load leveling and spreading of high heaped loads.

Easycleanout Easy Clean Out


Sides, front panel and both sides of the rear hydraulic end gate on the 3123 uses fiberglass reinforced plywood to provide for easy cleaning and minimal freeze up. The 3123 model features a plastic coated plywood floor. Considerably less torque is needed to move a heavy load.

Sideflares Side Flares


The side flares on all H&S Heavy Duty manure spreaders are made of 10 gauge G210 culvert grade galvanized steel.

Unitizedweldedframe Unitized Welded Frame


H&S spreaders have a massive unitized welded frame with heavy floor supports and side stakes, wrap around steel front corners. Strong rear main beater side panels are slanted for clearance and wider spread, and then welded to the strong 5" U channel side members. Compare with any on the market.

Apronadjustment Apron Adjustment


Adjustment for the main apron is easy, by simply loosening the two side bolts and drawing up the long bolt.

Apronidlerslides Apron Idler Slides


H&S uses cast special steel alloy apron idler slides instead of idler sprockets making for years of dependable service.

2speedaprondrive 2 Speed Apron Drive

The two-speed apron drive is standard equipment on Model 3123. An optional variable speed hydraulic drive is also available.

Splashguard Splash Guard

Front splash guard is standard equipment on all heavy duty models.

Greasablebearings
Greasable Bearings

Greasable bearings on all models.

Unitizedweldedframe
Unitized Welded Frame

H&S spreaders have a massive unitized welded frame with heavy floor supports and side stakes, wrap around steel front corners. Strong rear main beater side panels are slanted for clearance and wider spread, and then welded to the strong 5" U channel side members. Compare with any on the market.

2speedaprondrive 2 Speed Apron Drive

The two-speed apron drive is standard equipment on Model 3127. An optional variable speed hydraulic drive is also available.

Easycleanout Easy Clean Out

Sides, front panel and both sides of the rear hydraulic end gate on the 3127 uses fiberglass reinforced plywood to provide for easy cleaning and minimal freeze up. The 3127 model features a plastic coated plywood floor. Considerably less torque is needed to move a heavy load.

Beaters Beaters

H&S Spreader model 3127 has a 29" diameter beater with 14 replaceable beater paddles. The beater has two types of paddles, blunt for widespread and sharp ripper type for cutting and shredding. The beater side wiper blades are also standard equipment on Model 3127.

Gearbox Gear Box

The drive for the 3127 spreader utilizes the patented H&S 2 speed gear box. Shifting is all done in the enclosed two speed/beater shutoff gear box. The sturdy hydraulic cylinder mount tube extends all the way through the frame to the other side.

2speedaprondrive 2 Speed Apron Drive

The two-speed apron drive is standard equipment on Model 3131. An optional variable speed hydraulic drive is also available.

Beaters
Beaters

H&S Spreader model 3131 has a 29" diameter beater with 14 replaceable beater paddles. The beater has two types of paddles, blunt for widespread and sharp ripper type for cutting and shredding. The beater side wiper blades are also standard equipment on Model 3131.

Gearbox Gear Box

Gear box mechanisms and drive for the beater and apron of Model 3131 is Timken tapered roller bearing equipped. The beater drive gear box is 1-1 1/2 bevel gear oil bath equipped with a 4-jaw over running clutch for beater shut off. The apron drive is a 50:1 bronze worm gear with shear bolt protection.

2speedaprondrive
2 Speed Apron Drive

The two-speed apron drive is standard equipment on Model 3137. An optional variable speed hydraulic drive is also available.

Easycleanout Easy Clean Out

Sides, front panel and both sides of the rear hydraulic end gate on the 3137 uses fiberglass reinforced plywood to provide for easy cleaning and minimal freeze up. The H&S 3137 model has a solid virgin grade poly floor. Considerably less torque is needed to move a heavy load.

Beaters Beaters

H&S Spreader model 3137 has a 29" diameter beater with 14 replaceable beater paddles. The beater has two types of paddles, blunt for widespread and sharp ripper type for cutting and shredding. The beater side wiper blades are also standard equipment on Model 3137.

Secondhydraulicendgatecylinder Second Hydraulic Endgate Cylinder

A semi-liquid hydraulic end gate is standard equipment on all models. A second hydraulic endgate cylinder is standard on the 3137.

Gearbox Gear Box

Gear box mechanisms and drive for the beater and apron of Model 3137 is Timken tapered roller bearing equipped. The beater drive gear box is 1-1 1/2 bevel gear oil bath equipped with a 4-jaw over running clutch for beater shut off. The apron drive is a 50:1 bronze worm gear with shear bolt protection.

Easycleanout Easy Clean Out

Sides, front panel and both sides of the rear hydraulic end gate on the 3143 uses fiberglass reinforced plywood to provide for easy cleaning and minimal freeze up. The H&S 3143 model has a solid virgin grade poly floor. Considerably less torque is needed to move a heavy load.

Beaters Beaters

H&S Spreader model 3143 has a 29" diameter beater with 14 replaceable beater paddles. The beater has two types of paddles, blunt for widespread and sharp ripper type for cutting and shredding. The beater side wiper blades are also standard equipment on Model 3143.

Secondhydraulicendgatecylinder Second Hydraulic Endgate Cylinder

A semi-liquid hydraulic end gate is standard equipment on all models. A second hydraulic endgate cylinder is standard on the 3143.

Easycleanout Easy Clean Out

Sides, front panel and both sides of the rear hydraulic end gate on the W3143 uses fiberglass reinforced plywood to provide for easy cleaning and minimal freeze up. The H&S W3143 model has a solid virgin grade poly floor. Considerably less torque is needed to move a heavy load.

Frame Frame

The 3156 manure spreader features a heavy duty 7" structural steel channel iron frame with a double channel iron pole for superior strength and comes standard with variable speed hydraulic drive and constant velocity PTO.

Box Box

The box of the 3156 spreader consists of solid virgin grade poly floor, T-Bar chain for a strong double main apron and plastic coated plywood sides, front, and endgate.

Beatertop Beater Top

The beater top is standard equipment and both beaters have 18 replaceable blades.

Drive Drive

A rear side hinged door on the beater drive allows easy access for servicing and adjustment of the spring loaded tighteners. A heavy duty worm drive gear box, chain reduction, and a four jaw override beater clutch are H&S tough!

Hydraulicdrive Hydraulic Drive

Variable speed hydraulic drive is standard.
  Specifications

MODEL 3123 3127 3131 3137 3143
&
W3143		 3156 3166
CAPACITY - OLD RATING 235 B.U. 270 B.U. 310 B.U. 370 B.U. 430 B.U. 560 B.U. 660 B.U.
CAPACITY CU. FT. STRUCK LEVEL 143 167 185 235 275 353 479
TOP OF FLARE WIDTH 68" (173 CM) 68" (173 CM) 68" (173 CM) 68" (173 CM) 68" (173 CM) 89½" (227 CM) 89½" (227 CM)
INSIDE WIDTH 60" (152 CM) 60" (152 CM) 60" (152 CM) 60" (152 CM) 60" (152 CM) 80" (203 CM) 80" (203 CM)
INSIDE LENGTH 12'1" (3.7 M) 14'1" (4.3 M) 15'7" (4.8 M) 16'6" (5.1 M) 16'6" (5.1 M) 17'5" (5.3 M) 17'5" (5.3 M)
INSIDE DEPTH 28 3/8" (72 CM) 28 3/8" (72 CM) 28 3/8" (72 CM) 34 3/8" (87 CM) 40 3/8" (102 CM) 36" (91 CM) 49" (124 CM)
OVERALL WIDTH W/STANDARD TIRES 94 1/2" (240 CM) 94 1/2" (240 CM) 98" (249 CM) 98" (249 CM) 112" (285 CM) 131" (333 CM) 131" (333 CM)
OVERALL LENGTH 18'6" (5.7 M) 20'5.5" (6.3 M) 21'11.5" (6.7 M) 23'2.5" (7.1 M) 23'2.5" (7.1 M) 26'10" (10.2 M) 26'10" (10.2 M)
OVERALL LOADING HEIGHT-TOP OF FLARE 51.5" (131 CM) 51.5" (131 CM) 51.5" (131 CM) 57.5" (1.5 M) 63" (160 CM) 63.5" (161 CM) 78.75" (200 CM)
OVERALL HEIGHT W/HYD. ENDGATE 55" (140 CM) 55" (140 CM) 55" (140 CM) 61" (1.5 M) 63.5" (161 CM) 78"* (198 CM) 83" (211 CM)
DIAMETER OF BEATER 29" (74 CM) 29" (74 CM) 29" (74 CM) 29" (74 CM) 29" (74 CM) 29" (74 CM) 29" (74 CM)
MAIN APRON CHAIN T-ROD T-ROD T-ROD T-ROD T-ROD T-BAR T-BAR
UPPER BEATER OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL STANDARD STANDARD
SPINDLE SIZE 2" (5 CM) 2.5" (6 CM) 2..25" (6 CM) 2.5" (6 CM) 2.5" (6 CM) 3" (8 CM) 3" (8 CM)
