Overview
  2180/2112/2117 Features

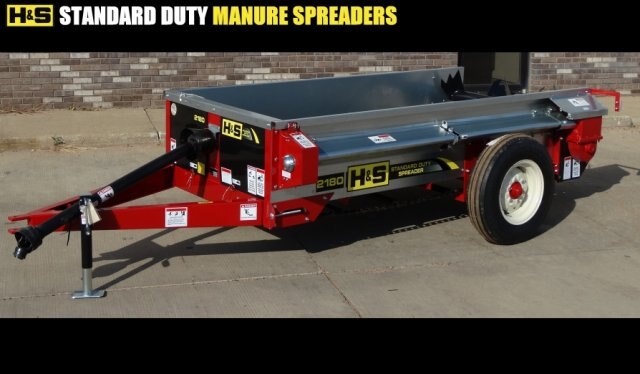

  • Heavy Duty Steel A-frame and hitch assembly are built to withstand the stress of heavy loads and rough fields.(2180 & 2112)

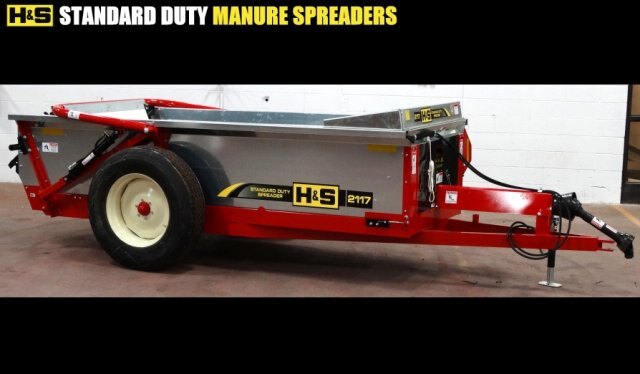

  • All welded heavy duty A-frame hitch assembly and full length unitized main frame.(2117)
  • Heavy duty 2-speed apron drive system plus beater shutoff for a positive drive and long life.
  • A heavy duty beater assembly assures aggressive shredding action with even wide spread patterns.
  • Spreader box sides are constructed of corrosion resistant galvanized steel.
  • Main apron tightener bolts are located outside on the lower right and left corners of the main frame.
  Features

Spreader Box
Spreader Box

The spreader box sides are constructed of corrosion resistant galvanized steel. All models have the main apron tightener bolts located outside on the lower right and left corners of the main frame.

Beater Beater

Shown with optional rear trip pan. The heavy duty 10 paddle beater assembly assures aggressive shredding action with even wide spread patterns.

Beater Drive Beater Drive

Shifting on the 2180 is done in the H&S two spread gear box plus beater shutoff.

Beater Beater

The large diameter beater on Model 2112 provides an even spread pattern.

Drive Drive

Shifting on the 2112 is done in the H&S two spread gear box plus beater shutoff.

Beater Beater

The large diameter beater on Model 2117 provides an even spread pattern.
   Specifications
MODEL 80 PTO 125 PTO 175 PTO
CAPACITY – HEAPED (OLD RATING) BU. 80 bu. 125 bu. 175 bu.
CAPACITY – CU. FT. STRUCK LEVEL 53 75 105
TOP OF FLARE WIDTH 48" (122 cm) 54" (137 cm) 63-1/2" (161 cm)
INSIDE WIDTH 48" (122 cm) 48" (122 cm) 54" (137 cm)
INSIDE LENGTH 7'4" (223 cm) 10'6" (320 cm) 11'1" (338 cm)
INSIDE DEPTH 19-3/4" (50 cm) 22" (56 cm) 25-3/4" (65 cm)
OVERALL LENGTH 13'10" (422 cm) 15'3" (465 cm) 17'8" (538 cm)
OVERALL LOADING HEIGHT – TOP OF FLARE 35" (89 cm) 43-1/2" (110 cm) 45-1/2" (116 cm)
OVERALL HEIGHT W/HYD. ENDGATE N/A N/A 49"
OVERALL WIDTH W/STANDARD TIRES 76" (193 cm) 80" (203 cm) 83-1/2" (212 cm)
STANDARD TIRE SIZE 6.70 x 15 10.00 x 15 9.00 x 20
SPINDLE SIZE 2" (5 cm) 2" (5 cm) 2" (5 cm)
DIAMETER OF BEATER 18-1/2" (47 cm) 22" (56 cm) 27" (68 cm)
NUMBER OF PADDLES 10 10 8
MAIN APRON CHAIN 67H 67H T-rod
BOX CONSTRUCTION Corrosion Resistant Galvanized Steel Corrosion Resistant Galvanized Steel Corrosion Resistant Galvanized Steel



Specifications
Model
Standard Duty
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
H&S
