Overview

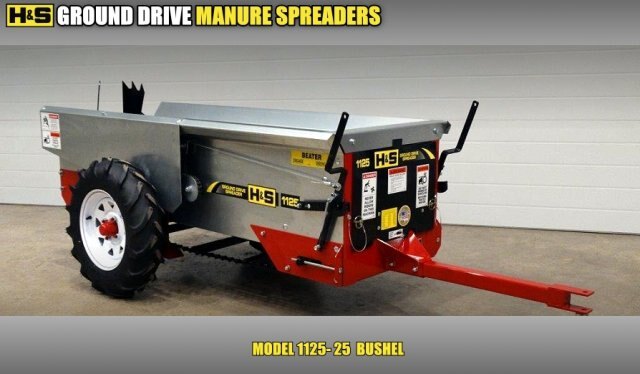

  MODEL 1125
  • 6 x 12 Deep Lug traction tires.
  • The beater on Model 1125 is 20" in diameter and with 8 paddles provides an even spread of material.
  • Seperate Apron Engage/Disengage Lever - Beater Engage/Disengage Lever.

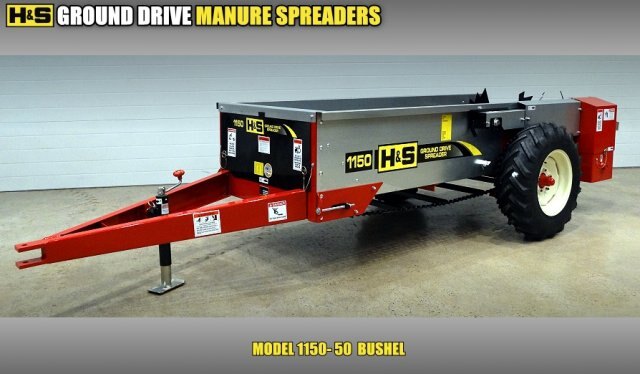

  MODEL 1150
  • Deep Lug - 7.60 x 15 traction tires.
  • The Model 1150 uses a heavy duty 8 paddle beater assembly.
  • The Beater is chain driven. The main apron is driven by a simple adjustable ratchet drive mechanism.
  • To engage the beater and main apron on Model 1150, lower the control lever.
  MODEL 1180
  • Deep Lug - 7.60 x 15 traction tires.
  • The Model 1180 uses a heavy duty 8 paddle beater assembly.
  • The Beater is chain driven. The main apron is driven by a simple adjustable ratchet drive mechanism.
  • To engage the beater and main apron on Model 1180, lower the control lever.
  Features

Beater Beater

The beater on Model 1125 is 20" in diameter and with 8 paddles provides an even spread of material. Shown with optional fine spread pan.

Spreader Box Spreader Box

The spreader box sides are constructed of corrosion resistant galvanized steel. The 1125, 1150, and 1180 main apron tightener bolts are located outside on the lower right and left corners of the main frame.

Apron Beater Engage Apron Beater Engage

Apron Engage/ Disengage Lever Beater Engage/ Disengage Lever

Spreader Box Spreader Box

The spreader box sides are constructed of corrosion resistant galvanized steel. The 1125, 1150, and 1180 main apron tightener bolts are located outside on the lower right and left corners of the main frame.

Drive Drive

To engage the beater and main apron on Model 1150 lower the control lever.

Beater Beater

The Model 1150 uses a heavy duty 8 paddle beater assembly.

Beater Drive Beater Drive

Shown with safety shields removed. The Beater is chain driven. The main apron is driven by a simple adjustable ratchet drive mechanism.

Spreader Box Spreader Box

The spreader box sides are constructed of corrosion resistant galvanized steel. The 1125, 1150, and 1180 main apron tightener bolts are located outside on the lower right and left corners of the main frame.
  Specifications
MODEL 1125 1150 1180
CAPACITY – HEAPED (OLD RATING) BU. 25 bu. 50 bu. 80 bu.
CAPACITY – CU. FT. STRUCK LEVEL 13.6 35 47
TOP OF FLARE WIDTH 28-1/2" (73 cm) 36" (91 cm) 48" (122 cm)
INSIDE WIDTH 22" (56 cm) 36" (91 cm) 48" (122 cm)
INSIDE LENGTH 6' (183 cm) 8'1" (264 cm) 7'1" (216 cm)
INSIDE DEPTH 17" (43 cm) 17-1/2" (44 cm) 17-1/2" (44 cm)
OVERALL LENGTH 9'1" (277 cm) 13'4" (406 cm) 13'4" (406 cm)
OVERALL LOADING HEIGHT – TOP OF FLARE 30" (76 cm) 32-1/2" (82 cm) 33" (84 cm)
OVERALL HEIGHT W/HYD. ENDGATE N/A N/A N/A
OVERALL WIDTH W/STANDARD TIRES 42" (107 cm) 58" (147 cm) 72" (183 cm)
STANDARD TIRE SIZE 6.00 x 12 7.60 x 15 7.60 x 15
SPINDLE SIZE 1-1/4" (3 cm) 1-3/4" (4 cm) 2" (5 cm)
DIAMETER OF BEATER 20" (51 cm) 17-1/2" (44 cm) 18-1/2" (47 cm)
NUMBER OF PADDLES 8 8 10
MAIN APRON CHAIN 55 62 67H
BOX CONSTRUCTION Corrosion Resistant Galvanized Steel Corrosion Resistant Galvanized Steel Corrosion Resistant Galvanized Steel





Specifications
Model
Ground Drive Spreaders
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
H&S
