ID # 13613707

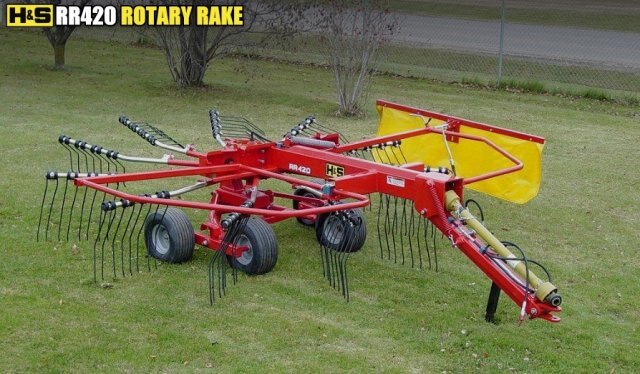

H&S Rotary Rakes

  • H&S Rotary Rakes
  • H&S Rotary Rakes
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

ROTARY RAKE

  • The adjustable front cylinder allows users to fine tune pitch the rake.
  • A constant velocity P.T.O. with slip clutch lets the operator make even, uniform windows even in tight corners.
  • Tine arm storage.
  • Sealed oil bath gearbox.
  • Hydraulic lift cylinder.
  • Tandem axle walking beam with 18x8.5x8 tires.
  • Ground height adjustment.
  • Adjustable swath shield.
  • Quick remove tine arms.
  Features

Adjustable CamGear Box


A. Sealed oil bath gearbox. B. Tine arm storage. C. Hydraulic lift cylinder.

Height Adjustment
Height Adjustment


A. Ground height adjustment. B. Quick remove tine arms.

Walking Beam Walking Beam


A. Tandem axle walking beam with 18x8.5x8 tires. B. Adjustable swath shield.

Front Cylinder Front Cylinder


A. The adjustable front cylinder allows users to fine tune pitch the rake. B. A constant velocity P.T.O. with slip clutch lets the operator make even, uniform windows even in tight corners



Specifications
Model
Rotary Rakes
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
H&S
NUMBER OF ARMS
11
NUMBER OF DOUBLE TINES PER ARM
4
WORKING WIDTH
13' 8''
GEAR BOX
Sealed in Oil Bath
ROTOR DIAMETER (WORKING WIDTH)
11' 2''
TRANSPORT WIDTH
5' 9''
PTO DRIVELINE WITH SLIP CLUTCH
540 rpm Constant Velocity Overload Protects Gearbox
TIRES
4 Mounted On Tandem Axles 18X8.5x8
HP REQUIRED
30/45
WEIGHT
1369 lbs
