H&S V-Rakes

  • H&S V Rakes
  • H&S V Rakes
  • H&S V Rakes
  • H&S V Rakes
  • Video Button Hqdefault
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

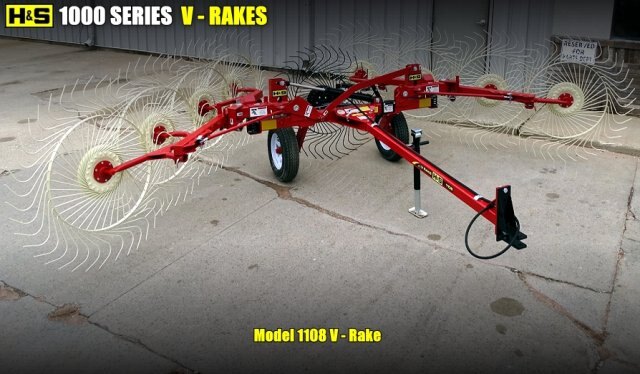

1108/1110/1112 Features:

  • The Rake Arm Pivot Joint provides flexibility for the rake beam in uneven ground conditions unlike most competitors.
  • The Rake Wheel Pivots also provides additional ground flexibility.
  • Raking width on the 1100 series rakes can be adjusted to 3 different positions with the pin and fine-tuned by adjusting the turnbuckle screw. The hitch jack is used to adjust the windrow width.
  • A single acting cylinder coupled with a simple linkage system allows for easy raising and lowering of rake wings.

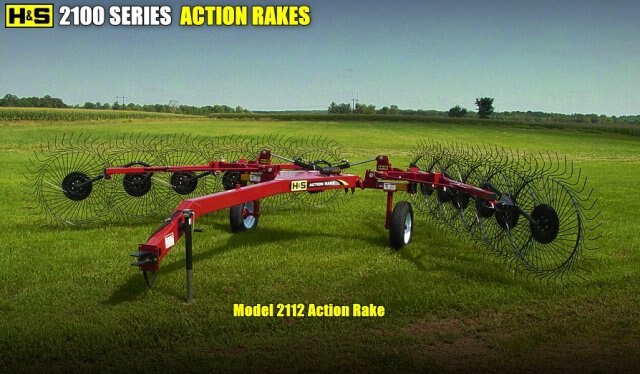

2108/2110/2112 Features:

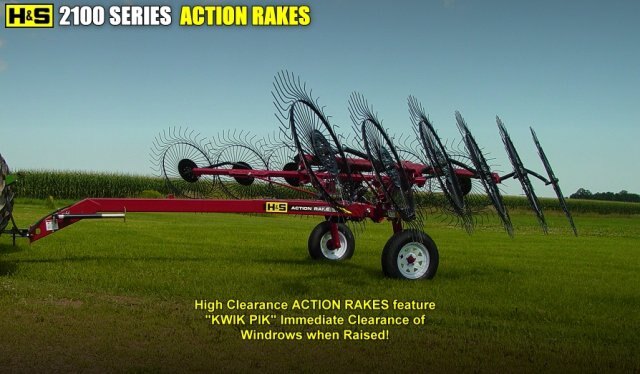

  • High Clearance Action Rakes features a "KWIK PIK" (patent pending) system for immediate clearance of windrows when raised, as well as greater clearance in the raking position and stability during transport.
  • An Adjustable Hitch allows you to level the rake for efficient raking.
  • Right and left side raking is done easily by turning either one of the wing transport valves off.
  • A 49" Center Kicker Wheel is optional on all Action Rakes.
  •  The hitch jack is used to adjust the windrow width as shown.
  • Raking width is easily adjusted by a single pin & clip, and can be fine-tuned with the threaded turnbuckle screw.
  • The operator can adjust the fine tune spring to allow proper rake wheel down pressure on each arm of either rake.
  Features

Adjustable HitchAdjustable Hitch


Adjustable Hitch to level the rake.

Hitch JackHitch Jack


The hitch jack is used to adjust the windrow width as shown. Raking width is easily adjusted by a single pin & clip.

Wing Transport Valve Wing Transport Valve


RIGHT and LEFT side raking is done easily by turning either one of the wing transport valves off.

Fine Tune Spring Fine Tune Spring

The operator can adjust the fine tune spring to allow proper rake wheel down pressure on each arm of either rake.

Rake Arm Pivot Joint Rake Arm Pivot Joint


The Rake Arm Pivot Joint provides flexibility for the rake beam in uneven ground conditions unlike most competitors.

Rake Wheel Pivot
Rake Wheel Pivot


The Rake Wheel Pivot also provides additional ground flexibility.

Rake Wheel Pivot Rake Wheel Pivot


The Rake Wheel Pivot also provides additional ground flexibility.

Rake Arm Pivot Joint Rake Arm Pivot Joint

The Rake Arm Pivot Joint provides flexibility for the rake beam in uneven ground conditions unlike most competitors.

Raking Width Raking Width

Raking width on the H&S CR rakes can be adjusted to 3 different positions with the pin and fine tuned by adjusting the turnbuckle screw. The hitch jack is used to adjust the windrow width as shown.

Center Kicker Wheel Center Kicker Wheel

A 49" Center Kicker Wheel is optional on the 1100 and 2100 Series Rakes.

Linkage System Linkage System

A single acting cylinder coupled with a simple linkage system allows for easy raising and lowering of rake wings.

Fine Tune Spring Fine Tune Spring

The operator can adjust the fine tune spring to allow proper rake wheel down pressure on each arm of either rake.
 Specifications
ACTION (AR) V-RAKE 2108 2110 2112
NUMBER OF RAKE WHEELS 8 10 12
WHEEL DIAMETER 60” 60” 60”
TEETH PER WHEEL 40 40 40
TOOTH DIAMETER 7.5mm 7.5mm 7.5mm
RAKE WHEEL HUBS Tapered Bearings Tapered Bearings Tapered Bearings
TRANSPORT WIDTH 10’ 10’8” 12’
TRANSPORT LENGTH 17’ 19’ 21’6”
TRANSPORT HEIGHT IN TRANSPORT POSITION 86” 101” 105”
RAKING WIDTH 15’ - 19’ 18’ - 22’ 20’ -24’
WINDROW WIDTH ADJUSTMENT 3’ - 5’ 4’ - 6’ 4’ - 6’
NO. OF RAKING POSITIONS W/TRANSPORT POSITION 6 10 10
GROUND PRESSURE RAKE WHEEL ADJUSTMENT Adjustable Tension Spring Adjustable Tension Spring Adjustable Tension Spring
ACTION CYLINDER - RAISE/LOWER 4 1/2” 4 1/2” 4 1/2”
WING CYLINDERS 2” 2” 2”



Specifications
Model
V-Rakes
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
H&S
