ID # 13613698

H&S FORAGE BLOWER

  • H&S FORAGE BLOWER
  • H&S FORAGE BLOWER
  • H&S FORAGE BLOWER
  • H&S FORAGE BLOWER
  • H&S FORAGE BLOWER
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

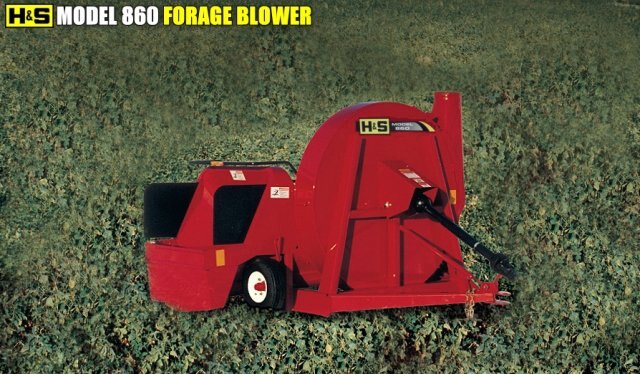

MODEL 860 FORAGE BLOWER

  • The hinged blower outlet assembly is removable for easy inspection and maintenance of the cupped paddles.
  • A built in crank is provided for each wheel to allow for leveling the blower, and to raise/lower the blower for transport.
  • Transport wheels are equipped with bearings, not bushings.
  • The 12 inch diameter feed auger is positioned at a 30 degree angle to the blower which moves material freely into the blower for maximum capacity.
  • Cupped replaceable blower paddles mounted in front of the rotating side back plate provide unsurpassed free movement of material from the 30 degree angle feed auger without any loss of momentum.
  • A simple over-center clutch linkage will engage and disengage auger. The easy fill hopper extends 20" from the blower housing and is equipped with flexible wind deflectors.
  Features

HopperHopper


A simple over-center clutch linkage will engage and disengage auger. The easy fill hopper extends 20 inches from the blower housing and is equipped with flexible wind deflectors.

Feed Auger Feed Auger

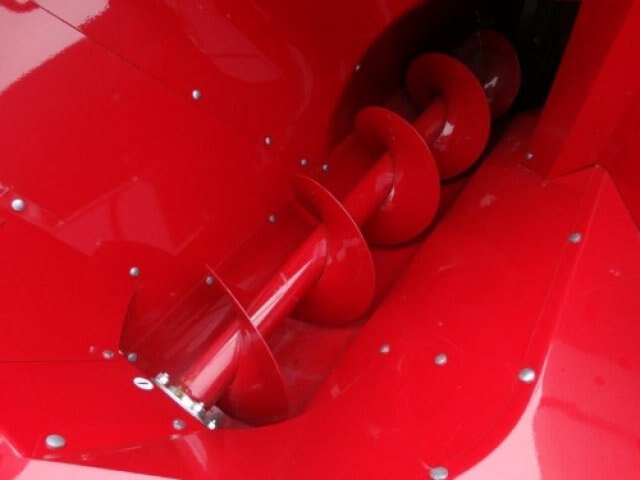

The 12 inch diameter feed auger is positioned at a 30 degree angle to the blower which moves material freely into the blower for maximum capacity.

Height Adjustment Height Adjustment

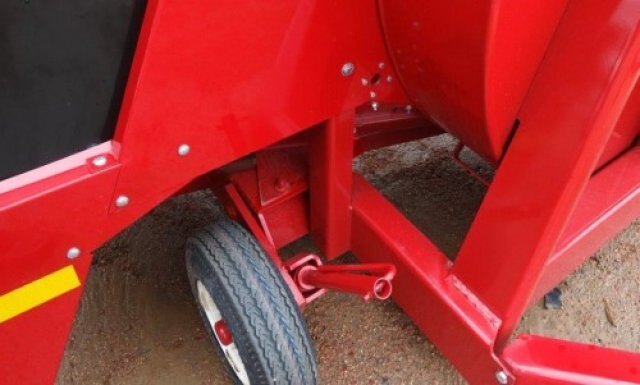

A built in crank is provided for each wheel to allow for height adjustment for different sized forage boxes and also allows you to raise and lower the blower for transport. Transport wheels are equipped with bearings, not bushings.

Blower OutletBlower Outlet

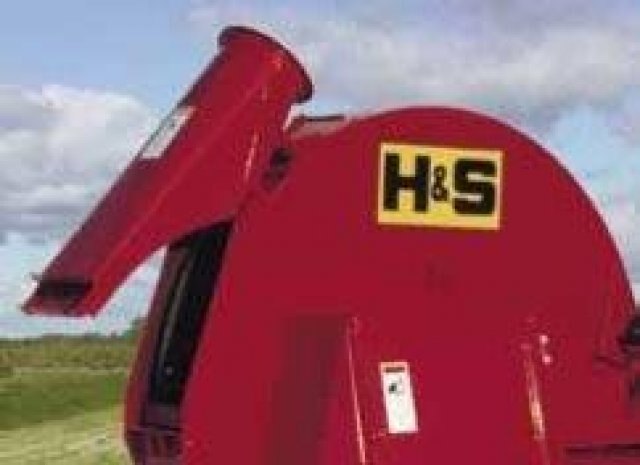

The hinged blower outlet assembly is removable for easy inspection and maintenance of the cupped paddles.

Blower Paddles Blower Paddles


Cupped replaceable blower paddles mounted in front of the rotating side backplate provide unsurpassed free movement of material from the 30 degree angle feed auger without any loss of momentum.





Specifications
Model
FORAGE BLOWER
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
H&S
BLOWING HEIGHT*
OVER 100 FEET
CAPACITY: CORN SILAGE
UP TO 180 TON PER HOUR
CAPACITY: HAYLAGE
UP TO 100 TON PER HOUR
DIRECT PTO DRIVE
540 RPM
BLOWER HOUSING
60'' DIAMETER/9'' WIDTH
BLOWER PADDLES - ADJUSTABLE
8
BLOWER PADDLE TIP SPEED
8480 FT./MIN.
BLOWER OUTLET
9''
HOPPER CONVEYOR
12'' AUGER
HOPPER WIDTH
37''
LENGTH
9'
WIDTH
8.3'
HEIGHT
5.5' TO 6.2'
WEIGHT
1615 LBS.
TIRE SIZE
480 X 8
