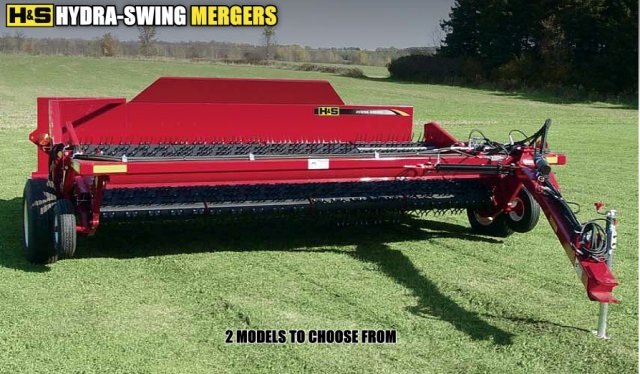

HSM9 & HSM12 HYDRA-SWING MERGERS

• H&S Hydra-Swing Mergers distribute material smoothly and evenly without bunching. Save time and money by combining 2 or 3 windrows from 9' to 18' cuts.
• With the Hydra-Swing style tongue, the merger can be pulled directly behind the tractor or swung out to the right to fit your operation.
• Hydraulically folding the optional 2', 4', or 6' extension out of the way, and turning the hydraulic valve to the off position, the Hydra-Swing Merger's unique design can also be used for merging small mower conditioner windrow applications.
• A tractor mounted electric control box directs hydraulic oil flow to swing the tongue or raise and lower the pickup on the Hydra-Swing Mergers.
• An optional self-contained hydraulic drive kit with P.T.O. pump is available. This feature allows tractors with a minimum 5 G.P.M. hydraulic capacity and 1 remote to operate the merger.

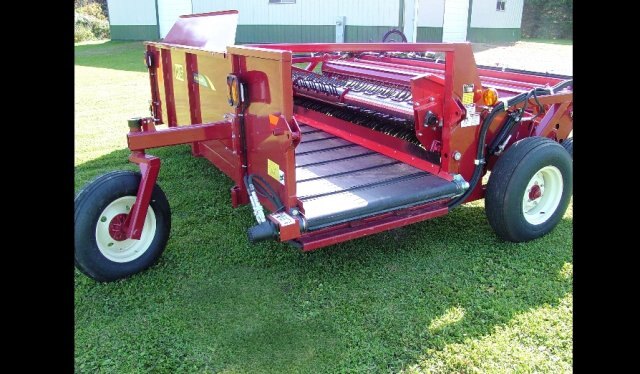

• A heavy duty 42" wide, ribbed cross conveyor easily accommodates the massive flow of material. A cross conveyor shut-off is optional on all Hydra-Swing Mergers.
• Replaceable three prong plastic teeth handle the crop gently and the high rear panel prevents spillage over the back.
• The gauge wheels and crop roller are easily set to crop conditions just by removing and replacing the pins in the desired setting.
• The pick-up head crop roller is adjustable for height and tension.
• Both models feature independent head flotation and a 42" cross conveyor belt for hi-capacity.
• The cross conveyor speeds up when the pickup speed is increased.
• The right hand side merges, and with the optional inverter shield, the left hand side inverts.
• Transport lights are standard equipment.
