H&S 7 + 4 FEEDER BOX

  • H&S 7 + 4 FEEDER BOX
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  Features

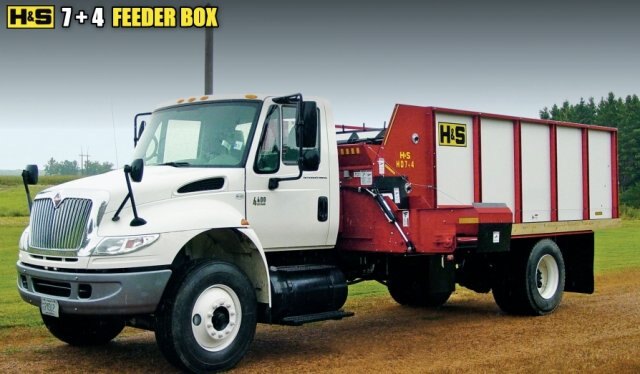

 7 + 4 FEEDER BOX

  • The H&S Feeder Box is available in 16' or 18' models in either Front Unload, or Front & Rear Unload.
  • Feeder Box can be mounted on a 12 ton tandem chassis with 12.5L x 15 tires, truck mounted, or running gear mounted.
  • A very simple, easy to operate electric-over-hydraulic control box mounts on the tractor or in the truck cab.
  •  Available with an optional scale system for truck or chassis mount.
  Features

Controlbox Control Box

The very simple, easy to operate electric-over-hydraulic control box mounts on the tractor or in the truck cab.

Dischargeheight
Discharge Height


This shows the discharge height in elevated position.

Unloadingposition Unloading Position


This shows the feeder elevator in the level unloading position to illustrate reach from side of box. Available in either front unload or front and rear unload.



Specifications
Model
7 + 4 FEEDER BOX
Category Name
Agriculture
Year
2016
Sale Type
New
Manufacturer
H&S
CROSS CONVEYOR WIDTH
22''
POWER
HYDRAULIC DRIVE
HYDRAULIC REQUIREMENTS
(2000 PSI, 10 GPM.)
FEEDER APRON DRIVE
WORM GEAR (BRONZE)
SPEEDS
INFINITE VARIABLE
MAIN APRONS
4 CHAINS - 667H PINTLE
BEATERS
2-18'' DIAMETER, 4 SPIRAL BAR
BEATER DRIVE
#50 ROLLER CHAIN
CROSS CONVEYOR
#550 ROLLER CHAIN OR ANGLE CROSS SLATS
CROSS CONVEYOR DRIVE
SPROCKET AND #50 ROLLER CHAIN
DISCHARGE
LEFT SIDE UNLOADING ELEVATOR
DISCHARGE OPENING
LEFT SIDE UNLOADING ELEVATOR
DISCHARGE HEIGHT
16'
INSIDE LENGTH
7' 4''
INSIDE WIDTH
48''
