The H&S GM170 offers the convenience, dependability and smoothness of hydraulically operated feed making on your farm.

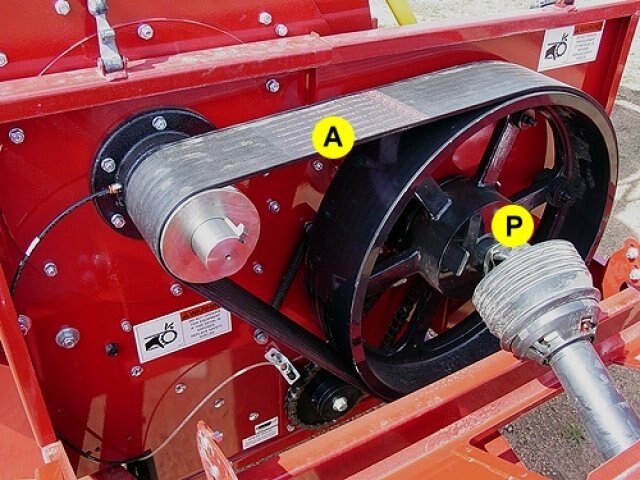

• The PTO driven 21" grinder mill features an eight "A" section banded V-belt for a positive drive and a quick release pin to disengage the mill.

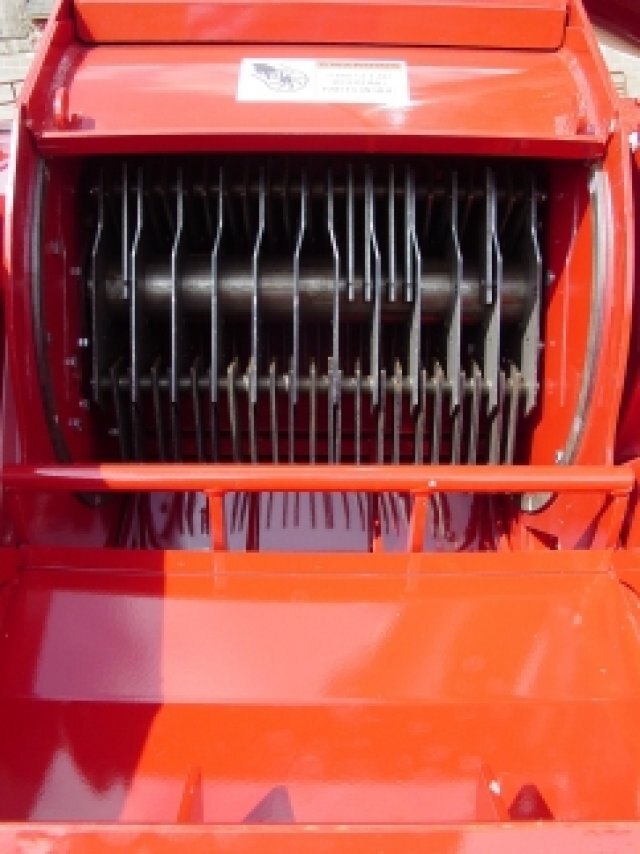

• Sixty-six thin hammers reduce horsepower requirements, cutting the material - not pounding it. Cutting action occurs against the throat plate while a suction fan pulls the ground feed through the screens. This allows for a more uniform mix for ration control.
• Twelve screens are available with sizes ranging from 1/8" to 2" in diameter to grind the grain to the consistency that you desire.

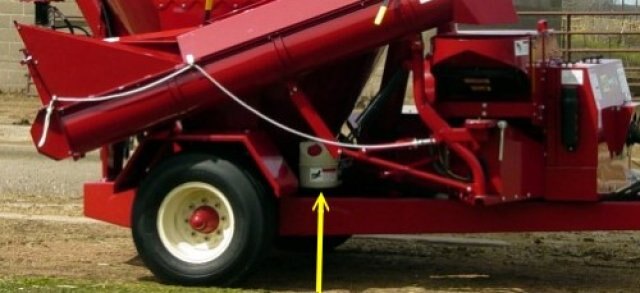

• The Cyclonic Reservoir provides circulation to cool the oil. The hydraulic motor provides a flow of 10.5 GPM with a 10 micron oil filter.

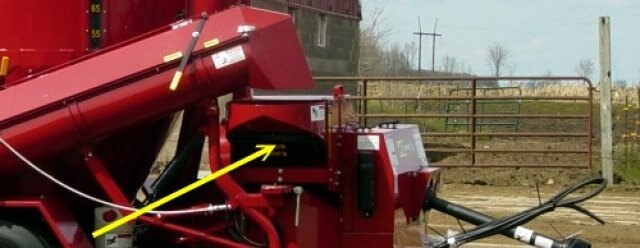

• Two heavy-duty 4" x 18" magnets remove any metal that may accidentally mix with the material entering the mill.

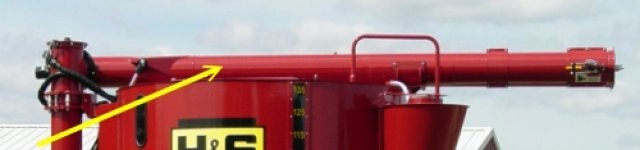

• The 300 degree swing radius of the unloading auger allows repositioning of the discharge auger from one side of the machine to the other without moving the grinder-mixer.

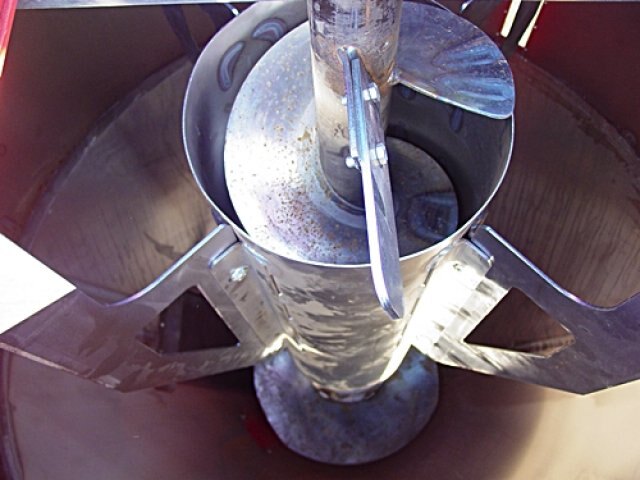

• A 14" mixing auger with a 30" base provides superior mixing uniformity.
• An adjustable slip clutch on the auger rotation provides protection if foreign objects are encountered..

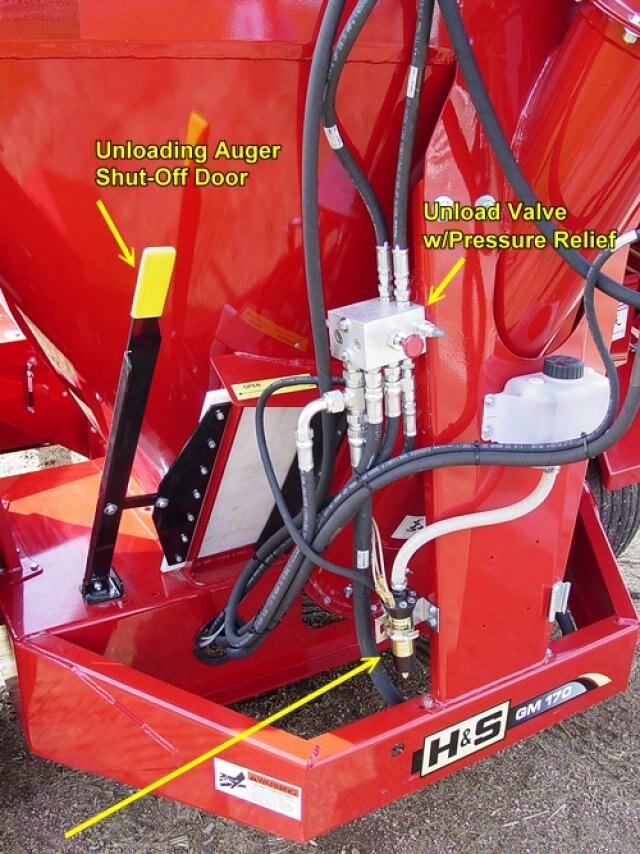

• A slide style door provides easy opening for unloading. The automatic chain oiler system oils the drive chains when the discharged auger is raised.
• A 12" diameter by 7' long hydraulic variable speed swinging intake auger (SIA) moves grain, ear corn, shelled corn, or other miscellaneous grains into the mill with ease. The hydraulic variable speed control allows you to keep the mill at maximum capacity.
• The grinder mixer drive system is protected with an overrunning clutch for a smooth shut-down.
• The Cyclonic Reservoir provides circulation to cool the oil. The hydraulic motor provides a flow of 10.5 GPM with a 10 micron oil filter.

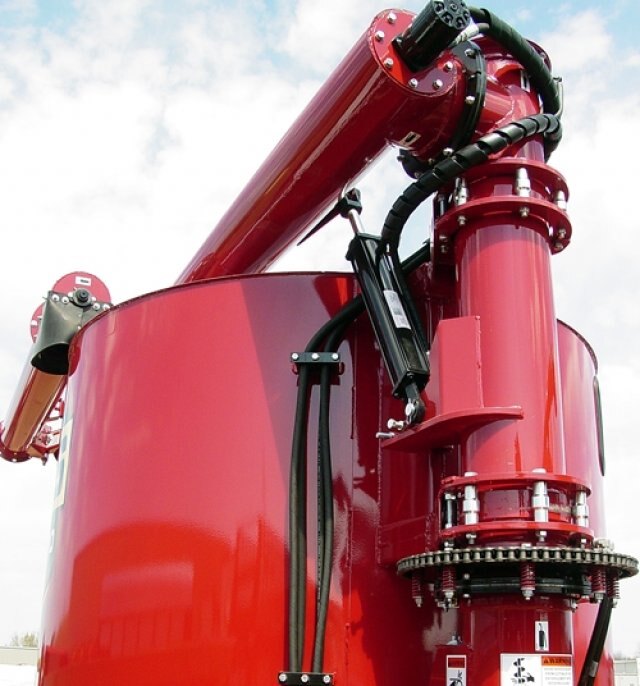

• The 170 Grinder-mixer feeding attachments and unloading mechanisms are all driven hydraulically - No drive belts, chains or gear clusters to wear out.
• The self-contained hydraulic system includes a pulley-driven pump, cyclonic reservoir for maximum hydraulic cooling and a pressure relief valve. Two full length windows and a rear porthole window allow the operator to see feed levels.
• A 14" mixing auger with a 30" base provides superior mixing uniformity.

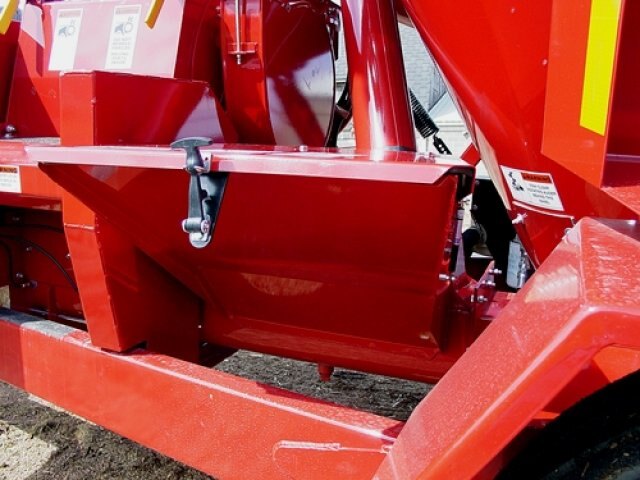

•  A 23" wide x 18" long supplement hopper with a sack cutter is side mounted 35" above the ground.
• Transport lights are standard equipment.
• Options include 3' and 6' discharge auger extensions, Digi-Star EZ 25O0 scale or a EZ 3400 scale with external horn, and a Hi-Moisture Kit for extended grinding.
