ID # 13533360

H&S BALE TRANSPORTS

  • H&S BALE TRANSPORTS
  • H&S BALE TRANSPORTS
  • H&S BALE TRANSPORTS
  • H&S BALE TRANSPORTS
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  Features

 ROUND BALE TRANSPORTS
  3 MODELS TO CHOOSE FROM 6 AND 8 BALE CAPACITIES

  • Uprights keep the bales from slipping off the bale cradle. (BT6/BT8)
  • 6' high guide rods allow the operator to see for ease of loading. (BT6/BT8)
  • The center beam is made of strong 4" x 8" x 3/16" steel tubing.
  • The optional bale cradle for over the rear axle will convert a 6 bale transport to an 8 bale transport. (BT6/BT8)
  • Bale cradle arms are 3/16" square tubing, reinforced with gussets, and tied together with a flat metal strap to keep them from spreading. (BT6/BT8)
  • Tricycle design front wheels for short turning radius.
  • Tele-Pole with spring loaded locking pin.
  • Anchor points on bale arm endcaps for tying down bales. (BT814)
  • The BT814 has a 14,000# GVW Capacity.
  Features

Guide Rods
Guide Rods

6' high guide rods allow the operator to see for ease of loading. The center beam is made of strong 4" x 8" x 3/16" steel tubing. Bale cradle arms are 3/16" square tubing, reinforced with gussets, and tied together with a flat metal strap to keep them from spreading.

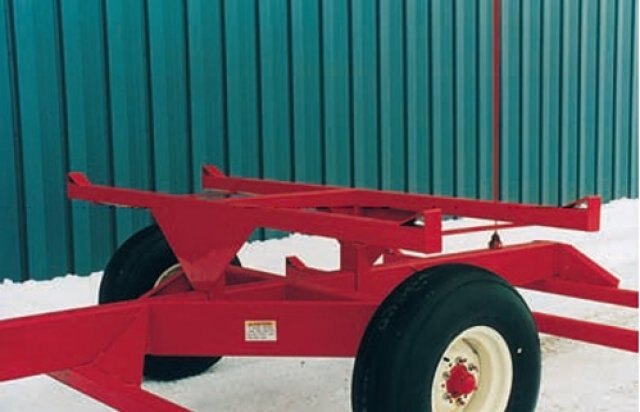

Bale Cradle Bale Cradle

The optional bale cradle for over the rear axle will convert a 6 bale transport to an 8 bale transport.

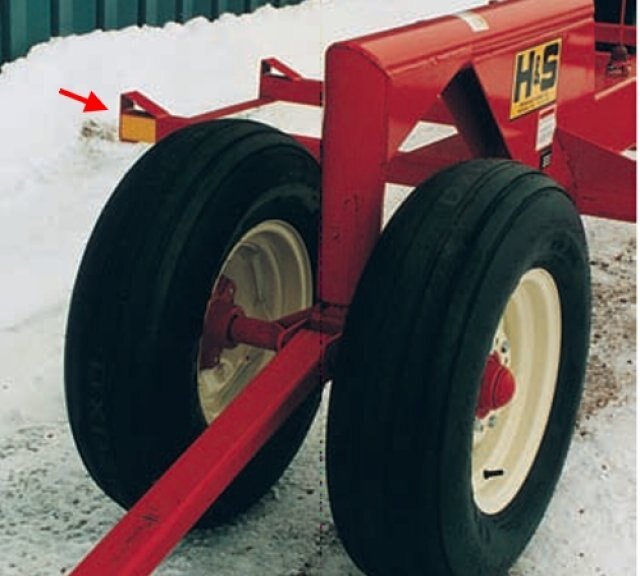

Tricycle Design Wheels Tricycle Design Wheels

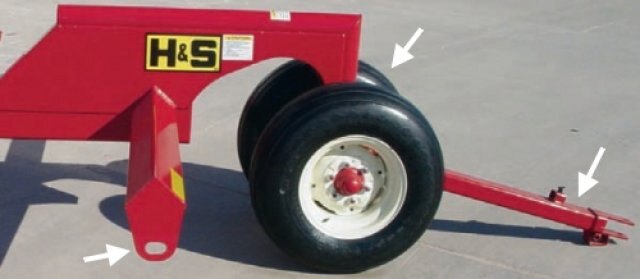

Tricycle design front wheels for short turning radius. Tele-Pole with spring loaded locking pin. Anchor points on bale arm endcaps for tying down bales.

Uprights
Uprights

Uprights keep the bales from slipping off the bale cradle.
 Specifications

SPECS/FEATURES BT6 & BT8 BT814
OVERALL LENGTH (INCLUDING 6' TONGUE BT6 - BT8) 29' 3" 28' 10"
OVERALL WIDTH 102" 102"
BALE CRADLE Width - 29", Length - 49" Width - 41 1/2", Length - 49"
WEIGHT W/TIRES 1570# 2080#
TIRES Rear - 12.5 x 15, Front - 9.5 x 15 Rear - 12.5 x 15, Front - 11 x 15
FRAME-MAIN BEAM   10" x 4" x 5/16" Wall
BALE ARMS   5" x 5" x 3/16" Wall
G.V.W. CAPACITY   14,000#



Specifications
Model
BALE TRANSPORTS
Category Name
Agriculture
Year
2016
Sale Type
New
Manufacturer
H&S
