TOP SHOT SIDE DISCHARGE MANURE SPREADERS

ALL MODELS EXCEPT THE 5115 are available with the optional Digi-Star GT400, or Nutrient Tracker Scale System with GPS !

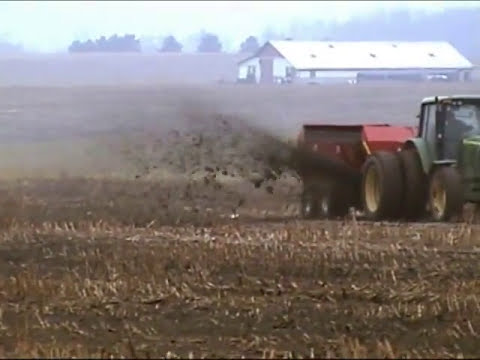

The heavy-duty expeller system with a quick release poly-lined fine spread pan and side fins help cut the drift of material towards the tractor and spreader, and provide an excellent spread pattern.

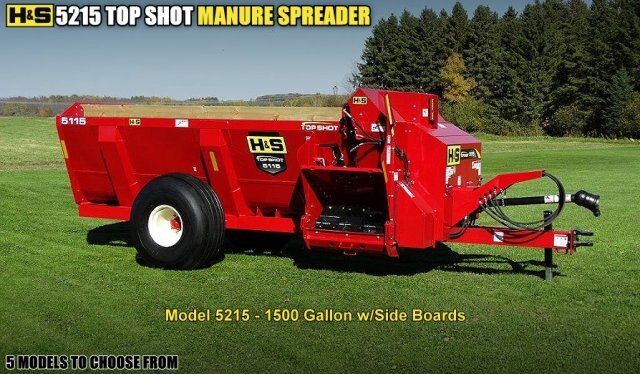

 5115 Features – 1286 Gallons:
  • 30" Wide "Top Shot" Expeller Beater
  • 24" Diameter Round Core Segmented Auger
  • Left Side Poly Lined Tank
  • Front Splash Guards
  • Shear Bolt Protection
  • Remote Grease System
  • The Auger System hydraulically raise and lower a full 8” to break-up material that may bridge during the unloading process.
  • Automatic Chain Oiler System (Optional)
  • Highway Lighting System (Optional)
  • Rear Splash Guards (Optional)
  • Tandem axle is available with your choice of 295R x 225 recap tires or 16.5 x 16.1 floatation tires. (Optional)

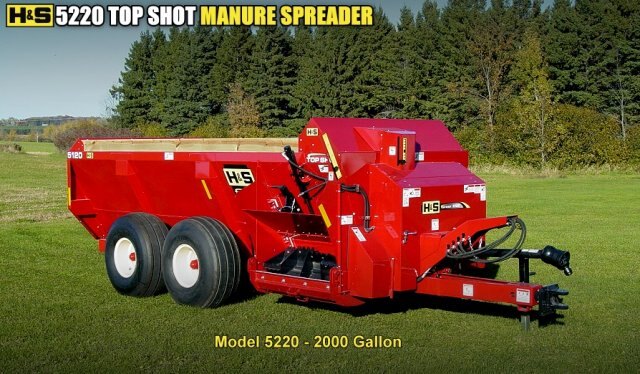

 5120 Features/2000 Gallons & 5126 Features/2600 Gallons
  • 40" Wide "Top Shot" Expeller Beater
  • 24" Diameter Round Core Segmented Auger
  • Left Side Poly Lined Tank
  • Front and Rear Splash Guards
  • Flip-Over Adjustable Hitch
  • Shear Bolt Protection
  • The auger System hydraulically raise and lower a full 8” to break-up material that may bridge during the unloading process.
  • Automatic Chain Oiler System
  • Highway Lighting System
  • Remote Grease System

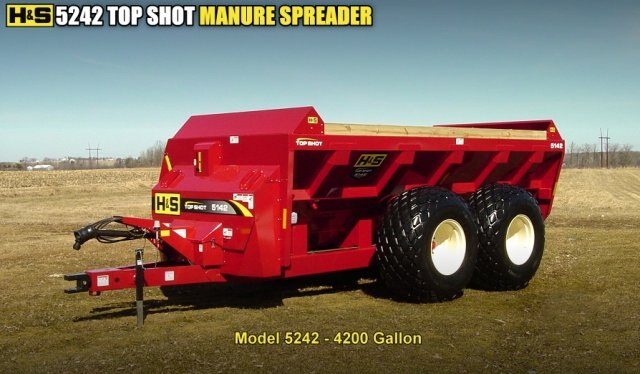

 5134 Features/3400 Gallon & 5142 Features/4200 Gallons
  • 40" Wide "Top Shot" Expeller Beater
  • 30" Diameter Round Core Segmented Auger
  • Heavy Duty Gearbox Reduction and an Overrunning Clutch with Shear Bolt Protection
  • Left Side Poly Lined Tank
  • Front and Rear Splash Guards
  • Flip-Over Adjustable Hitch
  • Shear Bolt Protection
  • The auger System hydraulically raise and lower a full 8” to break-up material that may bridge during the unloading process.
  • Automatic Chain Oiler System
  • Highway Lighting System
  • Remote Grease System
  • Hydraulic Lid (Optional)
 Features

Overrunning Clutch Overrunning Clutch


The 5115 has an overrunning clutch with shear bolt protection for smooth power transfer.

Drive System Drive System


The 5115 drive system features a sprocket reduction system with heavy-duty chain.

Oiler System Oiler System


An optional automatic oiler system oils the drive system chains anytime the discharge door is raised. A scraper holder is standard equipment. Jack storage is on the left side of the manure spreader.

Expeller Quick Release Pan


A quick release poly-lined fine spread pan allows for easy clean up.

Manual Adjust Manual Adjust Shield & Expeller


The 5215 features a 3 Section - 30" Expeller with a quick release poly-lined fine spread pan. The manual adjust shield allows for distance of spread.

Segmented Auger Segmented Auger


The left side poly liner allows material to slide to the auger. The 5115 features a 24� diameter round core segmented auger. All Auger Systems hydraulically raise and lower a full 8� to break-up material that may bridge during the unloading process.

Lighting System
Lighting System


The optional highway lighting system connects to the 7-pin tractor plug for added safety.

Cylinder System Cylinder System


A master/slave cylinder system raises and lowers the main auger evenly to keep material moving to the expeller.

Adjustable Hitch Adjustable Hitch

The 5220 manure spreader has a flip-over adjustable hitch for proper height adjustment.

Overrunning Clutch Overrunning Clutch

The 5220 has an overrunning clutch with shear bolt protection for smooth power transfer.

Expeller Expeller

The heavy-duty expeller system with a quick release poly-lined fine spread pan and side fins help cut the drift of material towards the tractor and spreader, and provide an excellent spread pattern.

Manual Adjust Manual Adjust

The manual adjust top expeller shield sets the distance of the spread pattern, while the hydraulic cylinder allows adjustment for rate of application. Reversible bolt-on square tooth paddles shred and rip material with a "Top Shot" action for an even spread pattern.

Adjustable Hitch Adjustable Hitch

The 5226 manure spreader has a flip-over adjustable hitch for proper height adjustment.

Overrunning Clutch Overrunning Clutch

The 5226 has an overrunning clutch with shear bolt protection for smooth power transfer.

Drive System Drive System

The 5234 drive system features a heavy duty gearbox reduction and an overrunning clutch with shear bolt protection for smooth power transfer.
  Specifications

MODEL 5215 5220 5226 5234 5242
CUBIC FT. STRUCK LEVEL 172 268.6 347 451 564
GALLON CAPACITY 1286 2009 2596 3377 4200
TANK LENGTH 14' 16' 16' 16' 20'
OVERALL LENGTH 20' 10" 22' 8" 22' 8" 23' 7" 27' 7"
TANK WIDTH - TOP 70" 76" 87" 97" 97"
AUGER DIAMETER 24" 24" 24" 30" 30"
POLY LINED TANK Left Side Left Side Left Side Left Side Left Side
OVERRUNNING CLUTCH Yes Yes Yes Yes Yes
SHEAR BOLT PROTECTION Yes Yes Yes Yes Yes
PTO 540 RPM Std. 1000 RPM Opt. 540 RPM Std. 1000 RPM Opt. 540 RPM Std. 1000 RPM Opt. 1-3/8" or 1-3/4" 1000 RPM 1000 RPM 1-3/4" Std. or 1000 RPM 1-3/8 Opt.
EXPELLER WIDTH 30" 40" 40" 40" 40"
FRONT SPLASHGUARDS Standard Standard Standard Standard Standard
REAR SPLASHGUARDS Optional Standard Standard Standard Standard
AUTOMATIC OILER Optional Standard Standard Standard Standard
HIGHWAY LIGHTING Optional Standard Standard Standard Standard
WEIGHT 5,740# 6,860# 7,880# 10,940# 16,500#
