Overview

 HT7 & HT8 H&S HAY TEDDERS

  • The H&S 7' and 8' tedders handles the hay gently, leaf loss is almost completely eliminated and there is no roping or gathering of stones. The savings of the protein rich alfalfa and clover leaves and blossoms makes for a more nutrient-rich hay.
  • H&S Tedders use a three V-belt drive to the pickup reel. This V-belt drive absorbs shocks and prevents damage should tines strike an obstruction.
  • The design and operation of the H&S Tedder has the advantage over the rotary-type Tedder of not beating the leaves off alfalfa and clover.
  • A screw type link allows for handy and easy height adjustment. Cut hay that has been rained on can be tedded to speed up drying and avoid spoiled hay.
  • The angle of the rubber mounted teeth can be changed easily just by moving the handy lever to adjust the cam. Tedding will allow air to move through your hay for much faster drying, assuring uniform curing and higher quality hay.
  Features

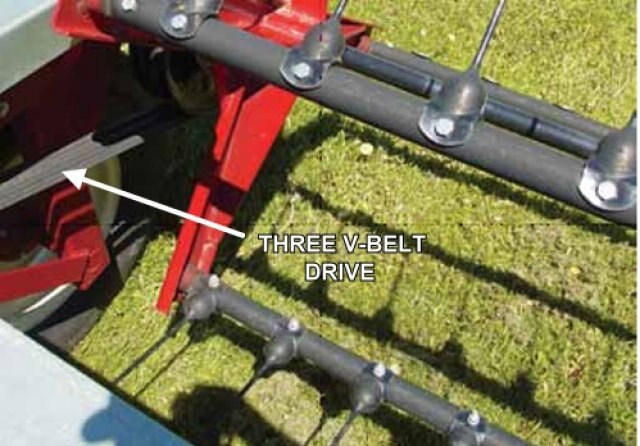

V Belt DriveV-Belt Drive


H&S Tedders use a three V-belt drive to the pick up reel (most other makes use only one V-belt). This V-belt drive absorbs shocks and prevents damage should tines strike an obstruction. The design and operation of the H&S Tedder has the advantage over the rotary style Tedder of not beating the leaves off alfalfa and clover.

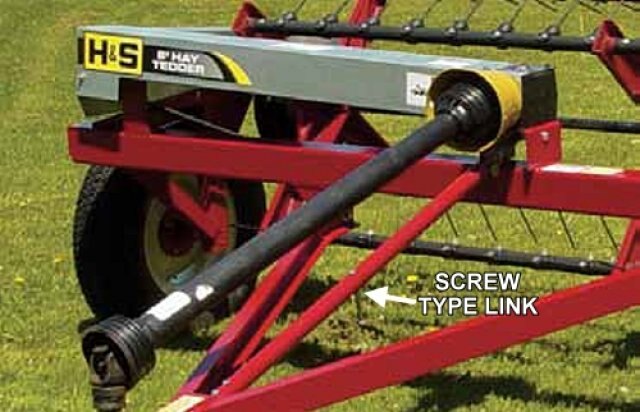

Screw Type Link
Screw Type Link


The screw type link (below the PTO Shaft) allows for handy and easy height adjustment. Cut hay that has been rained on can be tedded to speed up drying and avoid spoiled hay.

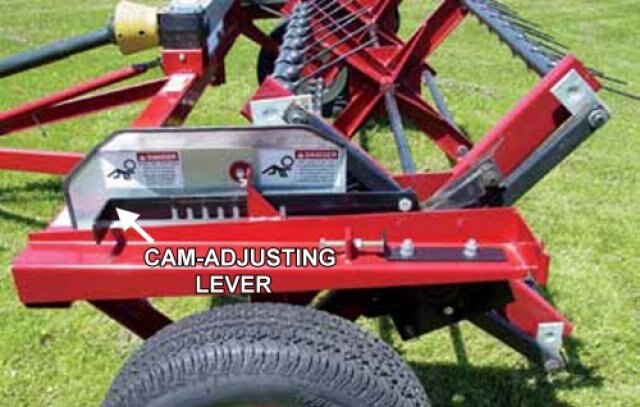

Rubber Mounted Teeth Rubber Mounted Teeth


The angle of the rubber mounted teeth can be changed easily just by moving the handy lever to adjust the cam. Tedding will allow air to move through your hay for much faster drying, assuring uniform curing and higher quality hay.

 Specifications

H&S TEDDER 7 FOOT 8 FOOT
TEDDING WIDTH 7' 8'
OVERALL WIDTH TRANSPORT POSITION 10'2" 11'2"
WEIGHT 870 lbs. 900 lbs.
NUMBER OF TEETH, RUBBER MTD. 56 64
OVERALL LENGTH WITH HITCH 112" 112"
OVERALL HEIGHT 50.5" 50.5"
WHEELS 4 Bolt, 15" x 5" 4 Bolt, 15" x 5"
RAKING WIDTH 15’ - 19’ — 3 Settings 18’ - 22’ — 3 Settings
DRIVE PTO, 540 R.P.M. PTO, 540 R.P.M.





Specifications
Model
HT7 & HT8 H&S HAY TEDDERS
Category Name
Agriculture
Year
2016
Sale Type
New
Manufacturer
H&S
