M-9 MERGER

• The M9 merger features a 9' pick-up head with independent head flotation.
• The 42" cross conveyor allows for hi-capacity of crop discharge.
• All H&S Mergers feature an anti-wrap guard (patented) on the cross conveyor bearings to protect against material wrapping on the shafts and destroying bearings.
• Replaceable three prong plastic teeth handle the crop gently and the high rear panel prevents spillage over the back.

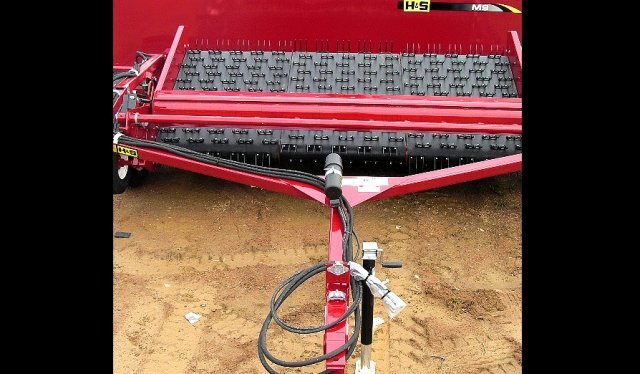

• The pick-up head crop roller is adjustable for height and tension.
• Cross conveyor speeds up when pickup speed is increased.
• By switching the 2 easy quick disconnect hoses around, you can change from right side merging to left side merging or inverting with the optional inverter shield.
• Storage for the inverter shield is out of the way behind the machine.

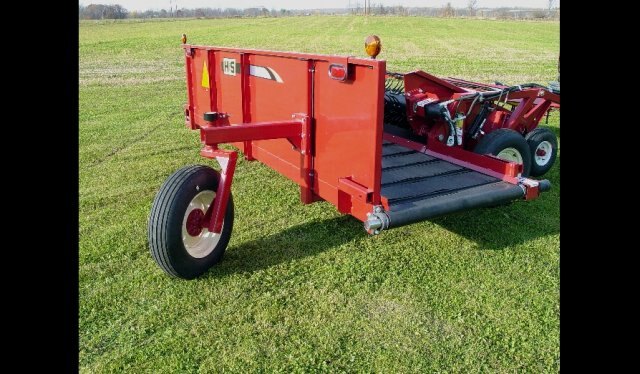

• The rear swivel tail wheel has a brake assembly that can easily be tightened by a single bolt for severe field conditions or transport.
• The pick-up head crop roller is adjustable for height and tension.
• Taillights are standard equipment.

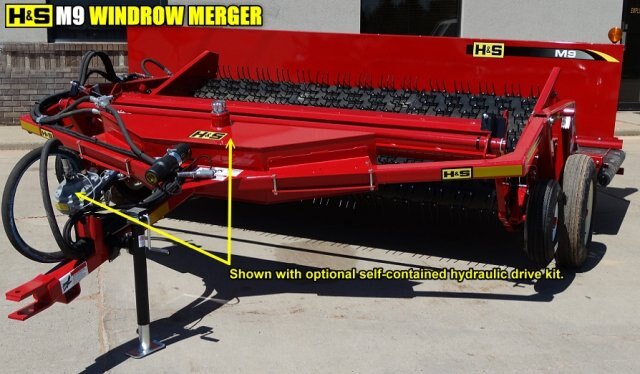

• An optional self-contained hydraulic drive kit with PTO pump can be installed on the M9 Merger. This feature allows tractors with a minimum 5 g.p.m. hydraulic capacity and 1 remote to operate the merger.
• An optional 2' extension or accelerator roller (patented) fluffs windrows. Both options allow you to merge up to 14' cuts of hay windrowed up to 9'.
