H&S WIDE BODY FORAGE BOX

  • H&S WIDE BODY FORAGE BOX

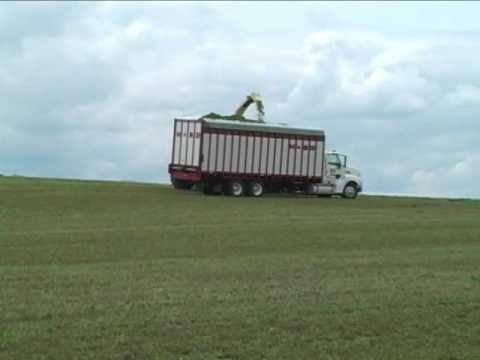

  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  WIDE BODY FORAGE BOX

  • WIDE BODY FORAGE BOXES ARE AVAILABLE IN TRUCK MOUNT, CHASSIS MOUNT, OR RUNNING GEAR MOUNT
  • The H&S Wide Body Aluminized Box is available in 18', 20', and 22' lengths.
  • Wide Body Fiberglass Reinforced Plywood Sided Boxes (FRP) are available in 22', 24' and 26' lengths.
  • Side stakes on all Industrial boxes are 2½" x 2½" 10 gauge tubular steel with a 15½" spacing between them.
  • The patented hydraulic center mount drive on all Wide Body Boxes provides smooth trouble-free operation. Wide Body industrial forage boxes have spring-loaded tighteners on the main apron drive.
  • All Wide Body Forage Boxes feature Cross Z-iron. Cross Z's are welded to the side channels in-line with stakes for added strength.
  • All Wide Body Boxes have Poly Bond plywood floors. Four formed steel channel supports run lengthwise under the floor for added strength.
  • The H&S Wide Body Box offers a choice of double barn doors with air closure, or a top hinged door with a air or hydraulic delay system.
  • 5" Side Channels are welded to the stake pockets for added strength and are also used as a chain return slide.
  • An optional front-to-rear electric roll tarp or side-to-side electric roll tarp is a nice feature to keep that valuable forage from blowing out during transport.
  • An optional gravity unload grain hopper for grain is available for wide body boxes with a top hinged gate.
  Features

FronttorearrolltarpFront To Rear Roll Tarp

Shown with the optional front-to-rear electric roll tarp.

Sidechannels Side Channels

5" Side Channels are welded to the stake pockets for added strength and are also used as a chain return slide.

Crossziron Cross Z Iron

All Wide Body Forage Boxes feature Cross Z-iron. Cross Z's are welded to the side channels in-line with stakes for added strength.

PolybondedplywoodfloorsPoly Bonded Plywood Floors

All Wide Body Boxes have Poly Bond plywood floors. Four formed steel channel supports run lengthwise under the floor for added strength.

CentermountdriveCenter Mount Driv

The patented hydraulic center mount drive on all Wide Body Boxes provides smooth trouble-free operation. Wide Body industrial forage boxes have spring-loaded tighteners on the main apron drive.
 Specifications
    MODEL                   18"                   20"            22"         24"       26"
INSIDE WIDTH 96" 96" 96" 96" 96"
INSIDE HEIGHT (floor to top of side) 86" 86" 86" 86" 86"
INSIDE LENGTH 18' 20' 22' 24' 26'
OVERALL LENGTH 18'9" 20'9" 22'9" 24'9" 26'9"
OVERALL WIDTH 102" 102" 102" 102" 102"
STANDARD BOX OVERALL HEIGHT 101" 101" 101" 101" 101"
STANDARD BOX CAPACITY STRUCK LEVEL 1011 CUBIC FT. 1126 CUBIC FT. 1241 CUBIC FT. 1355 CUBIC FT. 1470 CUBIC FT.
WEIGHT – STANDARD BOX 6300# 6750# 7100#/7350# 7958# 8550#
BOX MATERIAL ALUMINUM ALUMINUM ALUMINUM/FRP FRP FRP
MAIN APRON CHAIN T-ROD IS STANDARD/667XH OR 667X - OPTIONAL T-ROD IS STANDARD/667XH OR 667X - OPTIONAL 667XH - STANDARD 667XH - STANDARD 667XH - STANDARD
MAIN APRON DRIVE HYDRAULIC DRIVE
UNLOAD SPEED UNLOAD TIME IS DEPENDENT ON TRACTOR R.P.M., HYDRAULIC PRESSURE AND G.P.M.
REAR ENDGATE AUTOMATIC LOCK AND UNLOCK AN AIR OR HYDRAULIC GATE DELAY IS OPTIONAL





Specifications
Model
WIDE BODY FORAGE BOX
Category Name
Agriculture
Year
2016
Sale Type
New
Manufacturer
H&S
