SX PRO - Synchronised hydraulic folding and angle setting

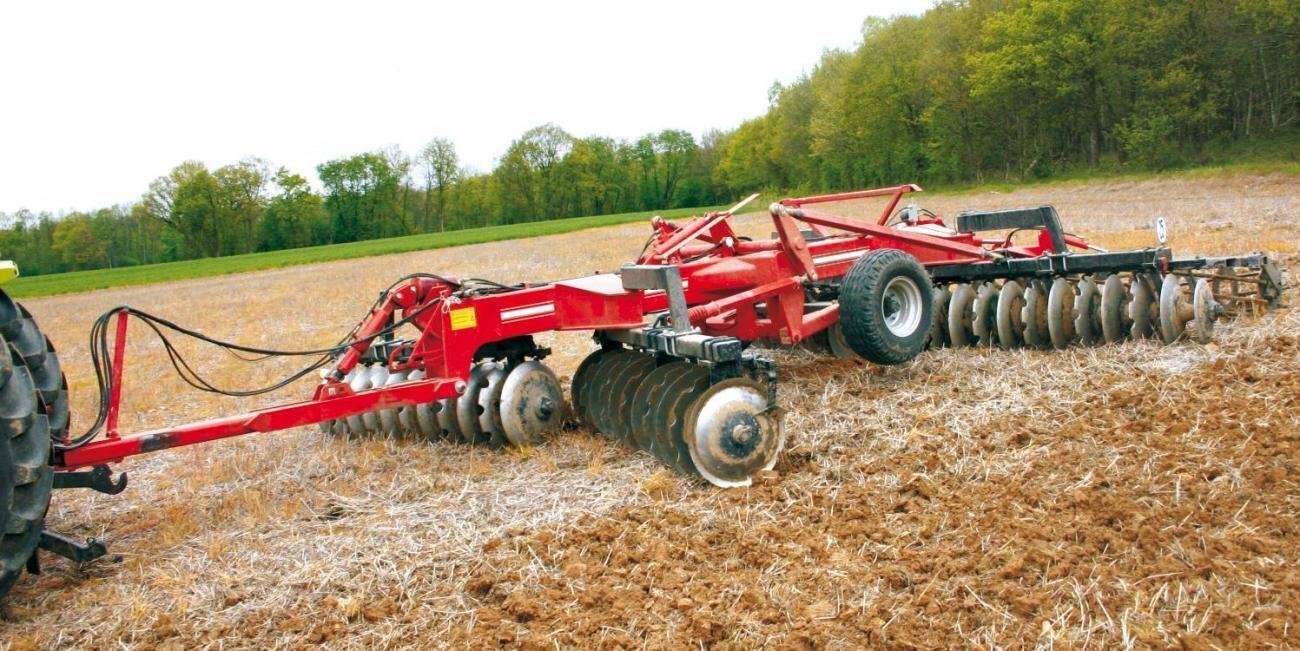

X disc harrow with hydraulic folding SXP range
Folding and works with or without rear roller.
The X "SX Pro" disc harrow is intended for tractors from 110 to 180 hp. The range extends from 3.10 to 4.95m widths. With a disc weight of 110Kg (depending on version) the SX Pro has a strong penetrating power needed in difficult conditions such as dry summer stubble removal. Destruction of weeds, stopping capillary action to reduce moisture loss, self-seeding, management of organic residues and loosening roots are the main expectations of stubble removal tools. This range is characterized by synchrodisc system which adjusts the angle of the disc gangs synchronously. The SX Pro is equipped with the maxi'control system the tool is carried by the beam at the front and the roller at the rear. Load transfer is optimal. Depth control is precise and stability preserved. Very simple to use Prerating for transportation and the angle adjustment of the disk gangs front and back is carried out from the cab of the tractor by means of a single hydraulic cylinder. This commands the 4 disk gangs simultaneously. Offset front and rear disc gangs Labouring over the entire width of the tool.
Choice of equipement A wide choice of disks is available to adapt to all conditions.
Particular attention should be paid to:
The type of discs: smooth, serrated, alternating
The size: 610, 660, 710 mm diameter
Thickness: 6, 7 ou 8 mm
Disc spacing 195 and 230mm
Large diameter disqs
Wear resistant
Under bearing clearance
Greater penetrating power, even in the presence of large amounts of plant residues.
