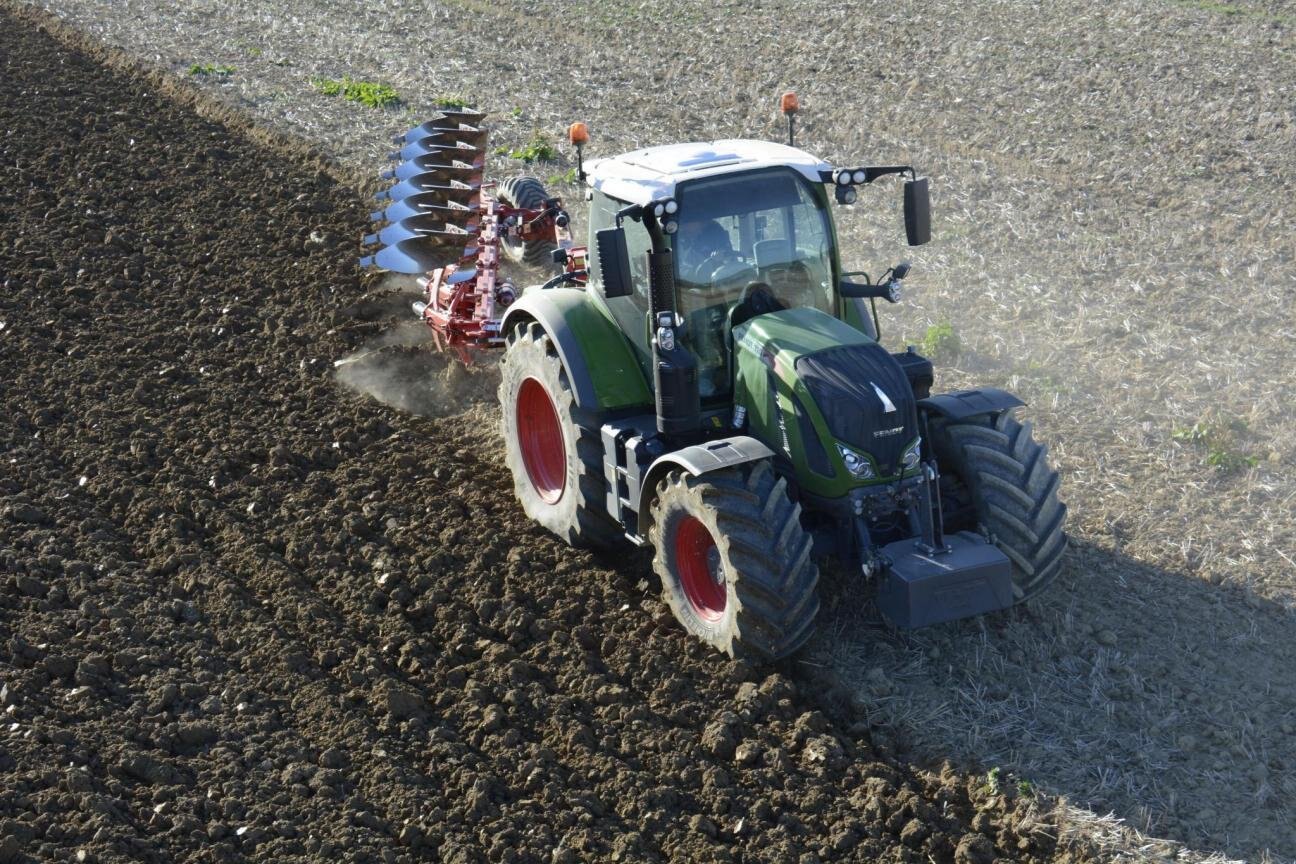

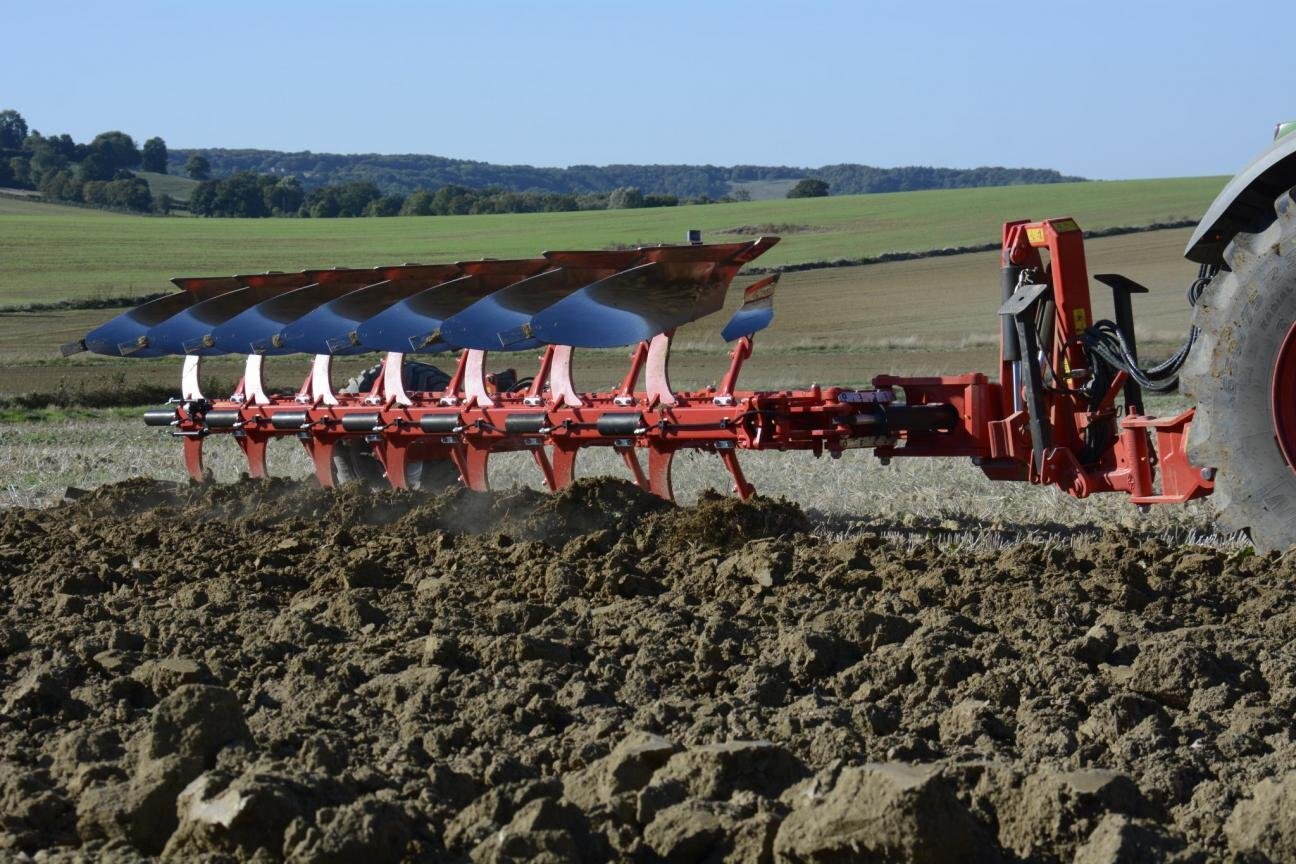

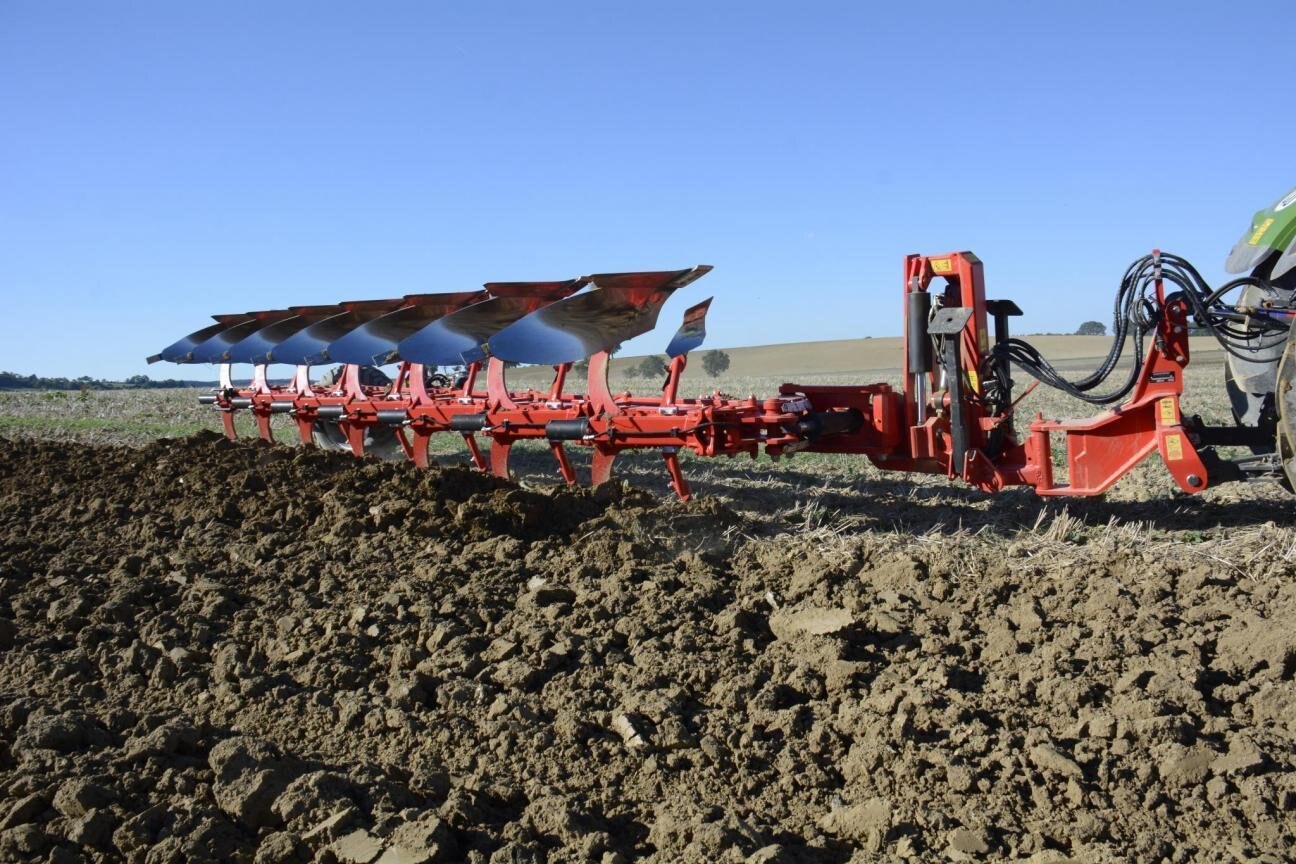

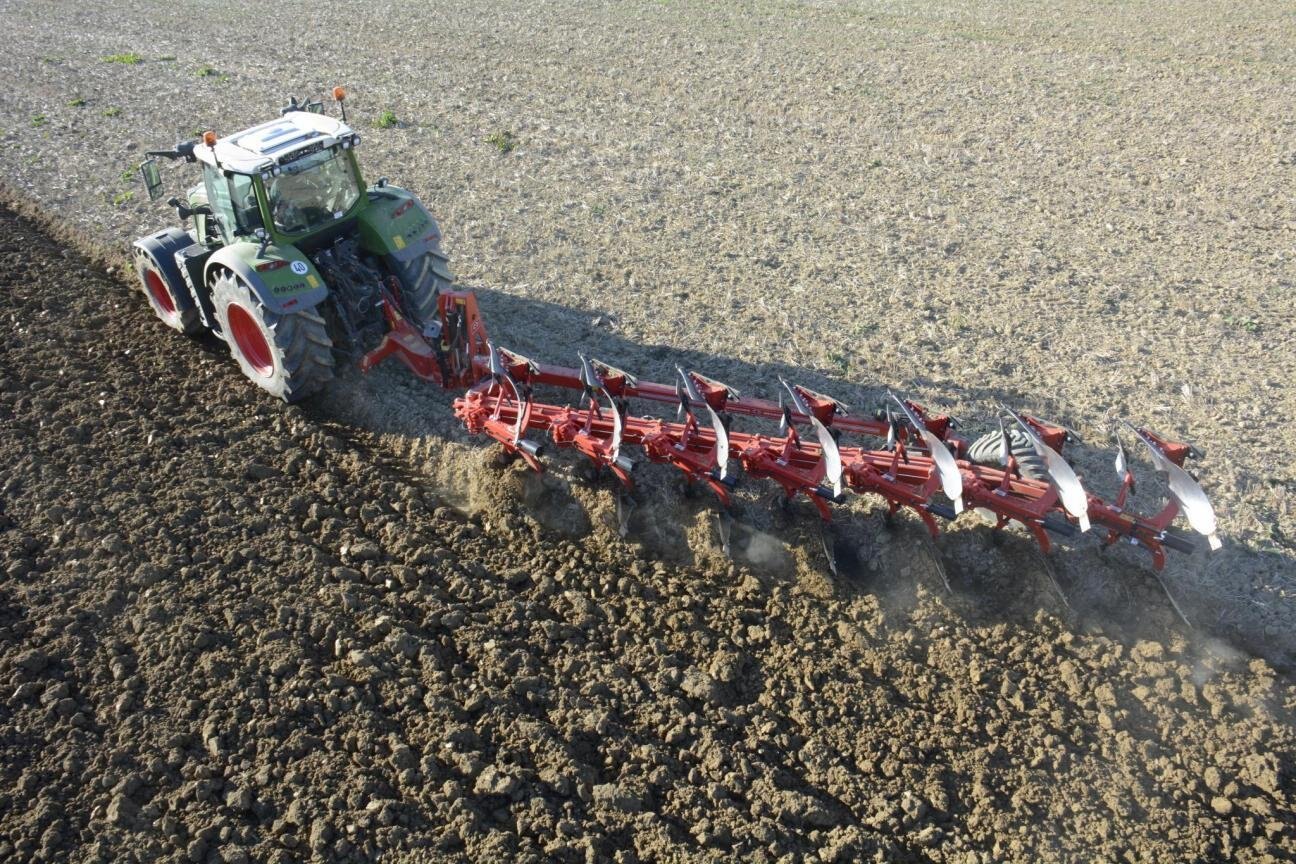

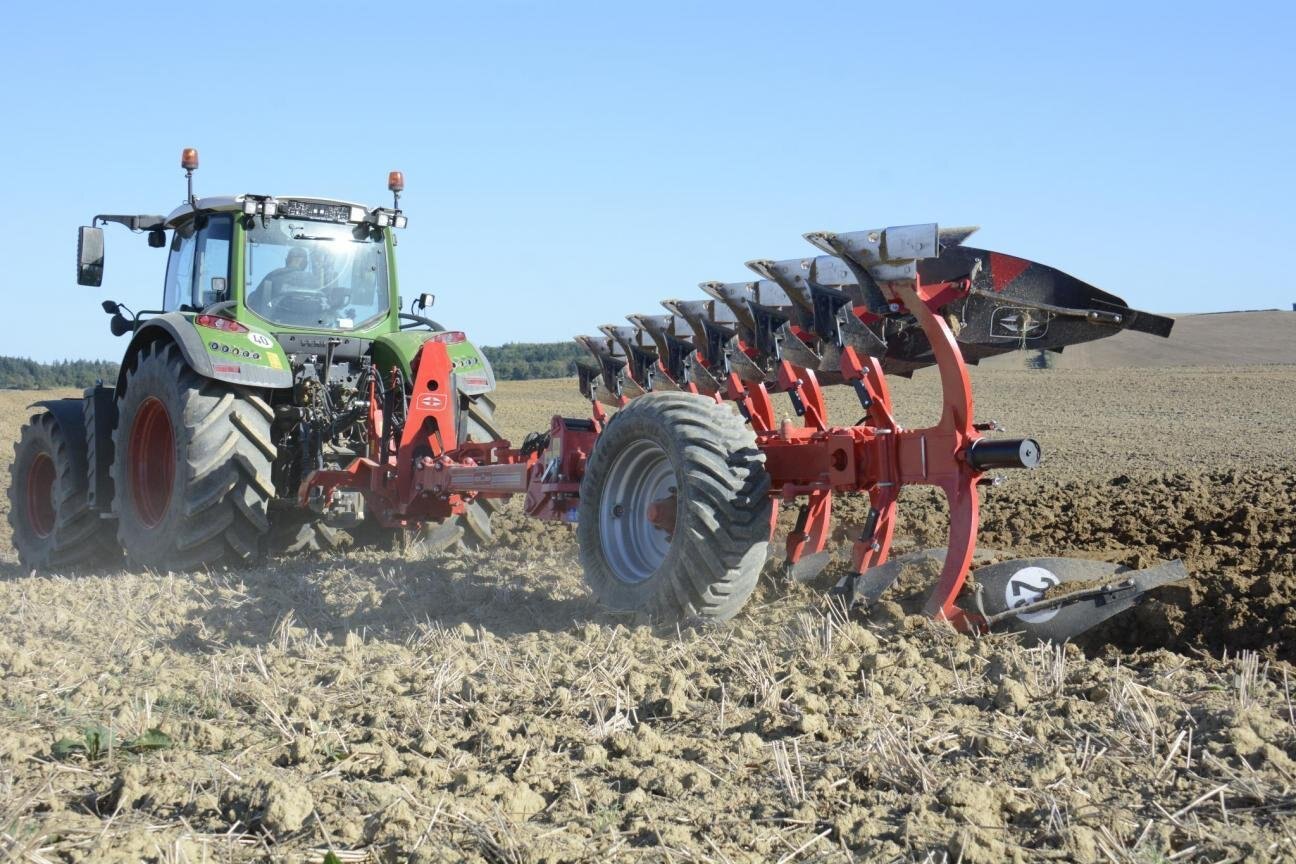

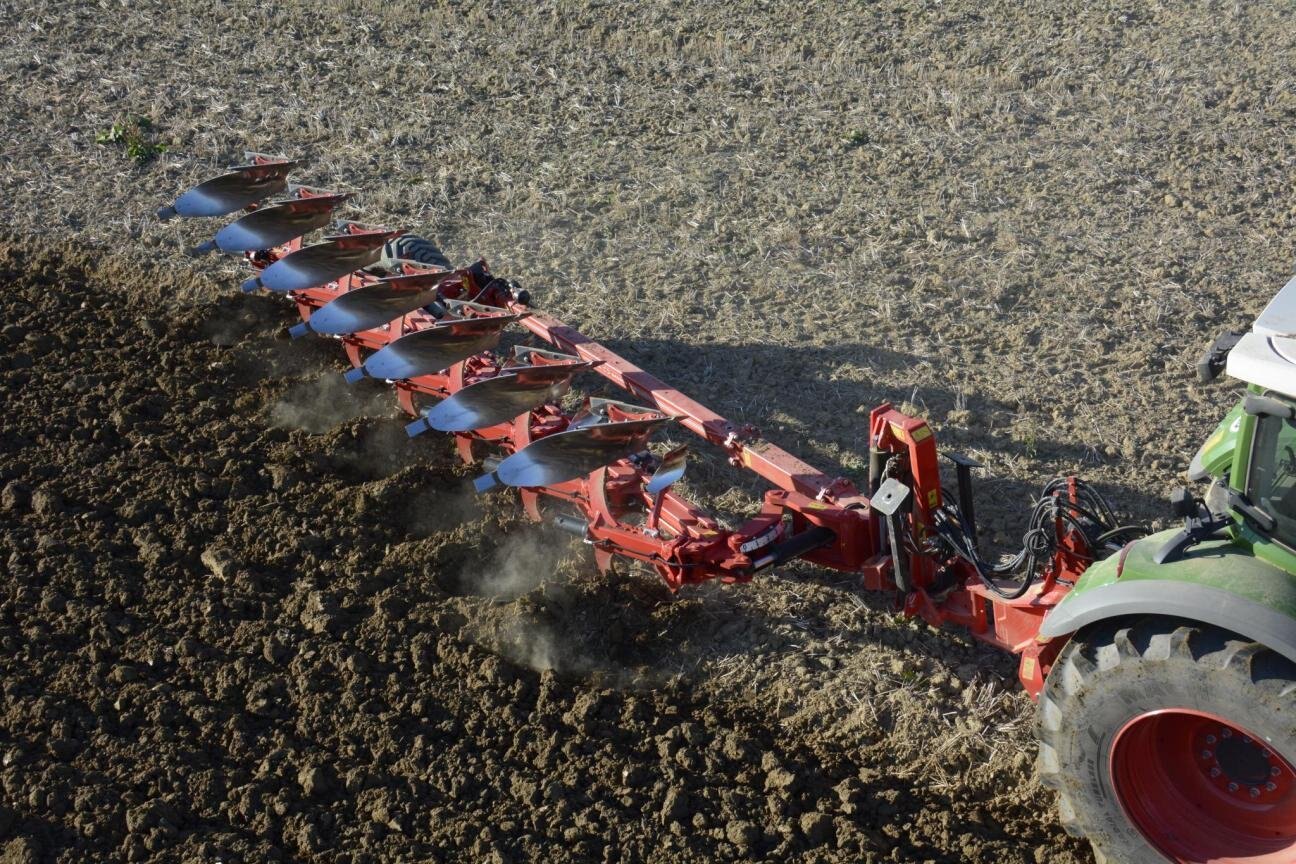

Single-wheeled plough from 5 to 8 bodies, for tractors from 120 to 240 HP

Grégoire-Besson has improved its range of single-wheeled ploughs to suit tractors from 120 to 240 HP.
The conception with 160 x 160 mm frame and turnover via double cylinders allows the plough to adapt to required tractor horse power.

Linkage

• Fixed coupling cat. II-III with the same headstock
• Industrial type hitch pin.

Turnover via double cylinders

• Smooth use: no shocks during turnover
• Movement can be reversed or stopped at any time without risk
• Manoeuvrability: articulated rear wheel can be steered

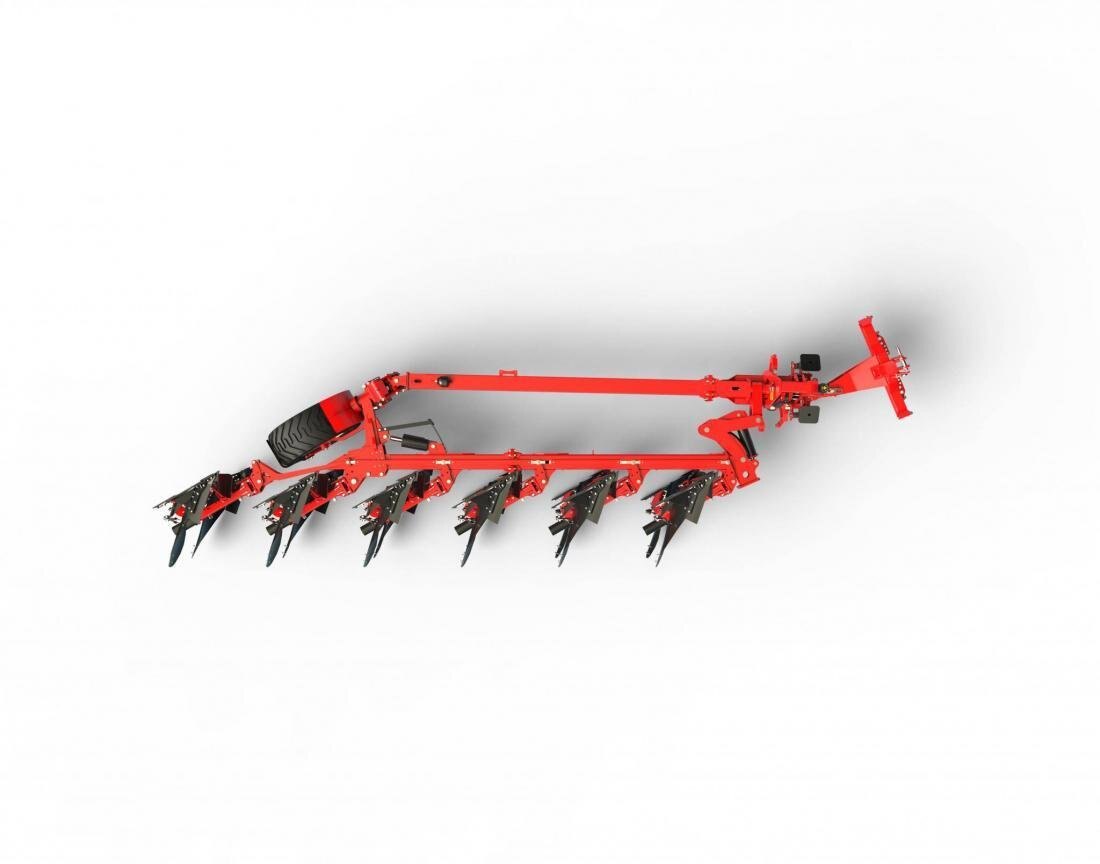

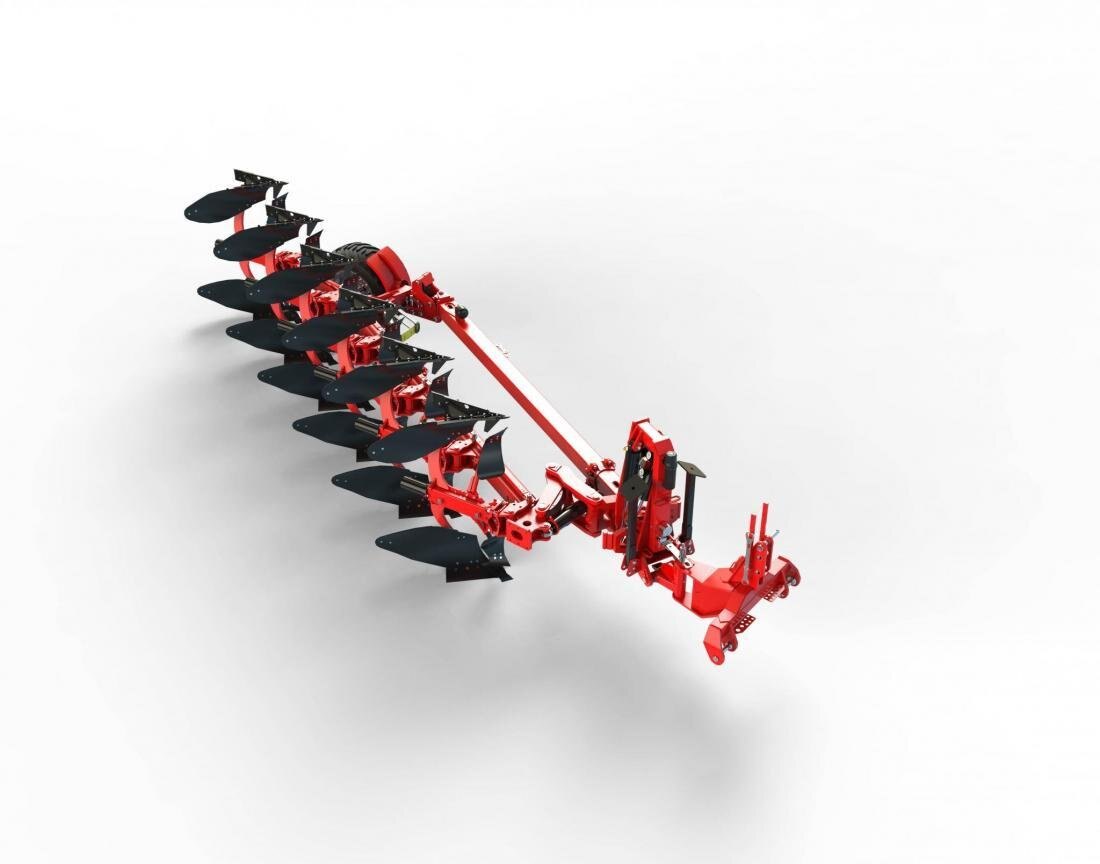

«Z»-designed compact frame

Optimum wheel positioning

• In the field:
• Rear positioned = optimal weight transfer
• No overhanging (wheel track is «taken out»)
  During turnover and transport, the centre of gravity is lowered:
• Stability
• Pressure on lower link arms is reduced

Offset elements
Equal forces

• On bodies
• On safety device ball bearings
• Wheel position optimized:
• Optimum load transfer on tractor
• Precise depth adjustment
• Stability and comfort on the road
  Body traction point vertically to the shares
• Less pressure on landside = less power needed.
• Lateral forces reduced.
• Less wear of parts

Configuration adapted to your needs

• Extension : one additional furrow
• Grégoire-Besson exclusivity: one additional furrow mounted on front frame, to optimize weight transfer whatever the number of plough bodies.

Adjustments

• Working width hydraulic (SPMFW 8) or mecanical (SPMF 8) adjustment from 12 to 20’’
• Front furrow adjustment (compass), possibility to work without the first body
