• RH 615 for R6 - Ø115 mm shaft
• RH 830 for R8 - Ø130mm shaft
• 2 tapered conical bearings with the same diameter
• Mechanical inclination with wedges for adjustment
• Welded construction.
  Option for RH Headstock
• Hydraulic shock absober on top link
• «Hydraulic transport lock / unlock«
• Hydraulic adjustment of plough inclination

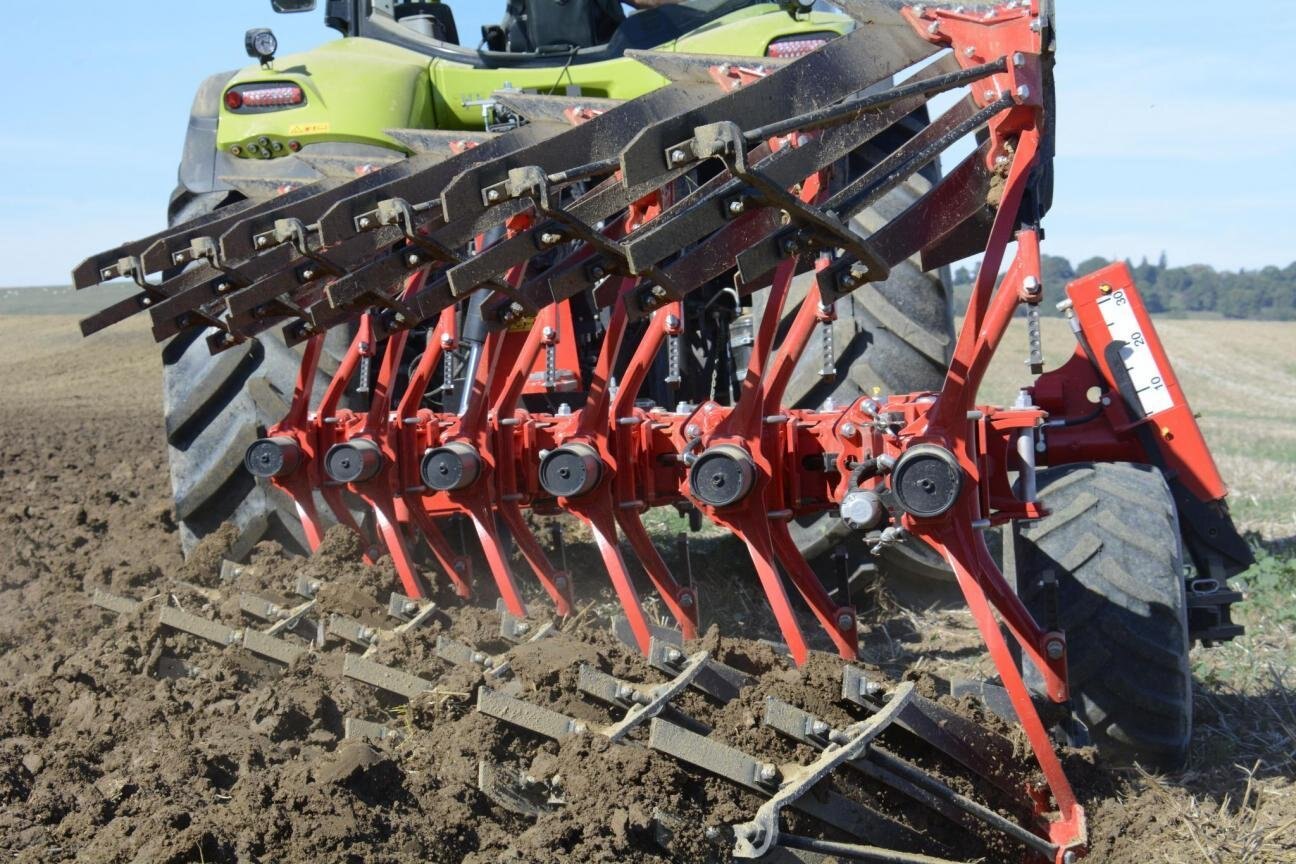

Working width adjusment through toothed index

• 5 working widths : 14-16-18- 20-22’’.
• Simplicity, ease and quick adjustment.

• Adapted to all inter-tyre distance.
• First body is erased.
• Regular ploughing in sloping grounds.
• Controlled working width.
• Perfect ploughing in all conditions..
• Front furrow adjustment on parallelogram, mechanical or hydraulic (optional), independent from plough alignment adjustment.
• Mechanical adjustment of plough alignment, independent from front furrow adjustment.
• Hydraulic plough alignment with automatic closing/opening during turnover (standard)

Wheel position optimized

• Optimum load transfer on tractor.
• Precise depth adjustment.
• Stability and comfort on the road.
  Equal forces
• On bodies.
• On safety device balls.
  Body traction point vertical to the shares
• Less pressure on landside = less power needed.
• Lateral forces reduced.
• Less wear of parts

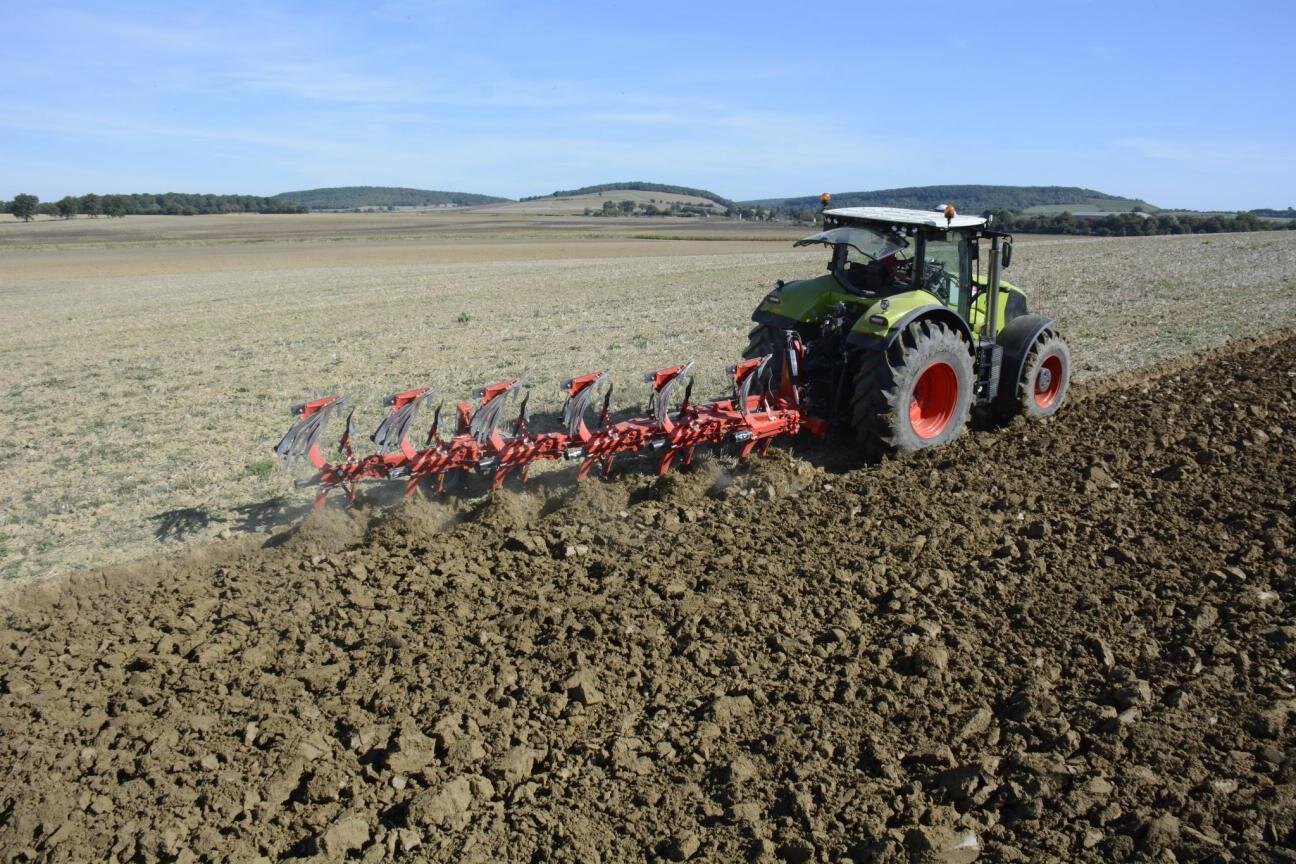

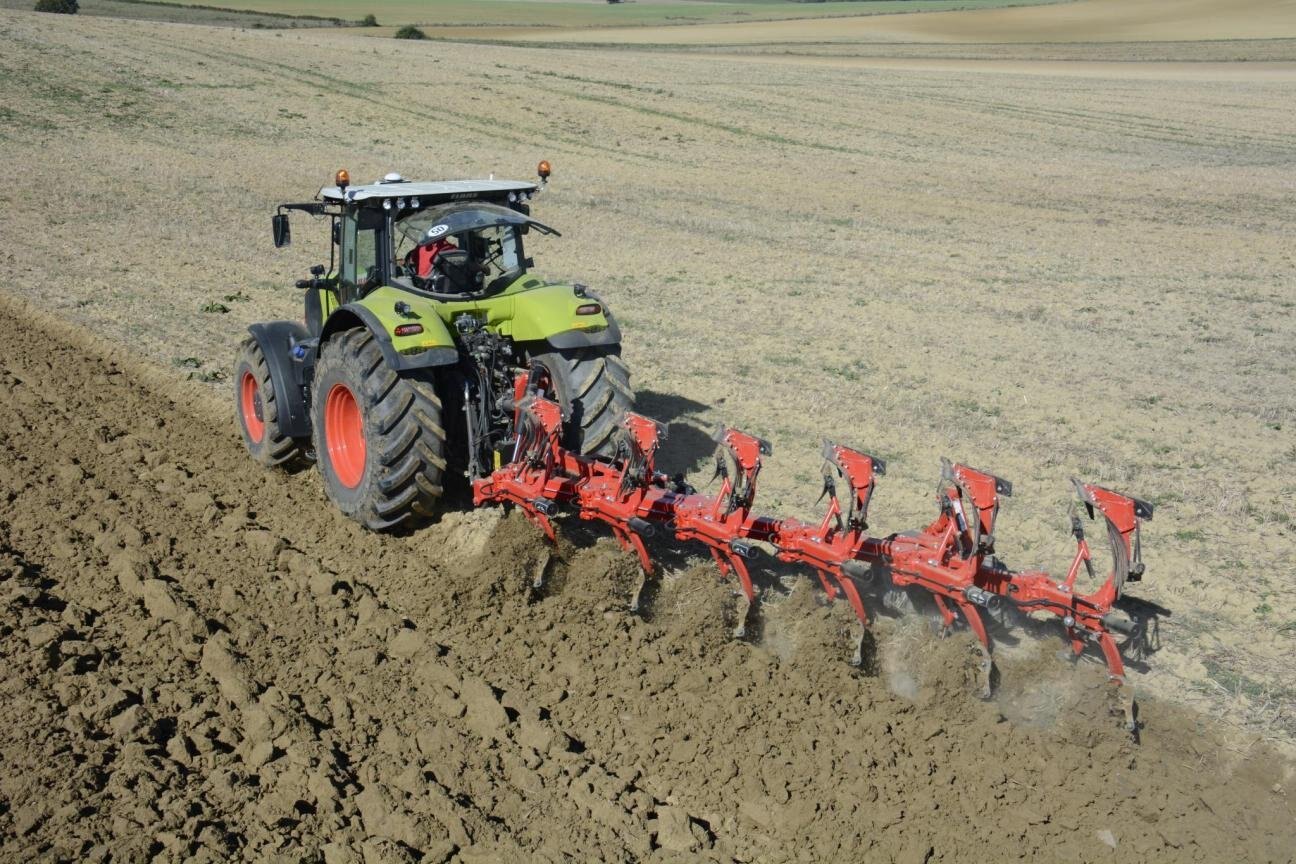

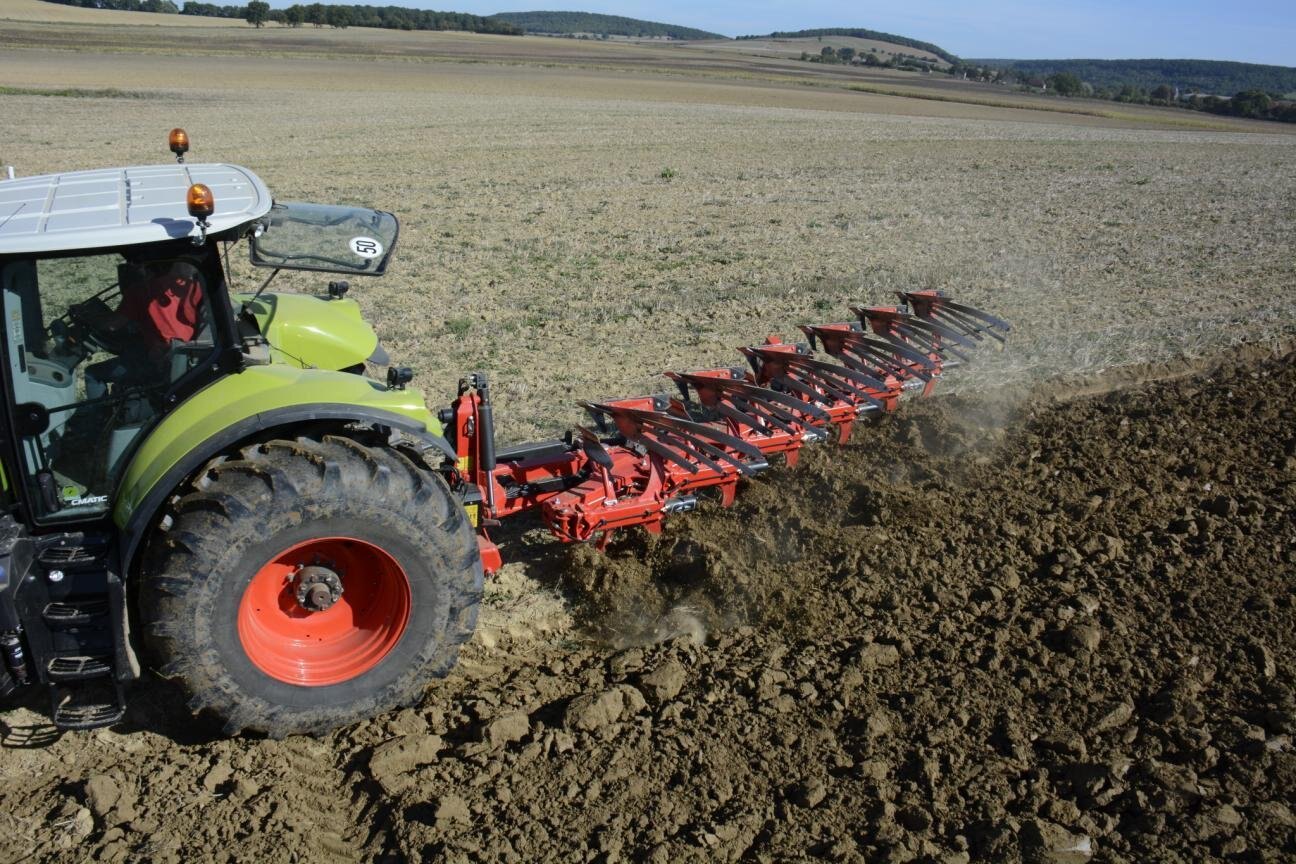

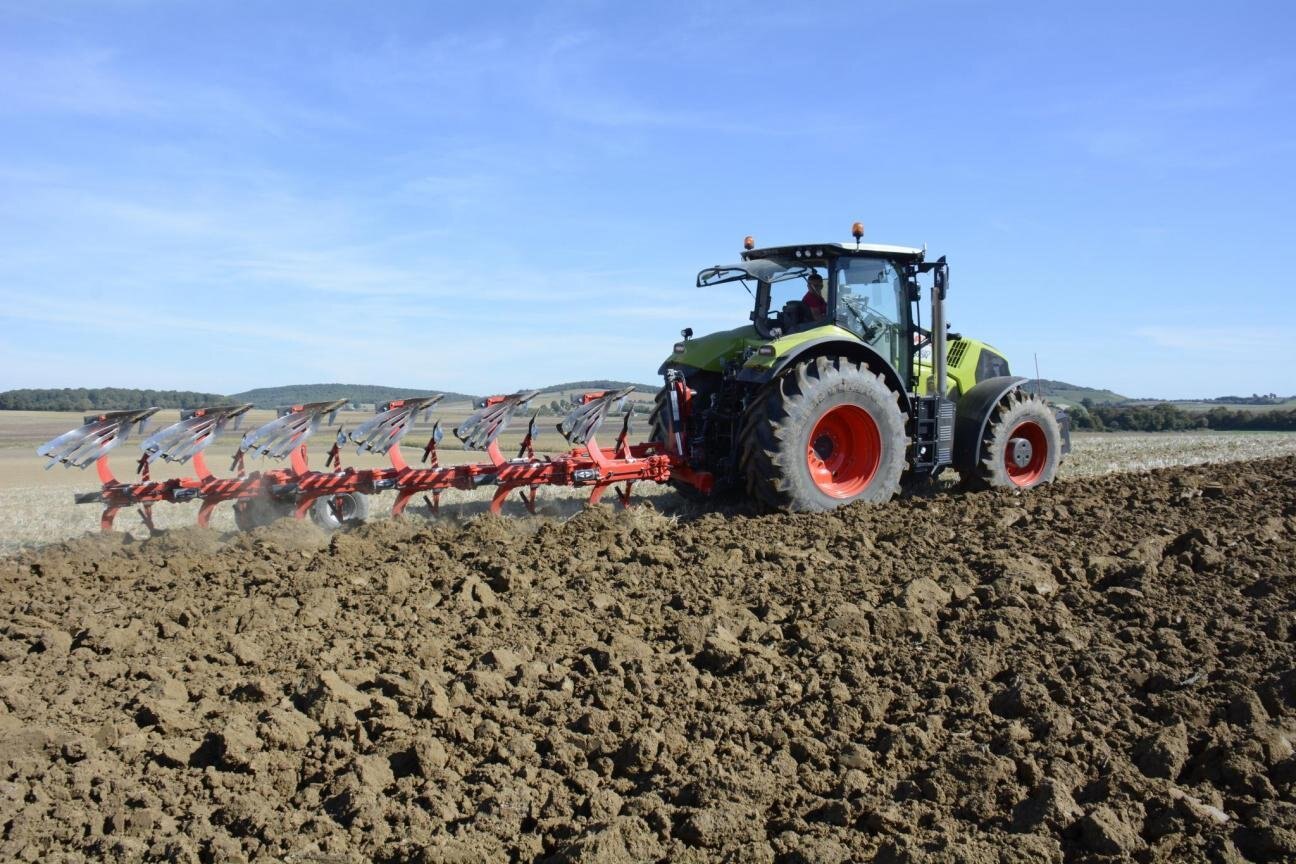

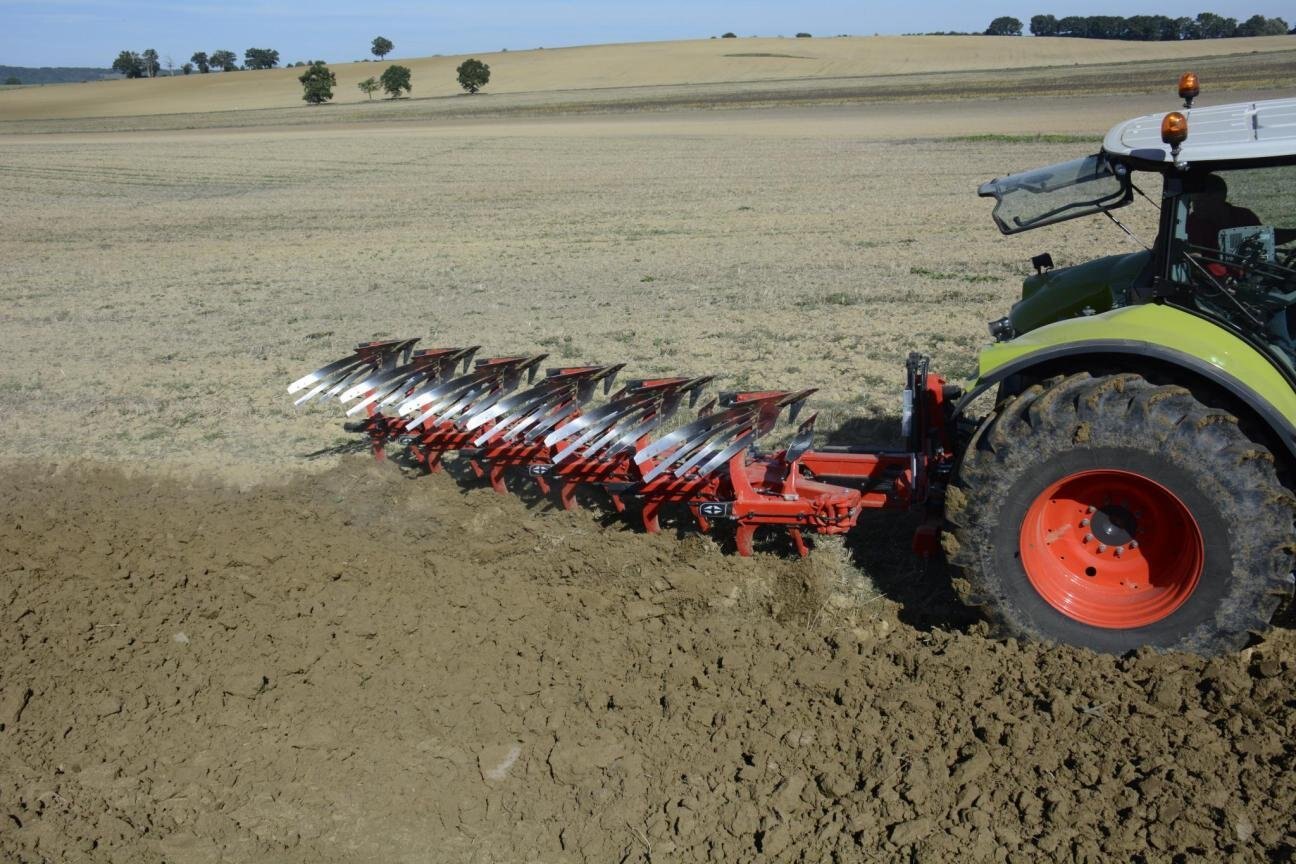

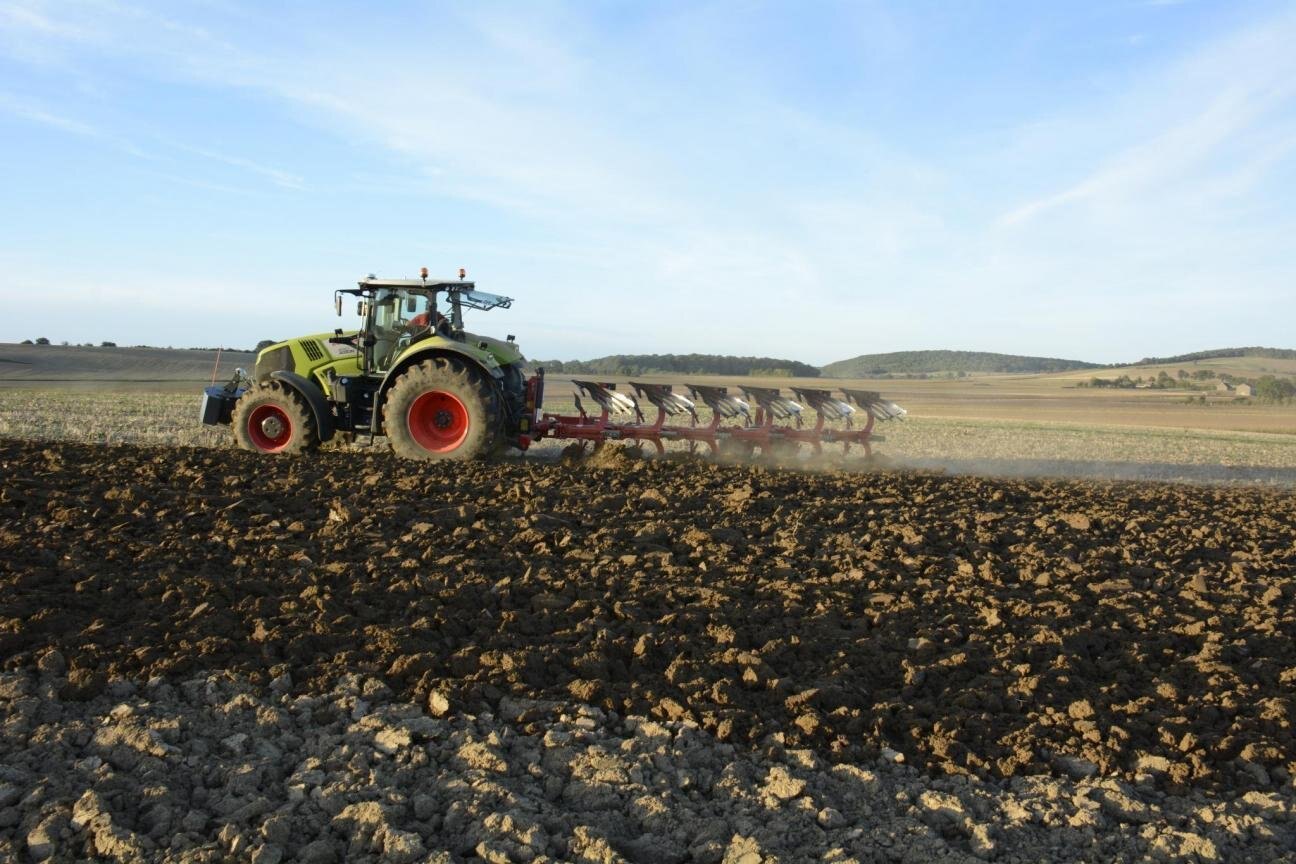

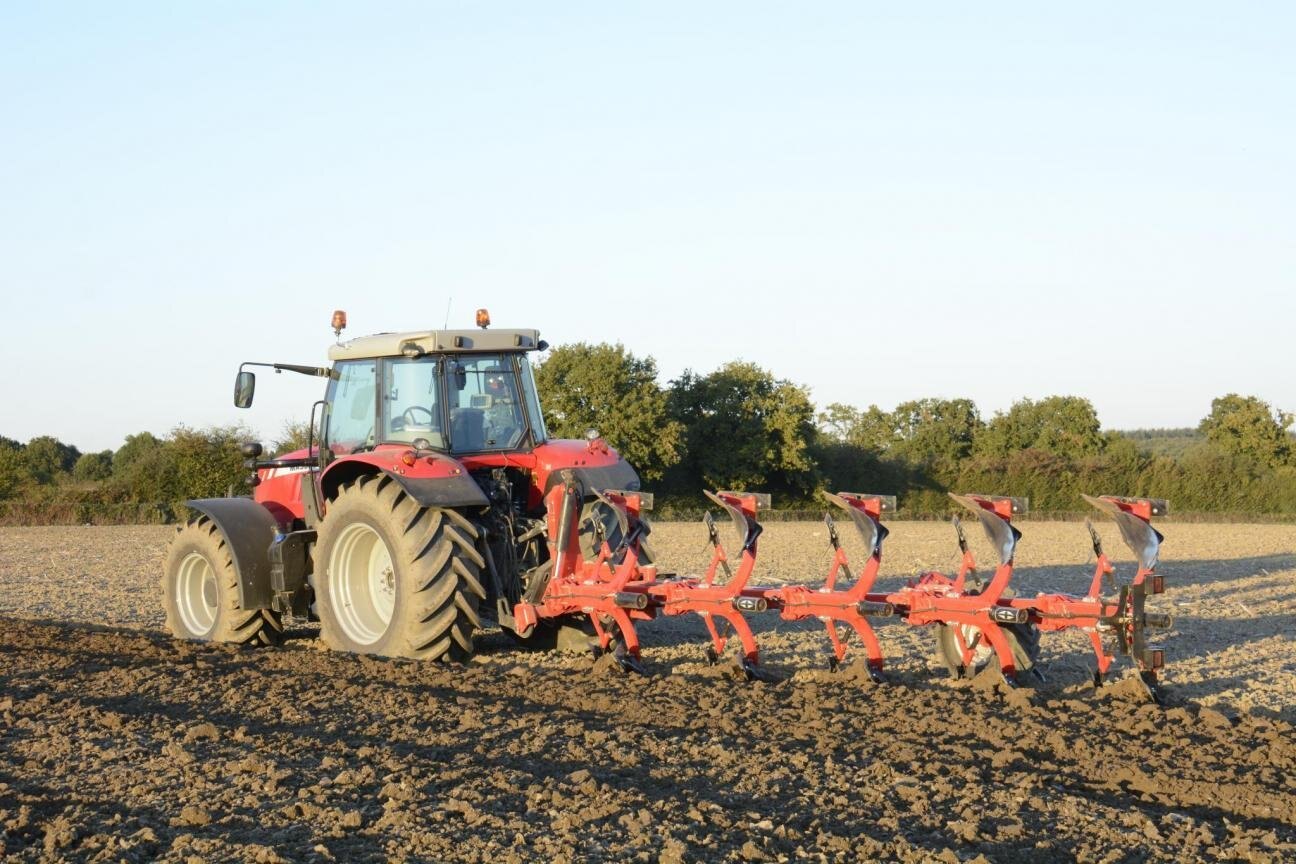

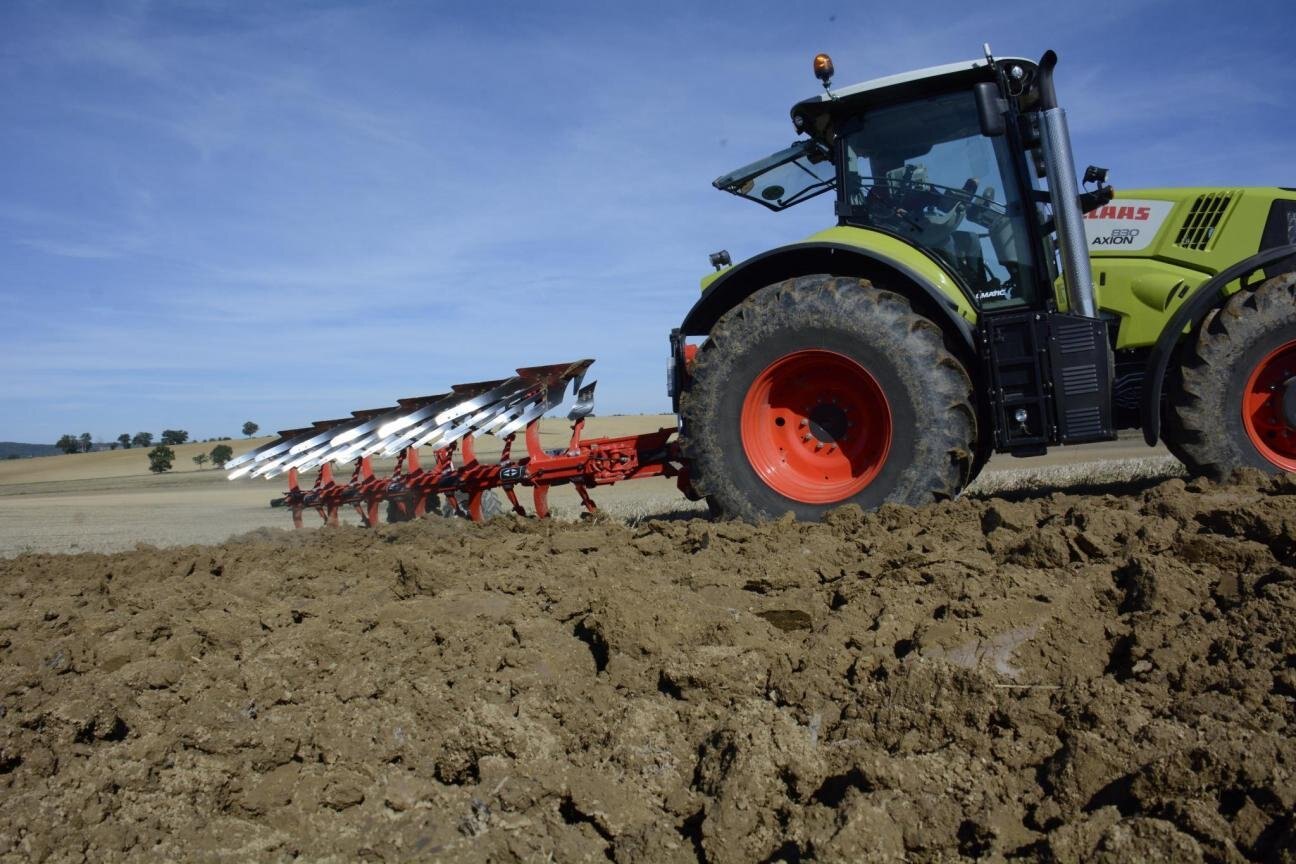

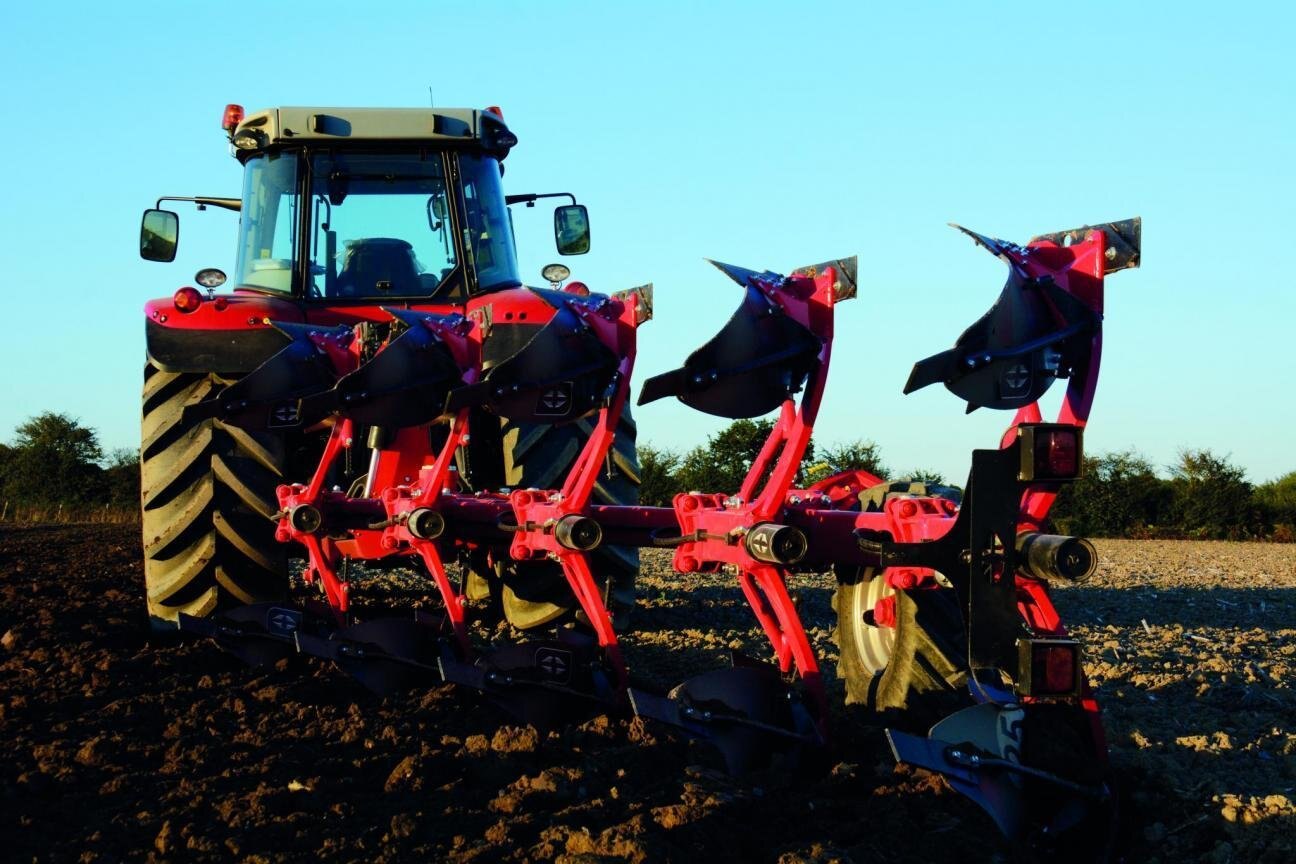

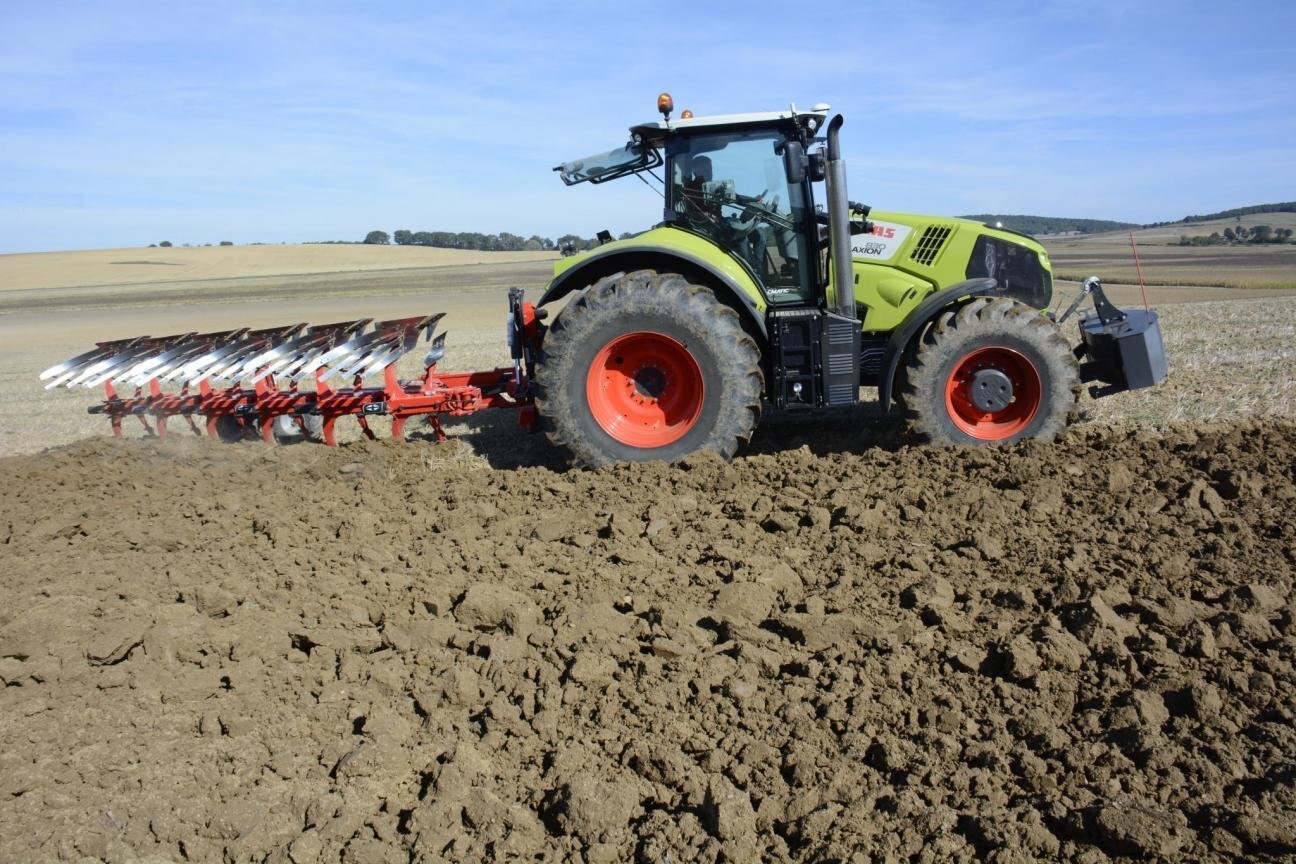

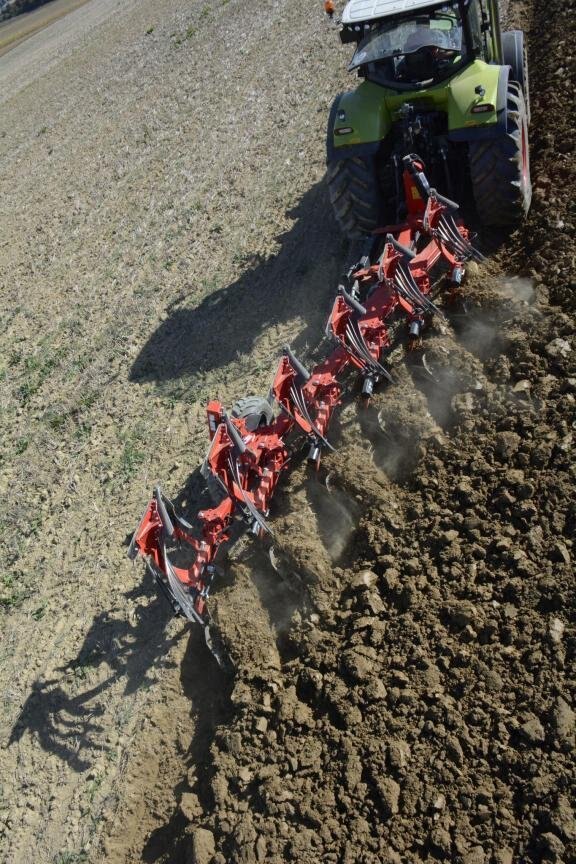

The range R8 is characterized by its simple and robust design for maximum versatility.
With a 160x160 mm beam and Ø 130 mm shaft, this plough is perfectly adapted to tractors with lift capacity of 9 tonnes and more.
