Multitask

The spacing between tines (or tine pitch) of 230mm gives great polyvalance:

• Stubble cultivation across the width (duck foot tine) 4-7 cm deep.
• Intensive tillage. 7-15cm.
• false ploughing > 25 cm (straight tine).
• Seedbed preparation.
• Ploughing renewal

Economical

The tine pitch of 230 mm can work across the width of the tool at a smaller depth.

• Less power per tine
• Less wear on tine tip
• Less slippage
• Lower fuel consumption

Depth setting is via the rear roller which allows a optimum load transfer.

Agronomics

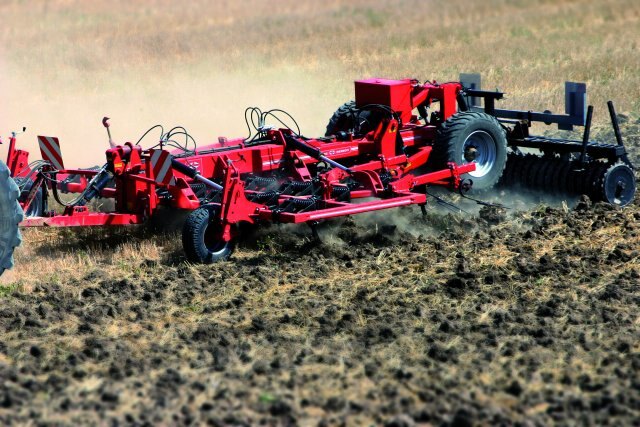

The Eurotill meets all the expectations of a tine tool

• Destruction of weeds.
• Soil loosening.
• Stale seed bed
• Organic residue management.
• Root loosening.
• Tine pitch: 230mm to work full width at low depth (no clay brought to the surface).

Peformances

• 4.40m to 6.20m wide
• 3.00m transport width.
• Beam spacing: 800 mm front, 900mm at the rear.
• Frame clearance: 700 mm.
• Up to 450Kg at the tine point.
• Lift under tine: 34 cm.

Strength

• Single beam central chassis central beam mono: section 200 × 300mm, 10mm thick.
• Side frame: section 100 × 100 mm.
• Strong central chassis / side frame linkage: attached by three pivot points and the 4 hydraulic cylinders used for leveling and folding.
