Grégoire-Besson DISCOMIX
Videos
Overview

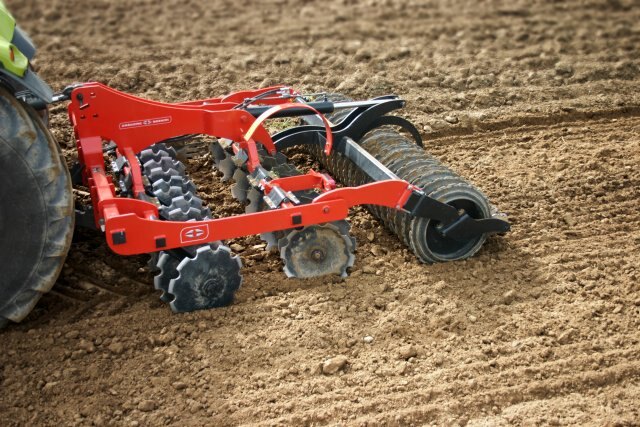

DISCOMIX - The mounted fast cultivator
Grégoire-Besson's experience means a design providing great versatility for surface work in all conditions
|
Features |
|
Versatile
Large diameter discs facilitate the destruction of plants: - seedlings and stale seed bed.
- crop residues.
- abundant plants (maize, intercropping ...).
Superficial stubble removal 4 to 9 cm.
Seedbed preparation - promotes stale seed bed.
- reworking of labour
- stopping capillarity.
- Incorporation of manure (slurry, manure).
|
|
Discs
The large diameter discs: 630 mm, widen the range of applications of the cultivator - presence of vegetation.
- regular working depth.
- bearing protected against shocks and impacts.
The shallow curve of the discs allows them to be: - very sharp.
- non sticking
- less pulling.
|
|
The bearing
A bearing specially designed for agricultural use. - sealed joints
- grease renewal is possible
- Protection of seals provided by a safety valve.
Twin disc mounting: - very aggressive.
- balanced constraints on the bearing
|
|
Safety system - Roll Choc suspension:
- large diameter rubber Ø 40 mm.
- high effacing distance (more than 20 cm).
- simple design, reliable and maintenance free.
- Stability of the machine at high speed.
- Allows the passage on stony ground.
|
|
Weight / discs - Regular working depth.
- High penetration capacity.
- Allows working in difficult conditions.
|
|
Finishing - Vegetation chopped
- Regular mix
- optimum leveling.
- different roller profiles available
- high quality seed bed
- good soil/seed contact, ideal for stale seed bed.
- Level soil
- Deflector: no gaps between passes
|
