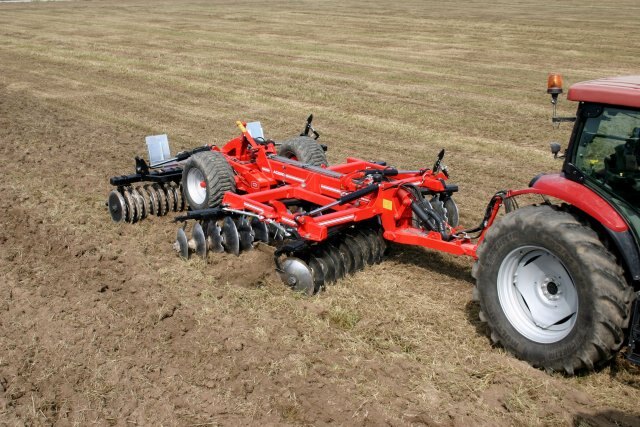

maxi'control system

• Tool carried by the tow bar at the front and the roller at the rear.
• Load transfer.
• Depth control and optimal stability.

Angle setting

Alignment of  front and rear disc gangs is done by using mechanical rods or hydraulic cylinders (optional

• Adjusting the angle of attack as a function:
  • soil type
  • weather
  • finishing quality
  • disc wear

Choice of equipement

• A wide choice of disks is available to adapt to all conditions. Particular attention should be paid to:
  • The type of discs: smooth, serrated, alternating
  • The size: 610, 660, 710 mm diameter
  • Thickness: 6, 7 ou 8 mm
• Disc spacing 195 and 230mm

Large diameter discs

• Longer wearing
• Under bearing clearance
• Greater penetrating power, even in the presence of large amounts of plant residues.

Two configurations are available:

K Configuration

• Offset disc gangs at the front:
  • Adjustable angle.
  • Penetrating power
  • Pulling power.
• Independant rear disc gangs:
  • Twin disc mounting
  • "Roll Choc" shock absorber
  • Homogeneous mixture of soil and straw. Ideal for false seeding.

X Configuration

• Offset front and rear disc gangs: work uniformly over the entire width.
• High weight per disc> 120kg, providing high penetration in dry conditions.
• Working up to 15cm deep.

Rollers

• EMOPAK: ideal for stale seed bed in soil requiring re-packing.
• Bar roller: simple and polyvalent in all types of soil.
