ID # 17271789

Great Plains Qualidisc

  • Great Plains Qualidisc
  • Great Plains Qualidisc
  • Great Plains Qualidisc
  • Great Plains Qualidisc
  • Great Plains Qualidisc
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Model Numbers

HS2200-13, HS2200-16, HS2200-20, HS2200-23

Product Description

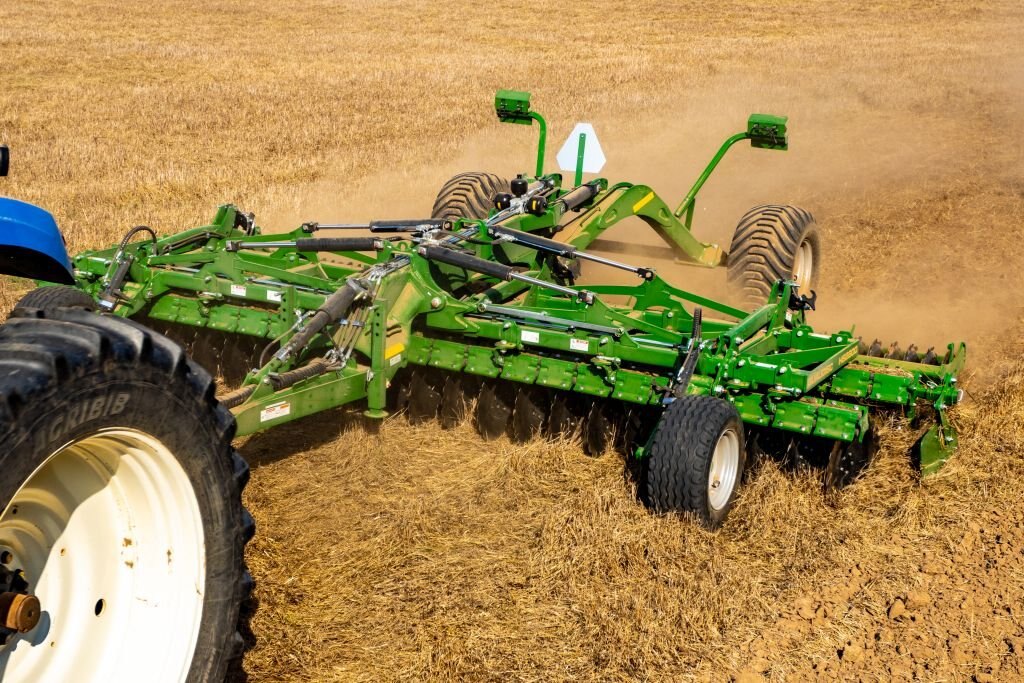

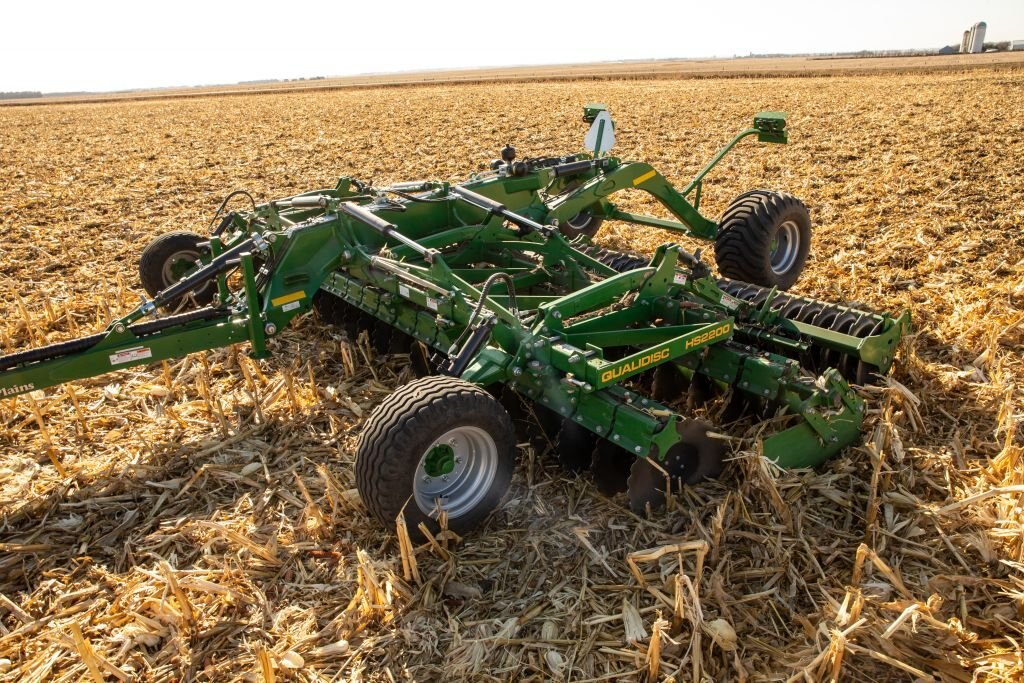

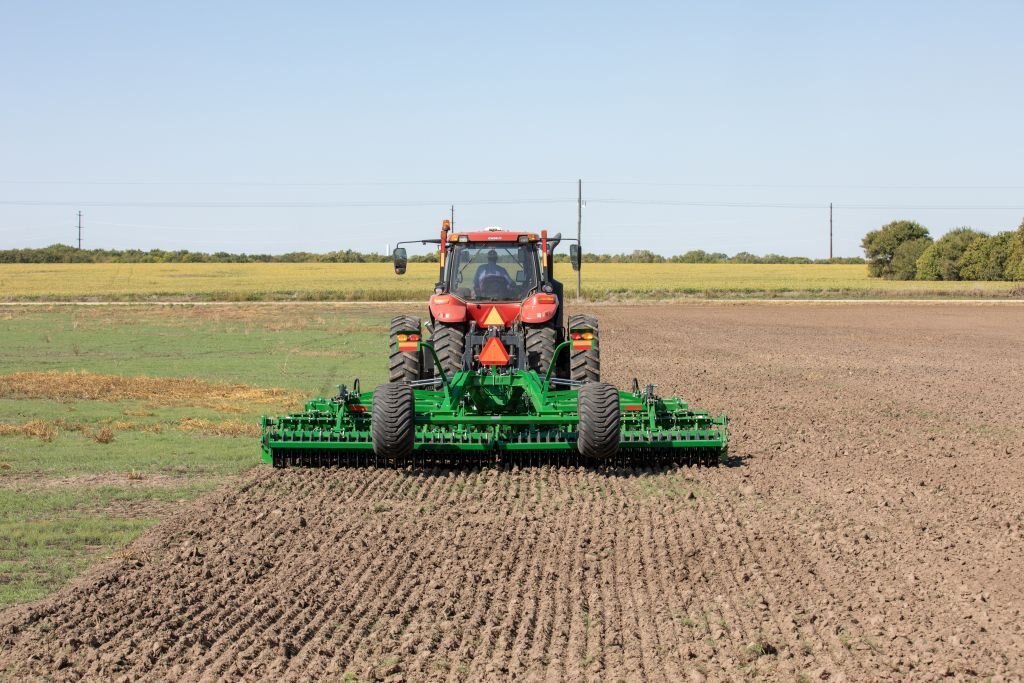

Qualidisc

The Qualidisc is a versatile, hybrid tillage tool built for speed! Operating at speeds up to 12 mph, the Qualidisc excels in sizing, mixing, and burying residue, while leaving a quality finish in as little as one or two passes. Its unique parallel lift design provides a consistent, level finish, coupled with a standard hydraulic depth adjustment that enhances the Qualidisc’s effectiveness and performance in a variety of field conditions.
Specifications
Model
Qualidisc
Category Name
Agriculture
Year
2021
Sale Type
New
Manufacturer
Great Plains
specs





MODEL INFO

 QUALIDISC
MODELS HS2200-13 HS2200-16 HS2200-20 HS2200-23

PTO H.P. REQ (min)

 150-250 170-300

190-350

210-400
NO. OF DISCS 32 40 48 56
DISC SPACING 9 3/4"
SAFETY DEVICE TYPE Disc mounted on independent arm with elastometer safety device
DISC HUB Angular contact ball bearing with 5-lip seal
DEPTH CONTROL By the roller with hydraulic adjustment by plastic chocks
WORKING DEPTH 1" - 6"
AVAILABLE ROLLERS Cage Roller, Actipack, Actiflex
ROLLER DIAMETER 21 1/2", 22", 23 5/8"
WORKING SPEED (mph) 5-12
MAXIMUM WEIGHT 9,674 lbs. 10,953 lbs. 12,483 lbs. 13,737 lbs.

DIMENSIONS

TILLAGE WIDTH

 13' 1" 16' 5"

19' 8"

22' 11"

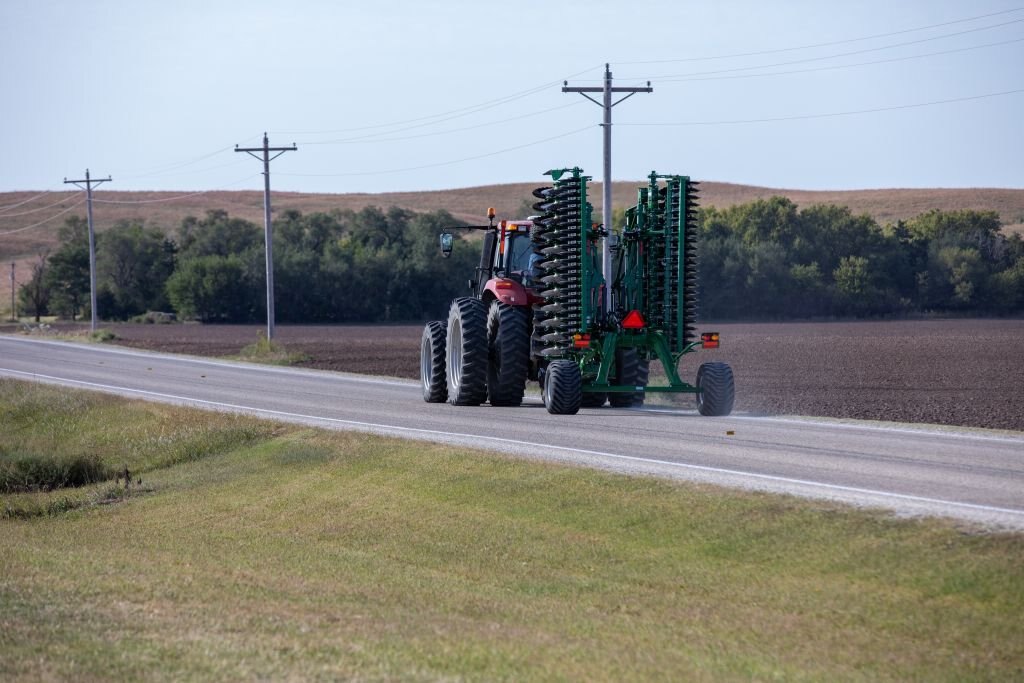

TRANSPORT WIDTH

 9' 9'

9'

9'

TRANSPORT HEIGHT

 9' 2" 10' 10"

12' 6"

13' 1"
OVERALL LENGTH WITHOUT HOPPER 22'
OVERALL LENGTH WITH HOPPER 27'
MAXIMUM HEIGHT 11' 6" 13' 1" 14' 9" 16' 5"
DISC DIAMETER 23.5"
DISC THICKNESS 1/4"









product features

Great Plains Meter Drive Zero-Max® Meter Drive

12-volt, 25-amp meter offers infinite rate adjustments.

Great Plains Ladder and Walkboard Ladder and Walkboard

For easy access to the seed hopper without climbing over the machine.

Great Plains Hose Kit Hose Kit

The Turbo-Seeder has 12 or 16 diffusers and 1-1/4" diameter hose for unrestricted air and seed flow.

Great Plains Solinoids Electric Solenoids

Provide section control on each half of the machine to avoid wasting seed on double-seeding.

Great Plains Easy-Fill Hopper Easy-Fill Hopper

Slide-away cover speeds and simplifies fills, and the large hoppers are ideal for even large-acreage operations.

Great Plains Diffuser Plate Diffuser Plate

Distributes the seed laterally and downward in even, 30" bands.

Great Plains Hydraulically-Driven Fan 8-gpm Hydraulically-Driven Fan

Achieves even seed distribution across the entire machine. Delivers seed to individual diffuser plates.
