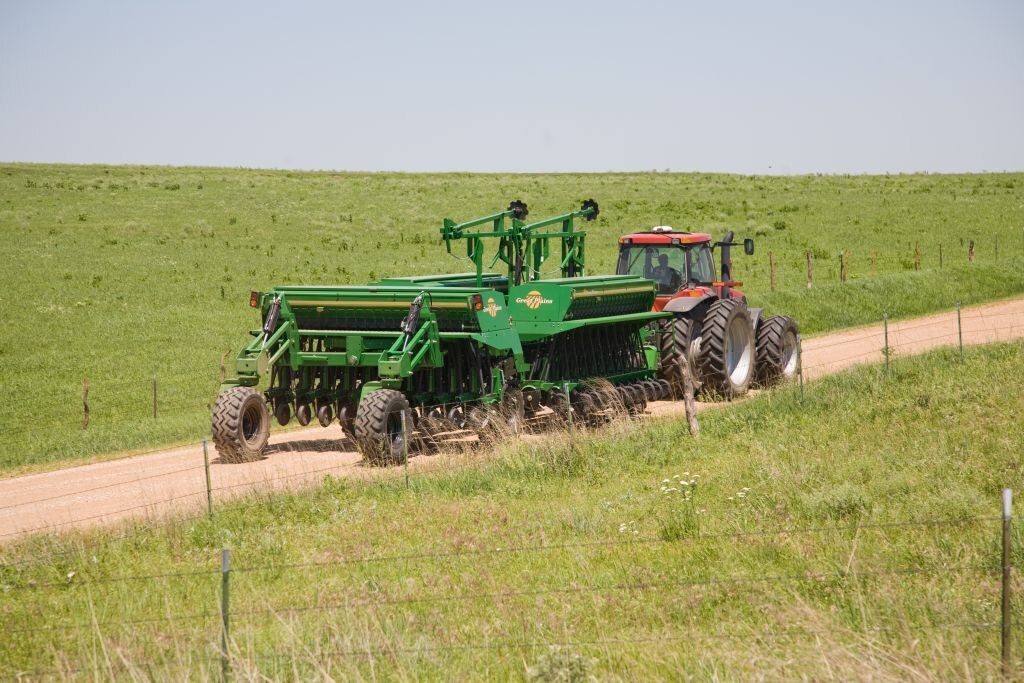

NARROW TRANSPORT

Folds to a narrow 15' transport width for safe road travel. Front gauge wheels rotate from planting position to the front for road transport.

FLOTATION TIRES

Six (6) 18 x 22.5 tires provide excellent flotation and reduced ground compaction in soggy fields.

FLOATING HITCH

Provides superior terrain following because the unit covers the terrain independently of the tongue.

Press Wheel Options

Single press wheel options include 3"x13" double rib*, 3"x13" center rib, or 2"x13" smooth. Double press wheels include 1"x12" double-V or 1.25"x13" wedge-style.

Lead Coulter Options

Choose between a wide ¾" wavy blade, a 5/8" Turbo coulter blade that is aggressive and prepares a mini seedbed ahead of the opener, or a 5/16" fluted coulter blade that penetrates easily to perform minimum tillage.

Coulter-Assisted Opener System

This system splits no-till seeding into two operations: penetration and seed placement. Preloaded at 450 lbs., frame-mounted coulters get the job done by working at the desired depth, ensuring optimum seed placement for a uniform stand. Increase coulter depth to penetrate hard, dry soils, or reduce coulter depth in soft conditions. This allows the 10HD Series parallel linkage, double-disc openers to properly place the seed. Seeding depth is set by the 18-position T-handle at the rear of the opener.

All Seed or Seed & Dry Fertilizer

Choose all seed or seed/fertilizer models. Fertilizer units let the operator partition off the large 3.2 bu./ft. seed box to get the best ratio of seed to fertilizer. Partitions include: 60% seed to 40% fertilizer, 68% seed to 32% fertilizer, or 55% seed to 45% fertilizer.

10HD Openers

Opener blades are 15" and offset ½", so the leading blade can provide clean cutting and easy penetration. Heavy, 4mm blades with 6-dimple flanges and 205 triple-lip seal bearings make these some of the toughest, most durable openers on the market.
