LOCK-OUT HUBS

Disengages all drive components, reducing wear and tear during transport.

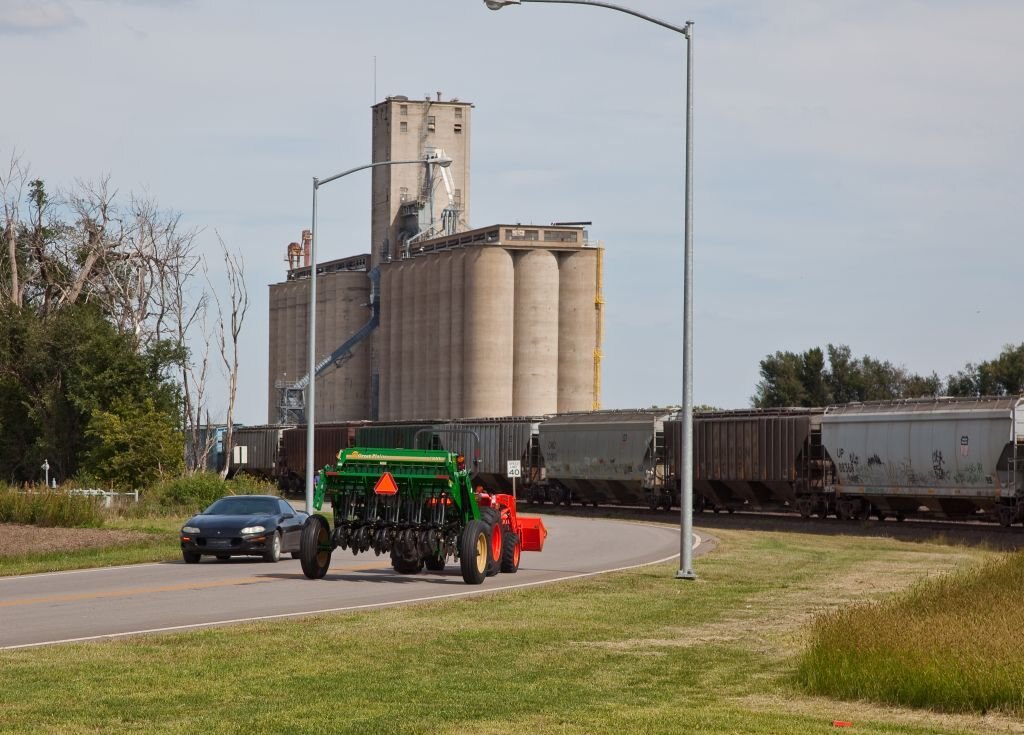

HIGH TRANSPORT CLEARANCE

With the high clearance and end wheel design, the 706NT can virtually go anywhere your tractor can pull it without gouging or bottoming out.

ADJUSTABLE HITCH HEIGHT

Six-position hitch adjusts to your tractor's hitch height to keep the drill level in planting position.

T-Handle Opener Depth Adjustment

Provides 18 different positions for accurate seed depth control.

Press Wheel Options

Choices include, from left, single 3"x13" double rib press wheels*; 3"x13" center rib press wheels; single 2"x13" smooth press wheels; 1"x12" double-V press wheels; or wedge-style press wheels that create a pinching action to close the trench.

Lead Coulter Options

Choose between a wide 3/4" wavy coulter, a 5/8" Turbo coulter blade that is aggressive and prepares a mini seedbed ahead of the opener, or a 5/16" fluted coulter blade that penetrates easily to perform minimum tillage.

End Wheel Design

Large end wheels stay on side hills and maintain accurate seed placement in undulating terrain. Lockout hubs save drive components from wear.

4-Speed Gearbox

Changing seed rates is quick and effortless with these permanently lubricated, sealed gearboxes

06 Series Opener

The 06 Series row unit utilizes the “Fluff and Plant” no-till system with an integrally-mounted coulter to cut residue and prepare a mini seedbed for the trailing double-disc opener. The opener discs are 13.5" in diameter and 4mm thick with 205 triple-lip sealed bearings, and ¼" opener disc lead. Our unique full-length seed tube design and trailing flap control the seed all the way to the bottom of the seed trench where the seed stays in place.
