Great Plains 3P806NT & 3P1006NT

  • Great Plains 3P806NT & 3P1006NT
  • Great Plains 3P806NT & 3P1006NT
  • Great Plains 3P806NT & 3P1006NT
  • Great Plains 3P806NT & 3P1006NT
  • Great Plains 3P806NT & 3P1006NT
  • Great Plains 3P806NT & 3P1006NT
  • Great Plains 3P806NT & 3P1006NT
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Model Numbers

3P806NT, 3P1006NT
Product Description
8' & 10' Mounted No-Till Compact Drills

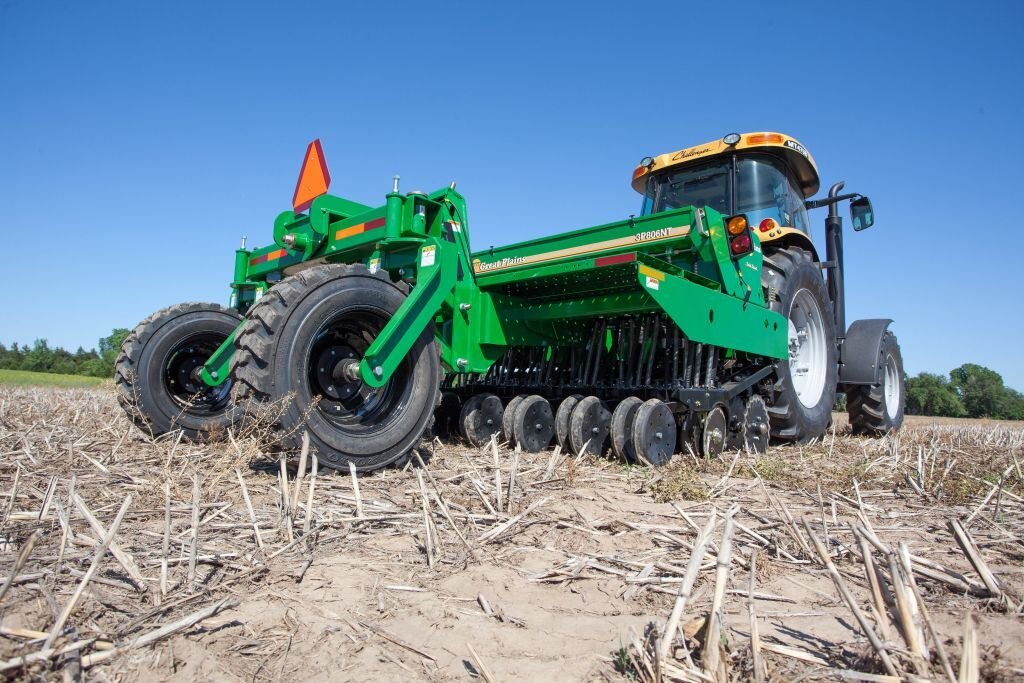

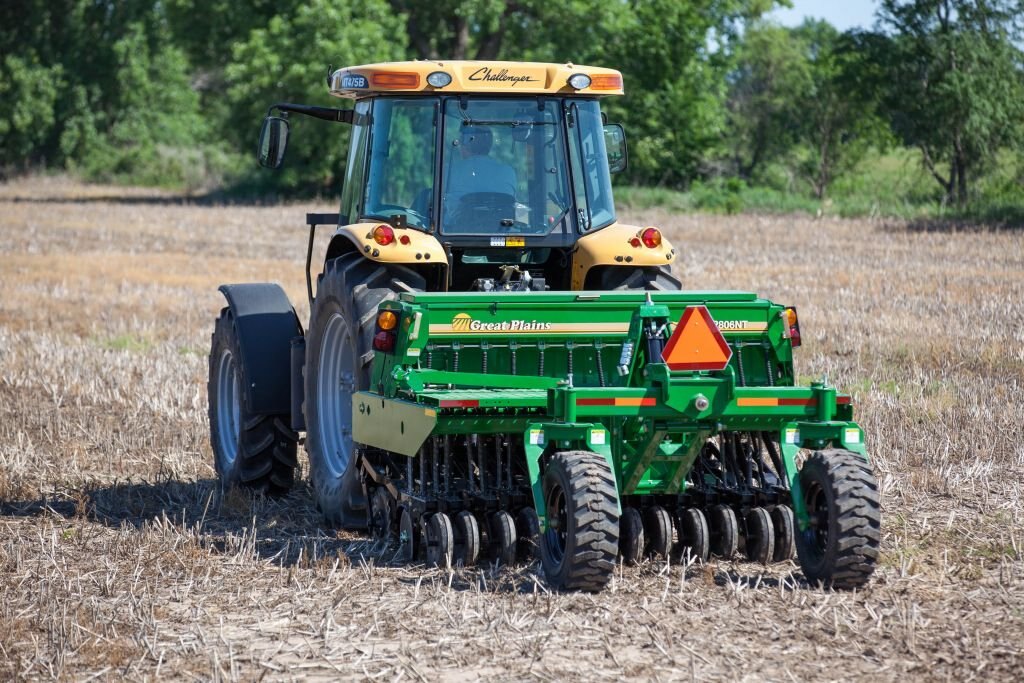

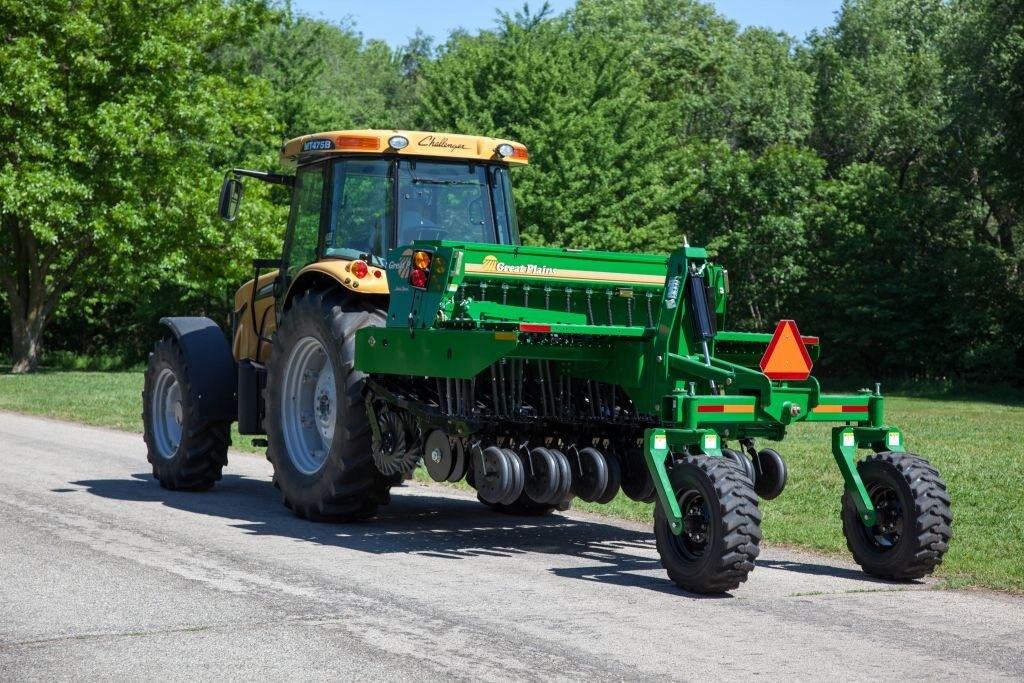

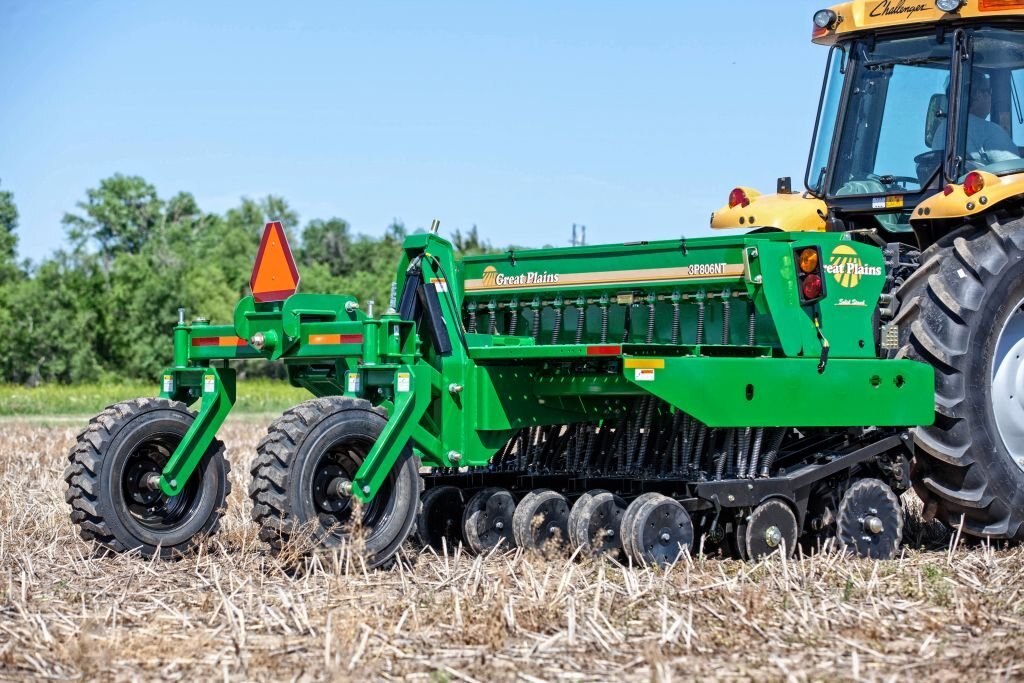

The Great Plains 3P806NT and 3P1006NT are 2-point mounted no-till drills with lift assist wheels to ensure safe operation and transport.

Both drills utilize 06 Series Openers to properly place seed. Coulters are pre-loaded to 450 pounds to ensure proper penetration, even in the toughest conditions. This spring-loaded coulter design adds stability and improved tracking on slopes. A double disc configuration and full-length seed tube ensure seed is consistently placed at the chosen depth. Depth is controlled by the 18-position T-handle press wheel adjustment.

Additional boxes are available for planting both native grass and small seeds. This allows up to three different seeds to be planted at separate rates and different depths at the same time.

Featuring a fluted feed design, the main seed box’s seeding rate is set with the four-speed transmission and adjustable gate opening. The optional native grass box meters seed with the field proven picker wheel, and rates are adjusted by varying the speed of the drive. Lastly, the optional small seeds attachment is a smaller version of the fluted feed system, and seeding rates are set by changing the opening of the fluted feed. The ground-drive system automatically disengages when lifted, simplifying the unit and enhancing its reliability.
 Product Features

Great Plains Walking TandemLIFT ASSIST

Two standard lift assist wheels in the rear of the 3P806NT & 3P1006NT provide greater lift capacity and assist the tractor's 3-point. Straddle axle caster wheels provide maneuverability and strength.

Great Plains Walking Tandem2-POINT WITH LIFT ASSIST

Allows for unmatched ground gauging in rough, rolling terrain while ensuring safe operation and transport.

Great Plains Walking TandemT-Handle Opener Depth Adjustment

Provides 18 different positions for accurate depth control.

Great Plains Walking TandemPress Wheel Options

Single press wheel choices include a 3"x13" double* or center rib or a 2"x13" smooth. Double press wheels include 1"x12" double-V or wedge.

Great Plains Walking TandemLead Coulter Options

Choose between a 5/8" Turbo coulter blade that is aggressive and prepares a mini seedbed ahead of the opener, or a 5/16" fluted coulter blade.

Great Plains Walking TandemCoulter Grease Bank

Lubricates coulter pivots from one location.

Great Plains Walking TandemCenter Drive Wheels

The center drive wheel(s) serve a dual purpose: to drive the metering systems and assist in controlling coulter depth.

Great Plains Walking Tandem 4-Speed Gearbox

Changing seed rates is quick and effortless with these permanently lubricated, sealed gearboxes.

Great Plains Walking Tandem 06 Series Opener

06 Series openers feature an integrally-mounted coulter and row unit combination with the opener moving independently of the coulter.
 Specifications



MODEL INFO

8' Mounted

10' Mounted

MODELS

3P806NT

3P1006NT

PRIMARY DESIGN

No-Till

ROW SPACINGS

7.5" (19.05 cm)

NUMBER OF OPENERS

13

15

TIRE SIZE

265/70B 16.5

265/70B 16.5

Hp REQUIREMENTS (min)

80+

100+

WEIGHT (Approx.)

4,054 - 4,500 lbs*
1,839 - 2,041 kg

4,820 - 6,388 lbs*
2,186 - 2,898 kg

DIMENSIONS

WORKING WIDTH

8' 3"
2.51 m

9' 5"
2.87 m

WIDTH

8' 3"
2.51 m

9' 11"
3.02 m

LENGTH (transport)

11'9" (3.76 m) w/ lift assist

12'4" (3.76 m) w/ lift assist

CLEARANCE (transport)

Varies by Tractor

HEIGHT (transport)

Varies by Tractor

OPENER INFO

OPENER SERIES

06 Series

06 Series

OPENER TRAVEL

6.5" (16.51 cm)

6.5" (16.51 cm)

OPENER DEPTH RANGE

0-3.5" (0-8.89 cm)

0-3.5" (0-8.89 cm)

OPENER DOWN PRESSURE

90-180 lbs (40.82-81.64 kg)

90-180 lbs (40.82-81.64 kg)

COULTER

5/8" Turbo or 5/16" Fluted

5/8" Turbo or 5/16" Fluted

COULTER PRE-LOAD

450 lbs (203 kg)

450 lbs (203 kg)

CAPACITIES

MAIN BOX CAPACITY

16 bu.
564 liter

25 bu.
881 liter

SMALL SEED BOX

1.9 bu.
67 liter

2.4 bu.
85 liter

NATIVE GRASS BOX

8 bu.
2.82 liter

10 bu.
352 liter

FERTILIZER

7.4 cu./ft.
210 liter

9.2 cu./ft.
261 liter

2ND MAIN BOX

8 bu.
282 liter

10 bu.
352 liter

* Weights based on 7-1/2" row spacing with main seedbox only. Weights will vary with options.
