Overview
Model Numbers

3P500, 3P500V, 3P600
Product Description

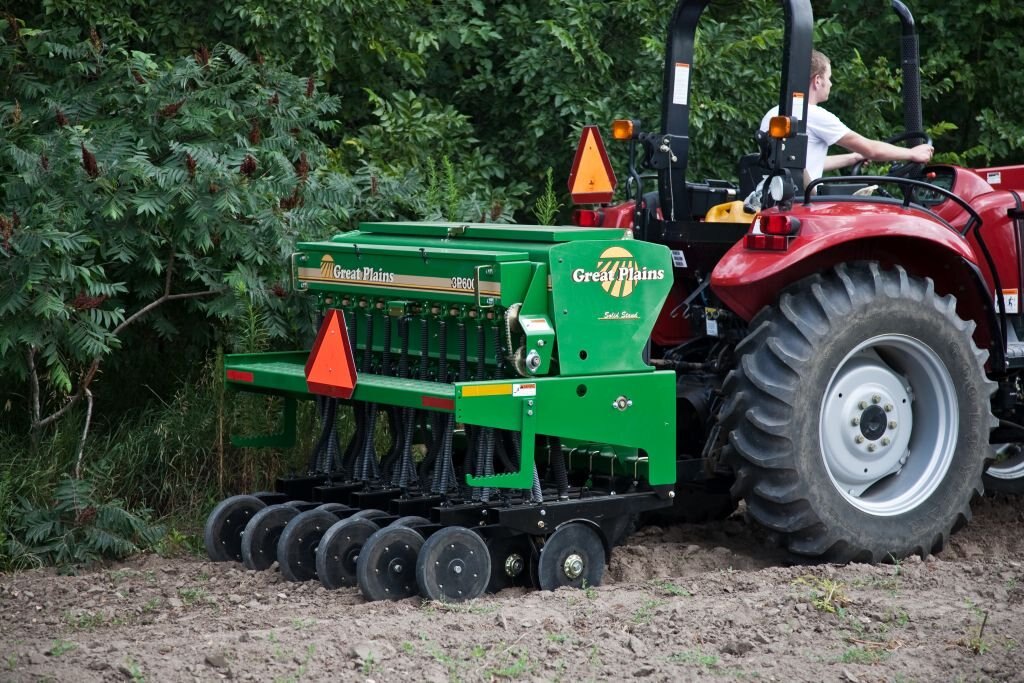

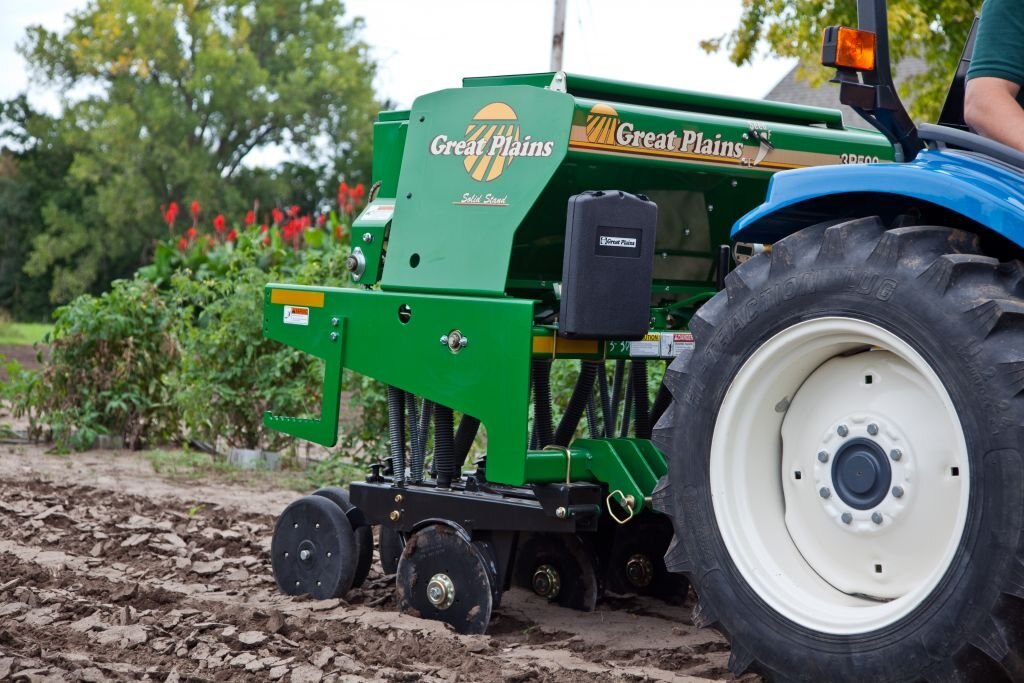

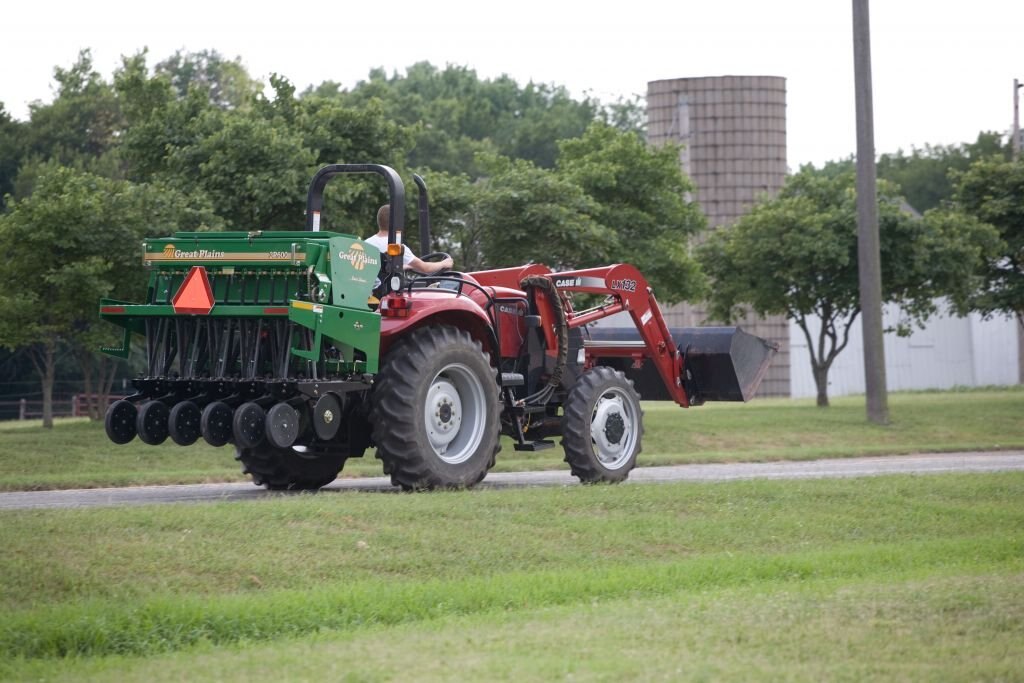

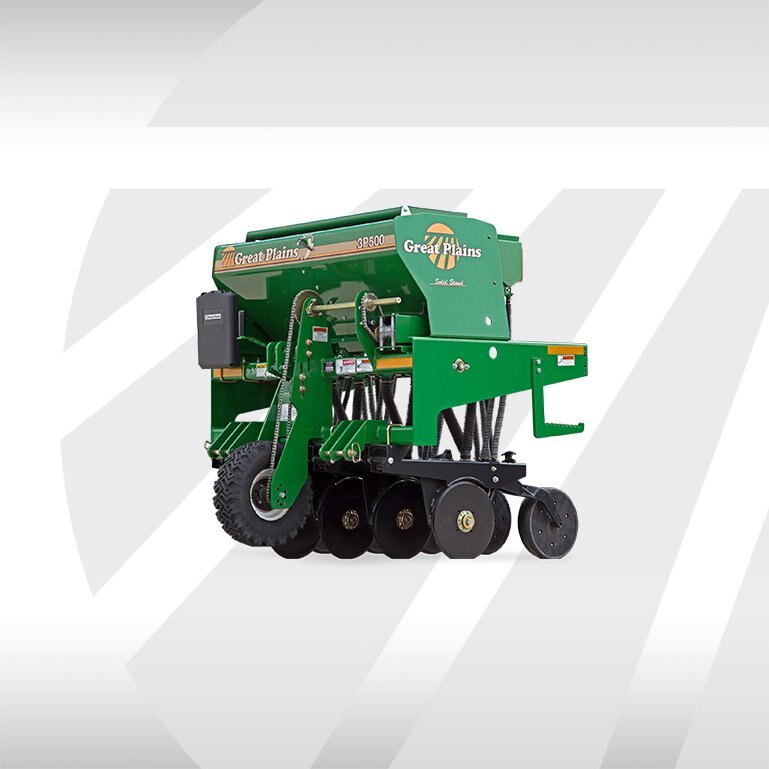

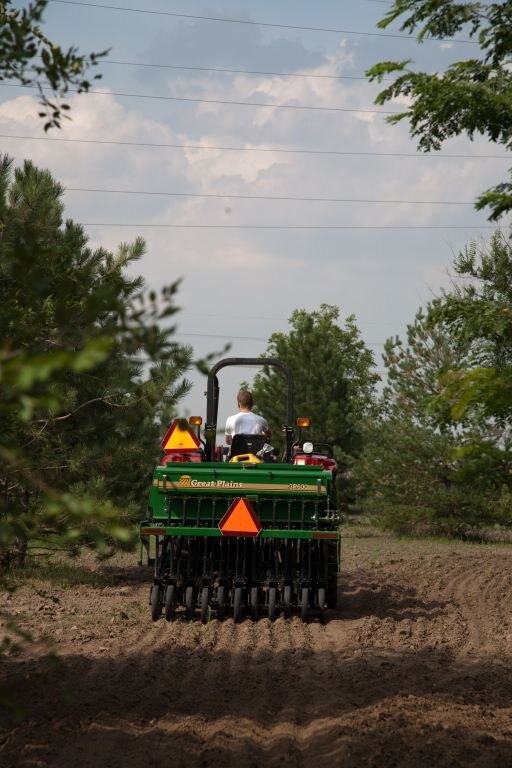

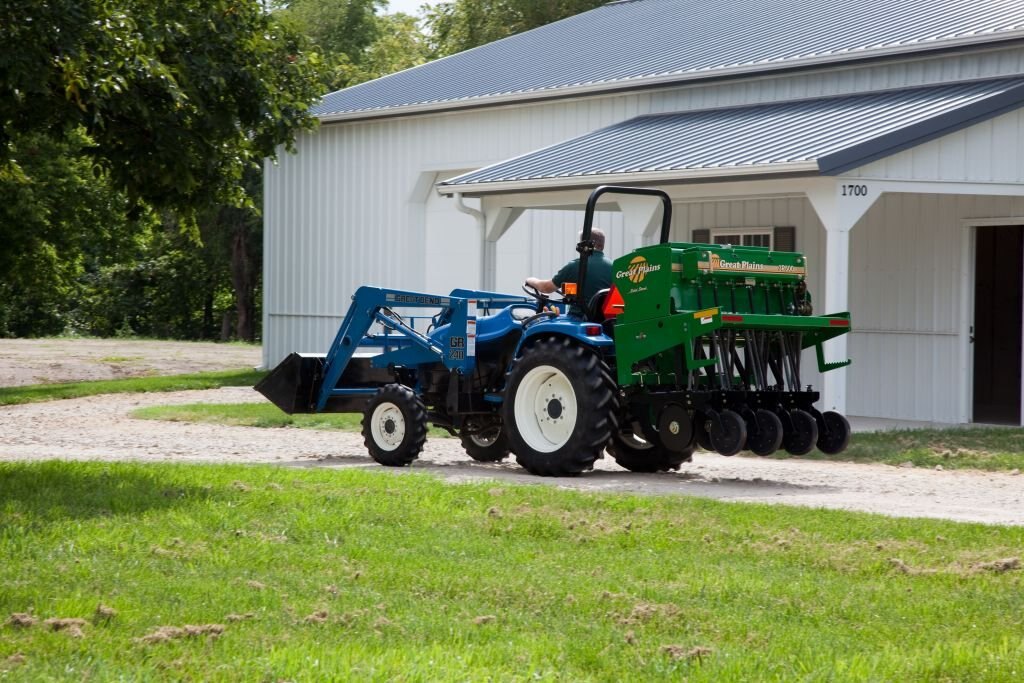

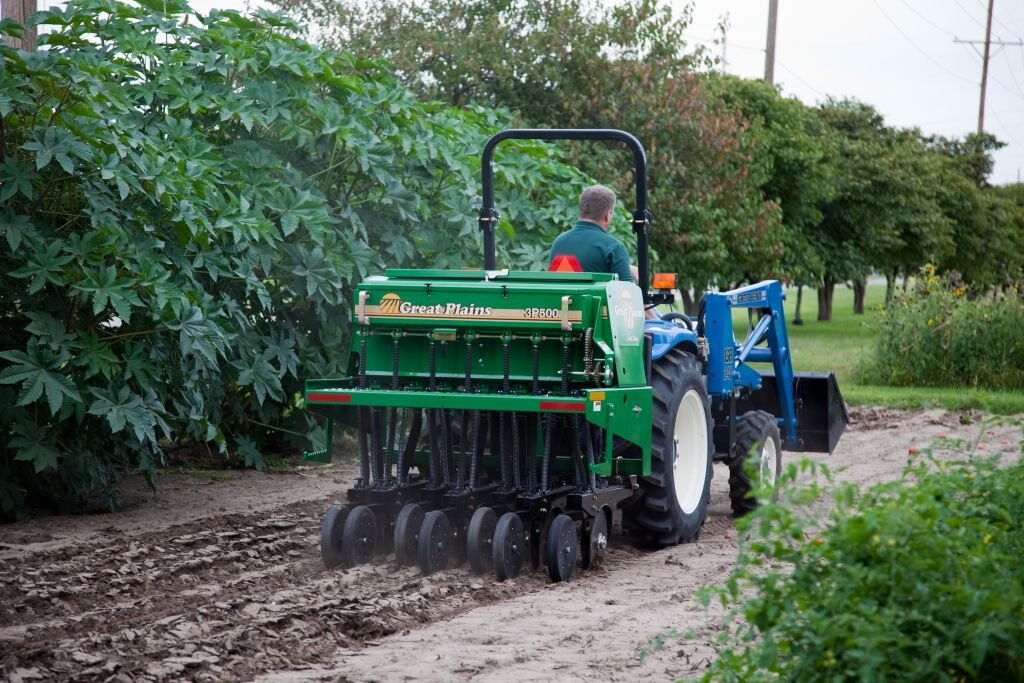

5' & 6' Mounted Min-Till Compact Drills

Designed for tight areas where big drills simply don’t fit, these 5' (1.52m) and 6' (1.83m) Min-Till Drills from Great Plains are ideal for seeding food plots, orchards, and vineyards. Offered with ground-driven meters, they are excellent for seeding into both fully prepared seedbeds or minimum tillage plots.

The 3P500 and 3P600 feature 4-speed gearboxes for fast seed rate changes. Seed box capacity ranges from 8.5 bushel to 12 bushel (300-423L), depending on model. By adding an optional small seeds box to the 3P500 or 3P600 models, two different seeds can be planted at the same time.

All models are equipped with rugged 00 Series Openers, which provide accurate and consistent seed placement. 00 Openers have 7" (18cm) of stagger, allowing residue to easily flow through the unit. Inside the opener, the full length seed tube gently guides the seed all the way to the bottom of the trench while the seed flap ensures the seed stays in place, eliminating the “seed bounce” experienced with competitive drills. The trailing press wheels maintain proper opener depth, close the seed trench, and firm the seed into the soil. T-handles quickly adjust the press wheels and allow for small incremental changes in planting depth.

Other features found on these models include a highly visible seed level indicator, reliably accurate fluted feed cups, and V-bottom inserts in the bottom of the seed box that enhance seed flow to the meters. Seed calibration is easy with the convenient calibration crank, and watertight lids stay open for easy filling, while splash guards on the small seeds box prevent seed loss.
 Product Features

Great Plains Walking TandemCategory I & II Hitch

Offers easy 3-point mounting on various types of tractors.

Great Plains Walking Tandem4-SPEED GEARBOX

Changing seed rates is quick and effortless with these permanently lubricated, sealed gearboxes.

Great Plains Walking TandemT-Handle Opener Depth Adjustment

Provides 18 different positions for accurate depth control.

Great Plains Walking TandemPress Wheel Choices

Choose either 3"x13" double rib*, 3"x13" center rib, or 2"x13" smooth press wheels.

Great Plains Walking TandemHeavy-Duty Coil Springs

Offer a range of 90 to 180 lbs. of consistent down pressure on openers.

Great Plains Walking TandemFluted Seed Cups

With powdered metal flutes, these 1¾" seed cups deliver outstanding accuracy.

Great Plains Walking TandemCenter-Mounted Drive Wheel

Eight settings allow the height of the ground drive wheel to be repositioned as needed.

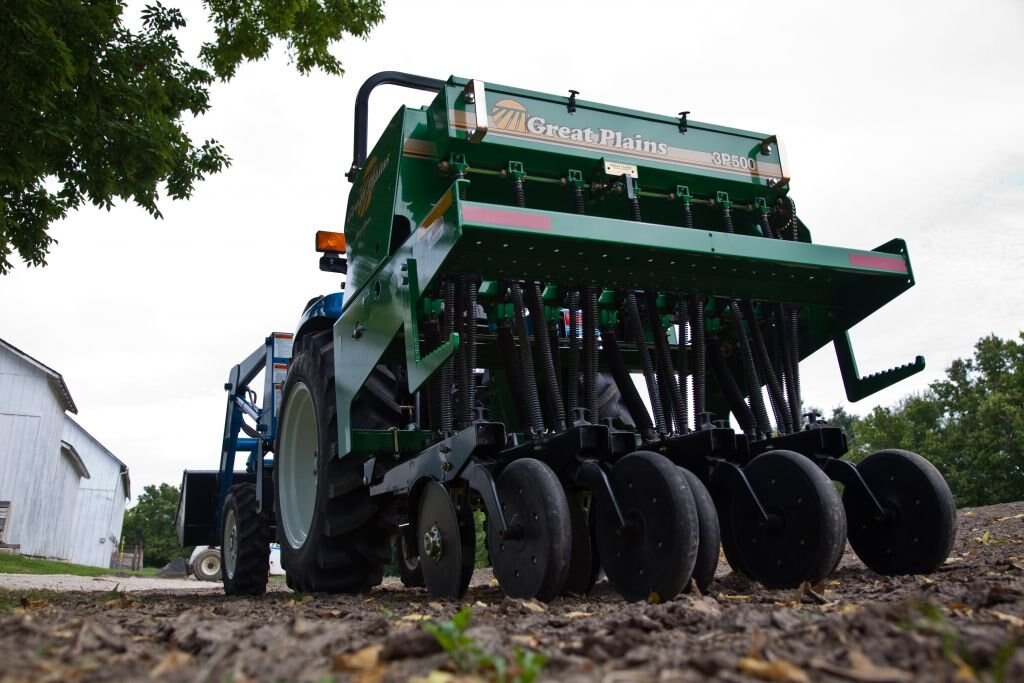

Great Plains Walking Tandem00 Series Opener

00 Series openers provide accurate and consistent seed placement. 00 Openers have 7" of stagger, allowing residue to easily flow through the unit. Inside the opener, the full-length seed tube gently guides the seed all the way to the bottom of the trench while the seed flap ensures the seed stays in place, eliminating the “seed bounce” experienced with competitive drills. The trailing press wheels maintain proper opener depth, close the seed trench, and firm the seed into the soil.
 Specifications

MODEL INFO

5' Mounted

 5' Mounted 6' Mounted

MODELS

3P500

 3P500V 3P600

PRIMARY DESIGN

Min-Till

ROW SPACINGS

6" (15.24 cm)

7.5" (19.05 cm)

6" (15.24 cm)

7.25" (18 cm)

7.5" (19.05 cm)

6" (15.24 cm)

7.5" (19.05 cm)

NUMBER OF OPENERS

9 - 6" spacing

7 - 7.5" spacing

9 - 6" spacing

8 - 7.25" spacing

7 - 7.5" spacing

11 - 6" spacing

9 - 7.5" spacing

TIRE SIZE

5.70Lx8

 5.70Lx8 5.70Lx8

ENGINE HP REQUIREMENTS (min)

35+

 35+ 40+

WEIGHT (Approx.)

1,170 - 1,370 lbs*

 1,100 - 1,300 lbs* 1,466 - 1,586 lbs*

DIMENSIONS

WORKING WIDTH

52.5" (1.33 m)

 52.5" - 58"(1.33 - 1.4 m) 67.5" (1.71 m)

WIDTH

59.3" (1.5 m)

 58" (1.47 m) 74.1" (1.9 m)

LENGTH (transport)

57" (145 cm)

 57" (145 cm) 57" (145 cm)

CLEARANCE (transport)

Varies by Tractor

HEIGHT (transport)

Varies by Tractor

OPENER INFO

OPENER SERIES

00 Series

 00 Series 00 Series

OPENER TRAVEL

6.5" (16.51 cm)

 6.5" (16.51 cm) 6.5" (16.51 cm)

OPENER DEPTH RANGE

0-3.5" (0-8.89 cm)

 0-3.5" (0-8.89 cm) 0-3.5" (0-8.89 cm)

OPENER DOWN PRESSURE

90-180 lbs (40.82-81.64 kg)

 90-180 lbs (40.82-81.64 kg) 90-180 lbs (40.82-81.64 kg)

COULTER

N/A

 N/A N/A

COULTER PRE-LOAD

N/A

 N/A N/A

CAPACITIES

MAIN BOX CAPACITY

10 bu.
(352L)

 8.5 bu.
(300L)		 12 bu.
423L)

SMALL SEED BOX

1 bu.
(35L)

 N/A

1 bu.
(35L)

NATIVE GRASS BOX

N/A

 N/A N/A

FERTILIZER

N/A

 N/A N/A

2ND MAIN BOX

N/A

 N/A N/A
* Weights based on 7-1/2" row spacing with main seedbox only. Weights will vary with options.
