Model Numbers
NTS2507, NTS2509, NTS2511, NTS2607, NTS2609, NTS2611 |
Product Description
7', 9', & 11' Seeders
The NTS25 and NTS26 Series No-Till Seeder, available in 7', 9', and 11' widths, makes quick work of renovating pastures, reclaiming rights-of-way, and planting food plots.
Designed with ease of use in mind, the NTS25 and NTS26 Series Seeder comes with a variety of built-in features. Metering is ground-driven by the rear packer-roller. Any of the seed boxes can easily be disengaged with simple lockout pins on each drive sprocket, or all the boxes can be locked out with one pin on the main sprocket.

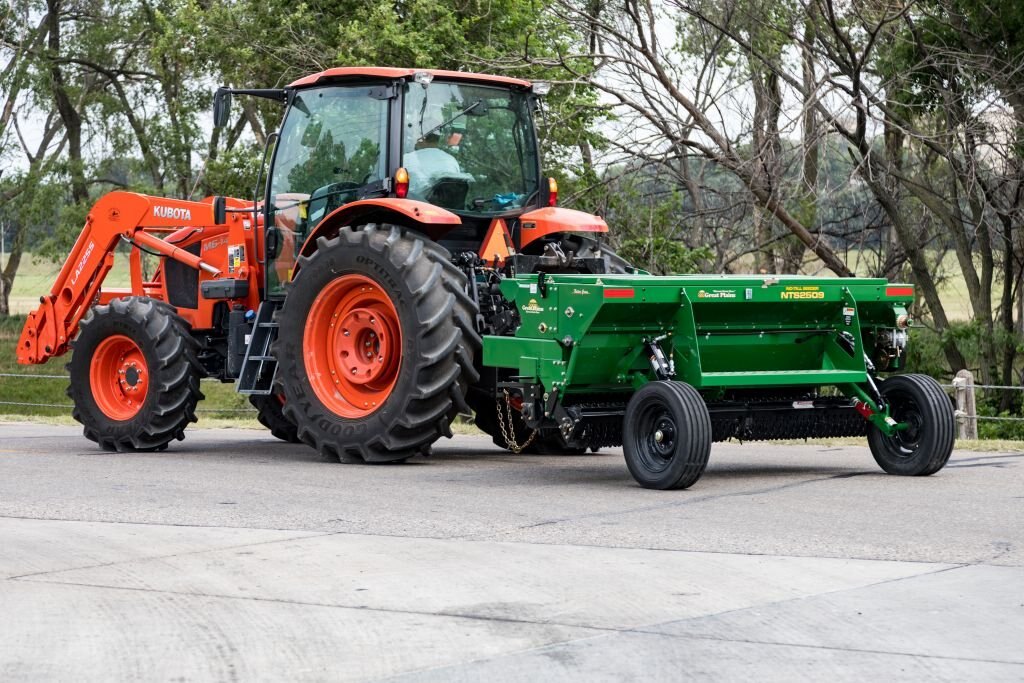

This American-made seeder comes standard with a main and small seeds box, with an optional factory-installed native grass (or fluffy) seed box available. The NTS is offered as a 3-point model or pull-type model with transport wheels.
The main seed meters are set by adjusting sprocket transmission and the seed cup flutes with the seed-rate regulator. The small seeds meters are set by adjusting the seed cup flutes with the seed-rate regulator. The optional native grass meter is set with a 4-speed gearbox and sprocket transmission (NTS25 Series) or a 3-speed transmission (NTS26 Series). The NTS’s tillage aggressiveness is controlled by angling the front spiked rollers. Protected by a metal wind shield, seed is directed to the ground below and gently pressed into the soil with the rear cast packer. An optional acremeter keeps track of acres planted. |
|
Product Features |
|

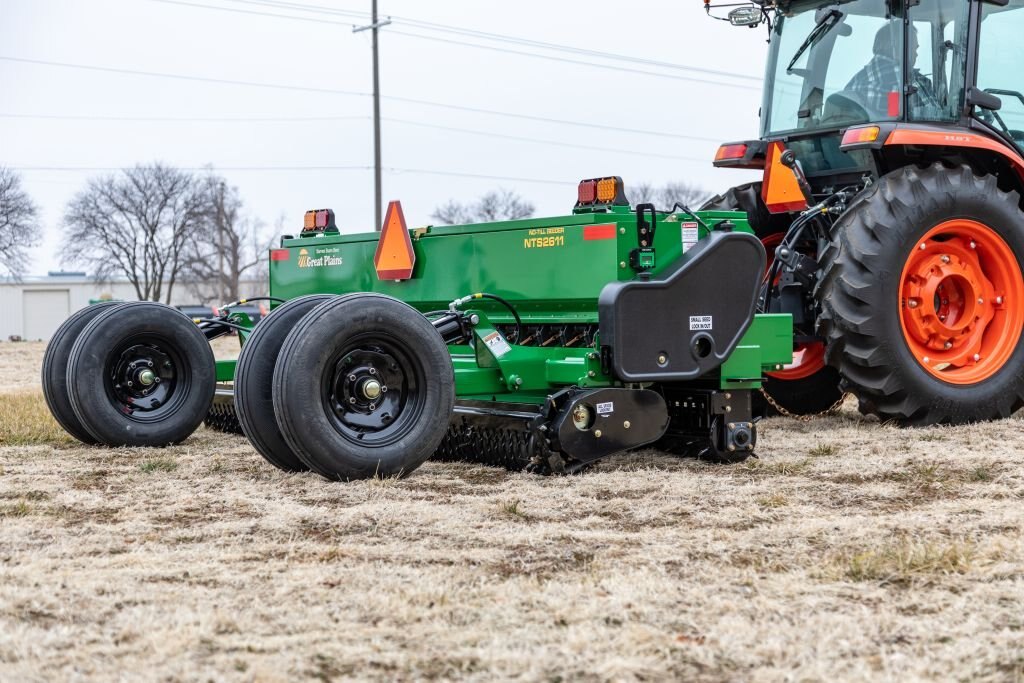

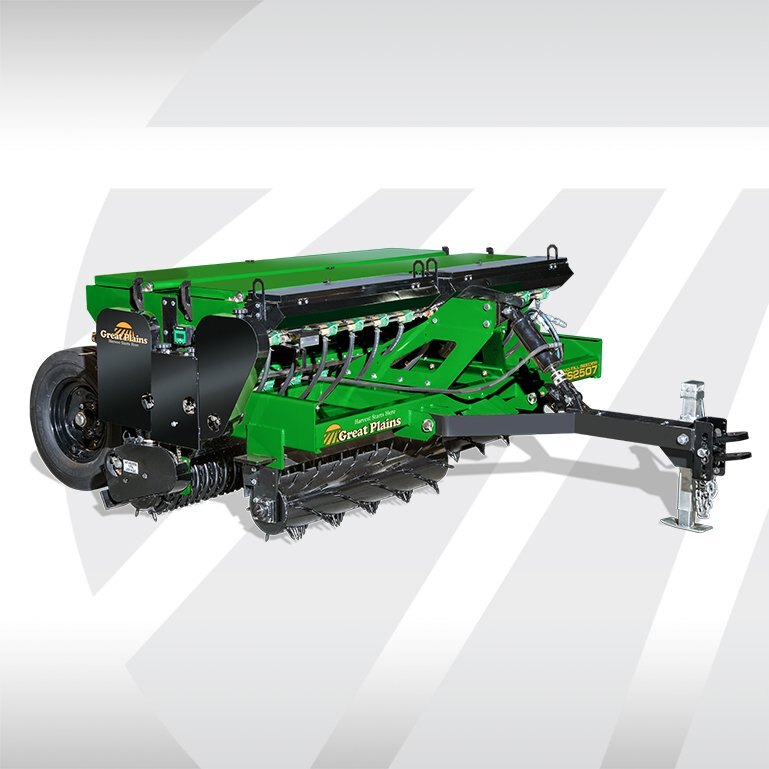

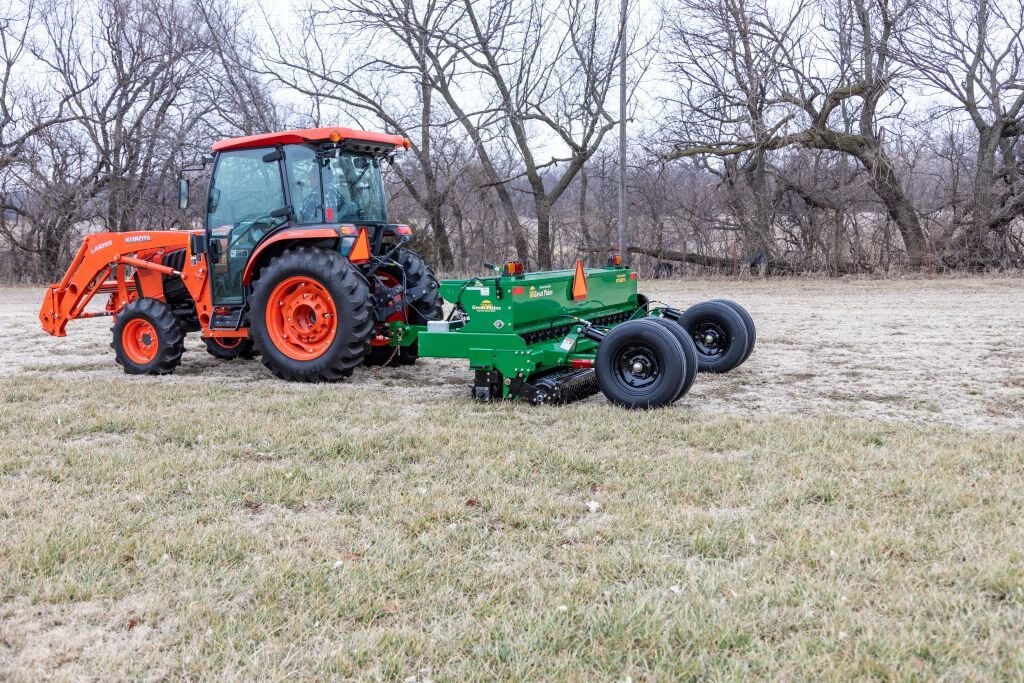

Pull-Type or 3-Point Mounted Options
The unique design allows the machine to be converted from a 3-point to a pull-type by adding a tongue and hydraulic gauge wheels. |
|
Native Grass Agitators
Optional native grass box uses agitators to keep the seed flowing toward the picker wheel. |
|
Native Grass
The optional native grass seed box is equipped with a walk board to make filling the main box easier. |
|
Mud Scrapers
Placed on the rear packer roller to keep soil from compacting on roller in damp conditions. |
|
Manually-Adjustable Front Roller
Controls how aggressively soil is prepped for the seedbed. Can be run with minimum soil disturbance or set to a more aggressive angle for more tillage. |
|
Lockout Clutch
Easily disengage drive sprockets with Great Plains' patent-pending lockout clutch on all boxes. |
|

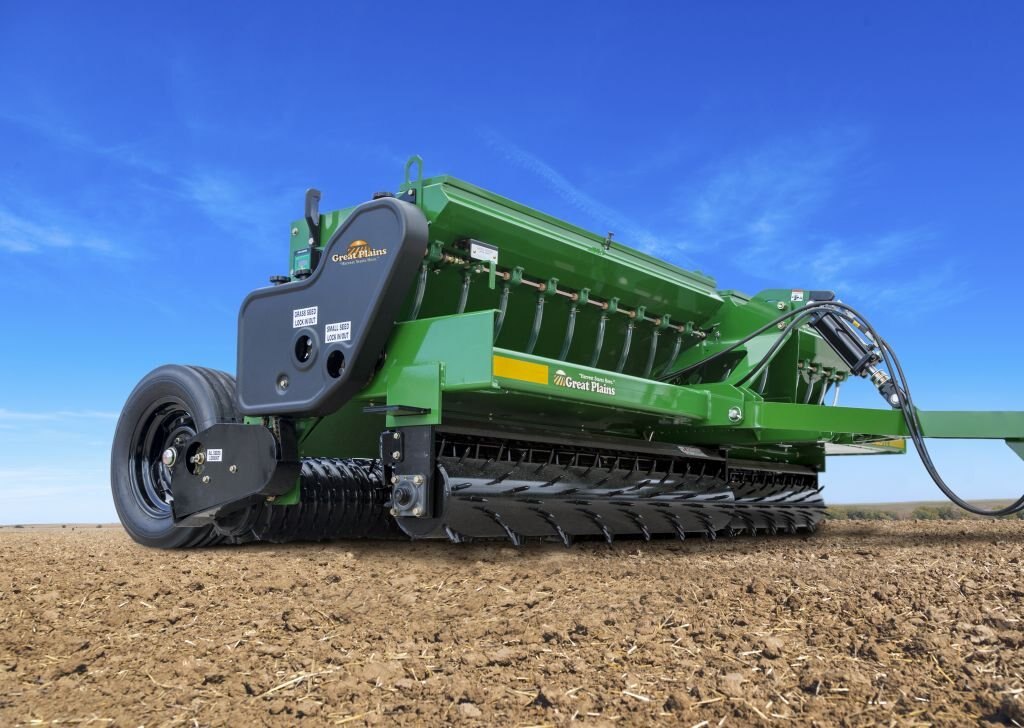

Ground-Driven with Ground-Engaging Roller
The rear packer (roller) utilizes spikes to drive the metering unit while firming seed in place. |
|

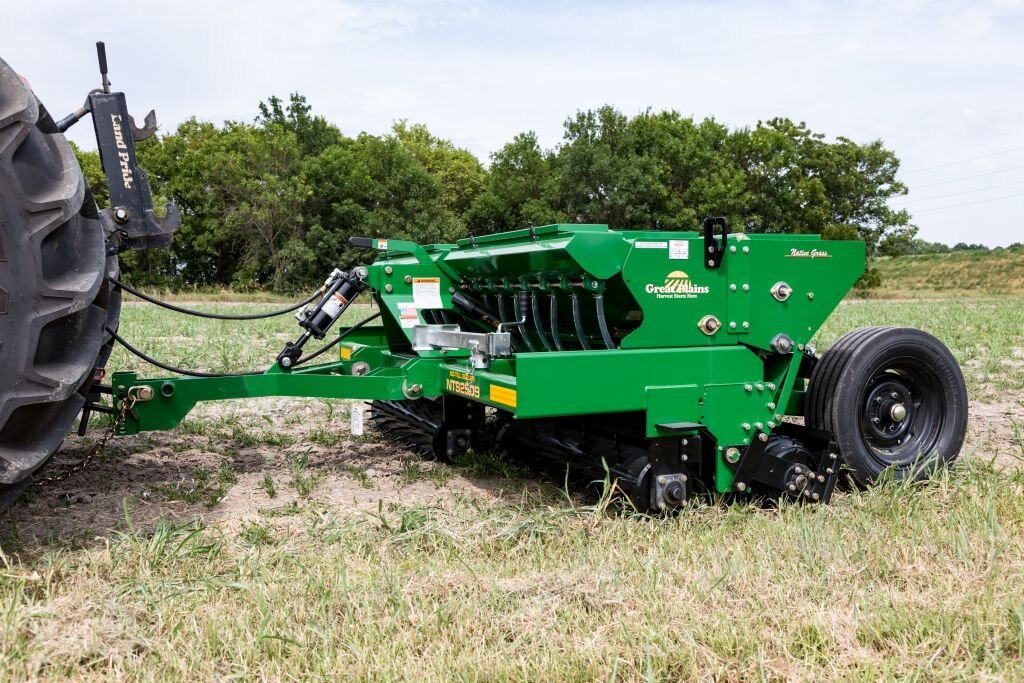

Available with Two Boxes or Optional Third Box
Standard is a regular seed box and a small seeds box. An optional native grass box can be factory-installed to seed warm-season, fluffy grasses. |
|
Specifications |
|
MODEL INFO |
No-Till Seeder |
|
MODELS |
NTS2507, NTS2607 |
NTS2509, NTS2609 |
NTS2511, NTS2611 |
|
ENGINE HORSEPOWER |
40-60 |
50-85 |
60-110 |
|
HITCH |
3-Point, Cat. I or II or Pull-Type with transport wheels |
|
WORKING WIDTH |
7' 2" |
8' 4" |
10' 9" |
| TRANSPORT WIDTH |
8' 1" |
9' 3" |
11' 7" |
|
LENGTH |
4' 9" (3pt.), 11' 1" (pull-type) |
|
HEIGHT |
42" |
|
WEIGHT 3-PT LBS. |
1,878-2,800 |
2,090-3,123 |
2,650-3,800 |
|
MAIN BOX CAPACITY |
7.5 bu. |
8.8 bu. |
11.3 bu. |
|
SMALL SEEDS BOX |
1.7 bu. |
2.0 bu. |
2.6 bu. |
|
NATIVE GRASS BOX |
8.5 bu. |
9.8 bu. |
12.7 bu. |
|
OUTPUT |
Varies by seed, drop spread |
|
FRONT ROLLERS |
8-5/8" diameter, 1" spindles with greaseable ball bearings |
|
FRONT ROLLER ANGLE |
Up to 18 degrees |
|
FRONT ROLLER SPIKES |
1/2" x 2", Heat-treated steel, replaceable, 5/8" x 2", Heat-treated steel, replaceable |
|
REAR PACKER ROLLER |
11-3/8" diameter, cast and notched gray iron rings |
|
SEED CUPS-MAIN BOX and SMALL SEEDS BOX (EACH BOX) |
12 |
14 |
18 | |
