ID # 15521645

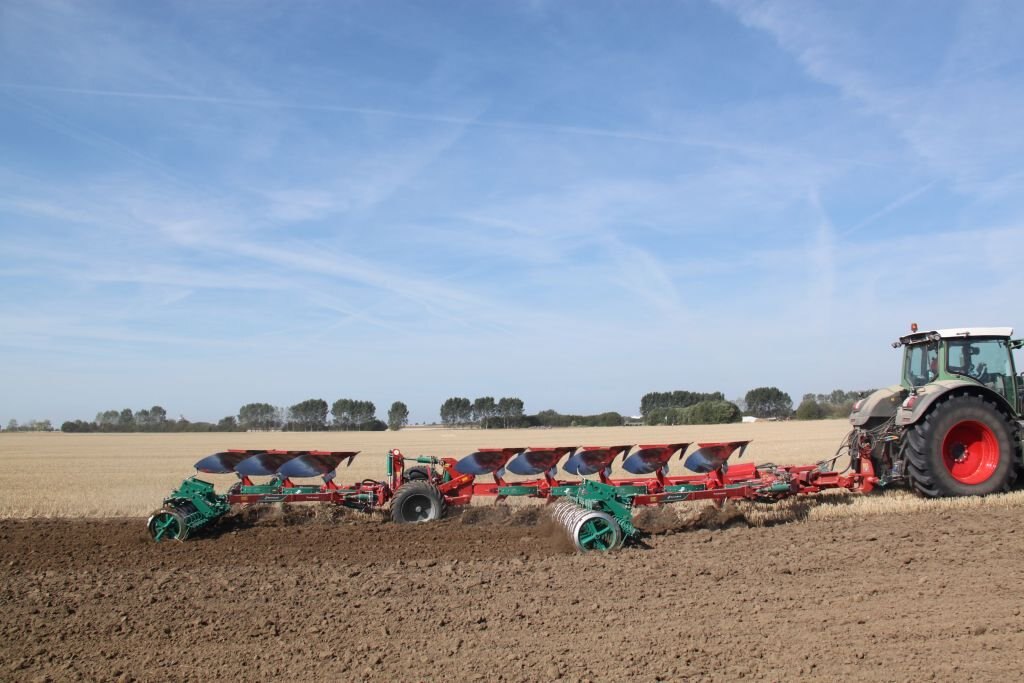

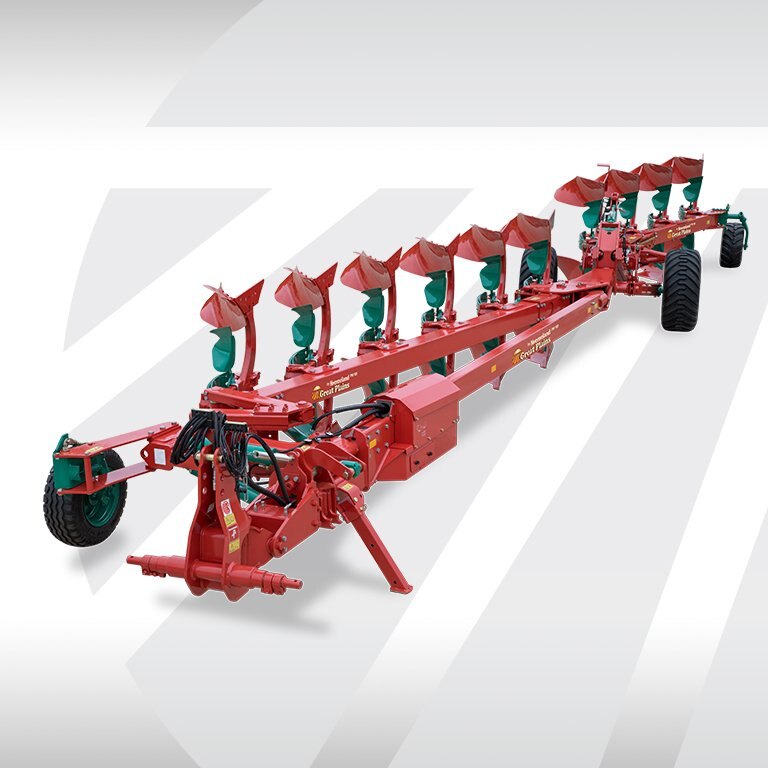

Great Plains PW Series Plow

  • Great Plains PW Series Plow
  • Great Plains PW Series Plow
  • Video Button Hqdefault
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Model Numbers

PW-100 Series with Variomat®
Product Description
7-10 Furrows

The PW-100 Series “3 in 1” plows consist of a robust semi-mounted reversible plow in the front and a mounted reversible plow at the rear.

This unique design offers the flexibility to choose the right combination to suit any soil condition: use the entire plow or utilize only the front or rear plow sections.

In some situations, it may be advantageous to use only the front section, such as, in very wet or very hard conditions, or due to the size of the available tractor. The heavy front section alone will provide optimum performance in any condition. Conversely, it may be beneficial to use only the rear section as a normal mounted plow for smaller areas or headlands.

The rear plow can be uncoupled and ready to use alone within a few minutes. Likewise, it only takes a short time to join the two sections back together.

Thanks to the center section’s three-point linkage system, PW-100 Series plows operate like standard mounted plows, following ground undulations smoothly. With Kverneland’s Variomat® system, furrow width adjustments are made on-the-go from the tractor’s seat. Adjustments can be made from 14" to 20".

To meet individual plowing preferences, choose one of two hitch options: long offset or short offset/in-furrow. The long offset allows on-land operation only and is compatible with track/tire spacing up to 14' 9" wide. The short offset hitch offers the flexibility of either on-land or in-furrow plowing and is compatible with track/tire spacing up to 10' 6" wide.
 Product Features

Great Plains Walking TandemVariomat

Variomat® allows quick and easy plow bottom working width changes from 14" to 20" from the tractor cab, even on the go.

Great Plains Walking TandemPackomat (Optional)

The Packomat Finishing System makes plowing more efficient: plow, level, and recompact all in one pass. Right after plowing, the Packomat re-establishes the soil structure.

Great Plains Walking TandemHeat Treatment

This allows the steel to withstand the toughest conditions and be more robust.

Great Plains Walking TandemAuto-Turnover System (ATS)

When equipped with ATS, the plow is easy to operate and turn on headlands. It is only necessary to lift the three-point hitch and then cycle through the three-stage reversing process–all through the use of a single button in the cab. From there, all reversing functions operate automatically, saving time and reducing operator fatigue.

Great Plains Walking TandemAuto-Reset

A fully automatic non-stop Auto-Reset System is vital to trouble-free plowing in stony conditions. The simple multi-leaf spring system allows the plow beams to release over stones and other solid objects in a smooth and efficient manner. Once the plow has passed by the obstruction, the plow body automatically returns to the correct plowing depth.
 Specifications

MODELS

 PW-100 Series with Variomat®

NUMBER OF FURROWS

7 (4+3)

 8 (5+3)

9 (6+3)

 10 (6+4)

TYPE OF BEAM

Automatic

LIFT REQUIREMENTS (lbs.)

N/A

WEIGHT (approx lbs)

11,354

 12,412

13,558

 14,617

ENGINE H.P. REQ (min)

210+

 240+

270+

 300+

DIMENSIONS

FURROW WIDTH

14"-20"

INTERBODY CLEARANCE

39"

UNDERBEAM CLEARANCE

30"



Specifications
Model
PW Series Plow
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
Great Plains
